Name: Strong Construction High Power LED Street Light S4 Series 150LPW For Roadway
Brand: Dualrays
SKU: S4 Series
Rating: 4.6 (108 reviews)

Home Products Outdoor LED Street Lights

Strong Construction High Power LED Street Light S4 Series 150LPW For Roadway

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Dualrays
Certification:	CE,RoHS,TUV/GS,LM79,LM80
Model Number:	S4 Series

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiated
Packaging Details:	Netural Package,color box package
Delivery Time:	5-15 business days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30000PCS/Month

Contact Now

Detailed Product Description

Input Voltage:	AC100V-277V	System Efficiency/LPW:	150LPW
Power Factor:	0.95	Junction Temperature:	<80℃
CRI:	>80Ra (>70Ra For Option)	Finishing Color(Optional):	Black RAL9017 / White RAL9016
Highlight:	warm white led street lights , decorative street light

Strong Construction High Power LED Street Light S4 Series 150LPW For Roadway

Detailed Product Description

Material:	Aluminium Alloy+PC	LEDs Light Source:	SMD5050
System Efficiency/LPW:	150LPW	Power:	30W/60W/90W/120W/150W/180W
CRI:	>80Ra	SDCM:	<6
Dimming(Optional):	0/1-10V/PWM/DALI/Zigbee	CCT:	3000K/4000K/5000K/5700K/6500K
Finishing Color(Optional):	Black RAL9017 / White RAL9016	Beam Angle(Optional):	Type I,Type II,Type III,Type IV,Type V

Aluminium Alloy Outdoor LED Street Lights 30W IP66 150LPW Efficiency AC100-277V 50-60Hz

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> Driver and housing separated by spacers;

> Intelligent dimming control available,photocell controller is available;

> Easy to disassemble and assemble, don't need any additional tools;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

* Avenues.

* Walkways.

* Roadway.

* Public Square.

* Parking lot.

* School.
* Sport and Stadium.

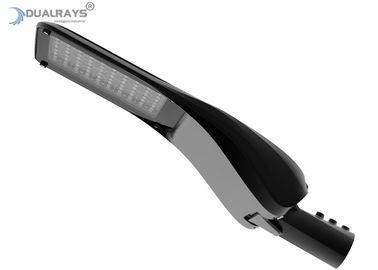

30W/60W Version
LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

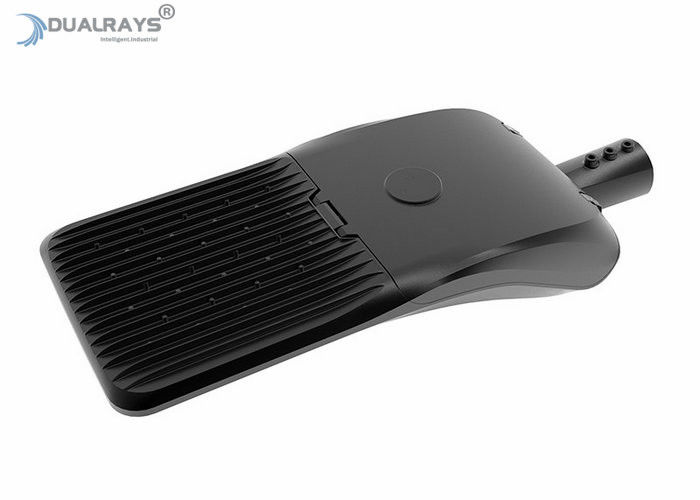

90W,120W/150W/180W Version

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface

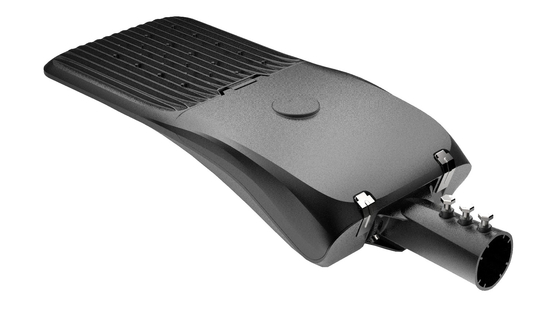

LUMILEDS LUXEON LEDs Outdoor LED Street Lights Aluminum Housing

Packaging Information

Shipment

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Q1: What is the warranty for the LED street light?

RE: For the LED street light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?

RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:

Warm white = 3000±200K

Natural white = 4000±200K

Pure white = 5000±200K

Cool white = 5700±200K

Q3: Is there a MOQ?

RE: 2PCS

Q4: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q7: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q8: What‘re the chips and drivers used?

RE: High brightness NICHIA LEDs light source,Meanwell drivers for standard configuration.

Q9: What Optics available?

RE: LED Street Light: Type I, Type II, Type III, Type IV, Type V for option.

Q10: What is the CRI?

RE: Ra>70, Ra>80 optional.

Q11: IP Rating?

RE: IP66.

Q12: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q13: Finish color?

RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.

Q14: Dimming functions?

RE: 1-10V / PWM / Resistance / Timer/ DALI dimmable driver available.

Q15: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q16:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
