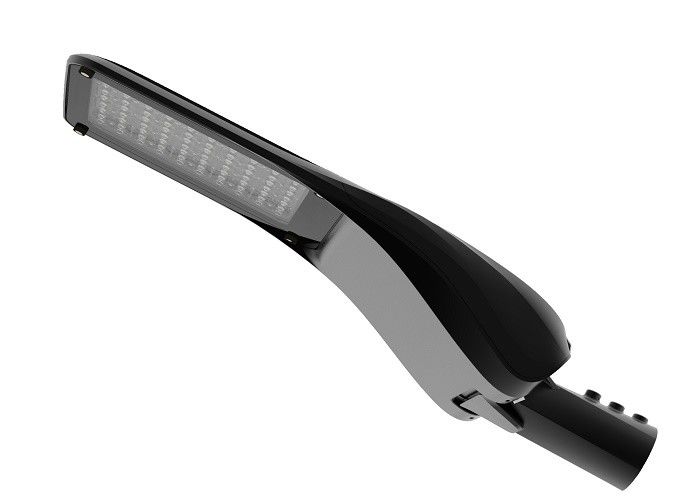

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum

  • LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum
  • LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum
  • LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum
  • LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS/OEM
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-ST150-DG1
Payment & Shipping Terms:
Minimum Order Quantity: 2PCS
Price: Negotiated After Inquiry
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 bussiness day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Material: Aluminum+PC+Toughened Glass Input Voltage: AC100~277V 50/60Hz
Power: 150W Lumen: 18.000~22.500lm±5%
CCT: 3000/4000/5700/6500K±200K Power Factor: >0.95
CRI: >70Ra (>80Ra For Option) IP Rating: IP66
Warranty: 5 Years Warranty,7 Or 10 Years Warranty Negotiated Application: Roadways / Avenues / Parking Lot / Playground
High Light:

warm white led street lights

,

decorative street light

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum





LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 0
Model No. DR-ST030-DGX DR-ST060-DGX DR-ST090-DGX DR-ST120-DGX DR-ST150-DGX DR-ST180-DGX
System Watts/W 30W 60W 90W 120W 150W 180W
System Efficiency/LPW 120LPW/150LPW (Optional)
Rated Input Voltage/V AC100~277V 50/60Hz
Lumen Output/lm 3.600~4.500±5% 7.200~9.000±5% 10.800~13.500±5% 14.400~18.000±5% 18.000~22.500±5% 21.600~27.000±5%
Finishing Color(Optional) Black RAL9017 / White RAL9016
Protection Class ClassⅠ
LED Driver Meanwell ELG/HLG,Sosen
Dimming(Optional) 0/1-10V/PWM/DALI/Zigbee
Beam Angle(Optional) TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium)
Lifespan/hrs >50.000 Hrs (Ta=30 @L70)
Operation Temp/℃ -40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃ -40°C to + 65°C(-40°F to 149°F)
Pipe Diameter φ60mm
Certificate CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available



LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 1
30W/60W Version
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 2
90W,120W/150W/180W Version
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 3

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 4
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 5

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 6
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 7
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 8LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 9LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 10LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 11
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 12
Zigbee Wireless Intelligent Control Diagram
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 13

Zigbee Wireless Intelligent Control Operator Interface
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 14
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 15
DALI Device
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 16

DALI Intelligent Control Diagram
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 17 LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 18


DALI Intelligent Control Operator Interface
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 19
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 20
LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 21

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 22

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 23

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 24

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 25

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 26

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 27

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 28



LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 29

LED Street Light High Lumen 150LPW Customized Streamline Design Esay Installation Outdoor Die-casting Aluminum 30
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
