| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-HB200DNN8XXXX-BCP-XFGBPR02 |
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM/ODM/OBM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50,000PCS/Month |
| Power: | 200W DIP(120W/150W/200W) | CIR: | >80Ra For Standard (>90Ra For Higher CRI Available) |
|---|---|---|---|
| Material: | Die-cast Aluminum | CCT: | Tri-color Optional (3000-4000-5000K | 3000-4500-6000K | 4000-5000-6000K For Choice) |
| PF: | >0.97 | Warranty: | 5 Years |
| Highlight: | led flat panel light fixture,wireless led outdoor flood lights |
||
| Power/W Size A / mm Size B / mm Size C / mm Size D / mm Size E / mm |
| 100 φ280 φ178 88 139 203 |
| 150 φ280 φ178 88 139 203 |
| 200 φ280 φ178 88 139 203 |
| General System |
| Housing Material: High pressure die-cast ADC12 aluminium EN AC-43000, EN AC-43100, EN AC-43400, EN AC-44100,EN AC-47100 according to the UNE EN 1706 standard powder coated |
| Diffuser Material: Injected PC according to the UNE-EN ISO 294-2:2019 standard, UV filter conditional(IK08) |
| Housing Color: Metallic Black (RAL9017), Other colors optional |
| Sealing Gaskets: Silicone foam |
| LEDs Thermal Dissipation: Through finless ADC12 AL luminaire body, without conductive fluids. Passive convection dissipation ensuring thermal contact with the LED modules through a high-conductivity Lead-free solder paste |

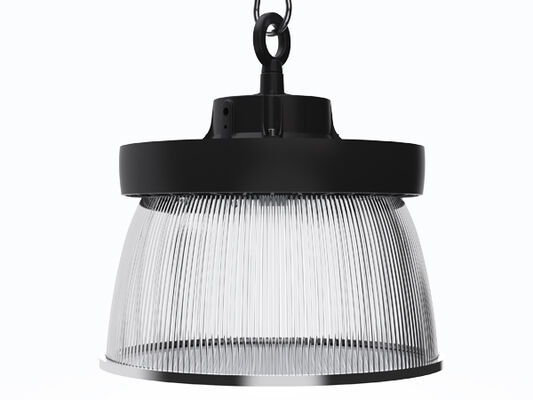

| Optical system: Lens optic, PC/alu-reflector optional |
| Finish: Polyester powder paint coating, electrostatically sprayed and sublimated in the oven, Resistant to corrosion |
| Recommended Mounted Height: 5 - 15 meters |
| Maintenance: LED not exchangeable, driver exchangeable |
| Driver: Constant current with optional power adjustable via DIP switch, embedded in luminaire, pre-wired |
| Dimming Control: ON-OFF | 1-10V dimming | DALI-2 | Zigbee |
| IP (Ingress Protection Rating): IP65 |
| IK (Impact Resistance): IK08 |
| Protective Class: Class Ⅰ |
| Glow Wire: 750°C (Under 30s) |
| Cable Gland: Plastic M20x1.5 – IP68 | Plastic M25x1.5 – IP68 (optional) |

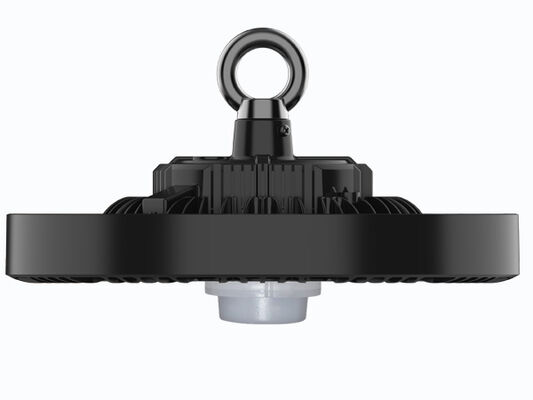

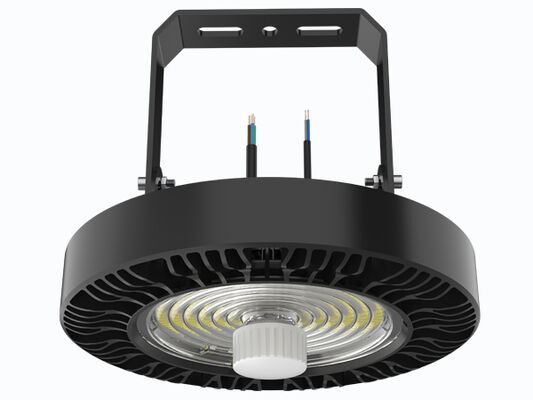

| Installation: Loop Hanging | Bracket Mounting |

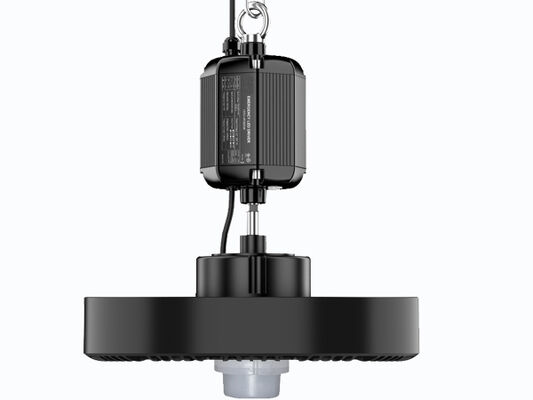

| Smart Function: PIR Sensor with daylight threshold| Microwave Sensor with daylight threshold or daylight harvesting| Emergency |
| Upward light output ratio: ULOR 0 |
| Downward light output ratio: DLOR 100% |
| Electrical System |
| Electrical connection: 0.3m 3*1.0mm2 as stand, max 3x2.5mm2 + 2x1.5 mm2 dimming wire, free wire ends, tailored length wire with EU/AU/US plug for option |
| Main Voltage: 100~277VAC/ 50/60Hz, 140-280VDC |
| Power Factor (PF): ≥0.97 |
| Total Harmonic Distortion (THD): ＜20% |
| Surge Protection: DM: 6kV,CM: 6kV,Criterion B |
| SPD (Optional): Type 2, 10kV and 20kA transient surge protector. Series connection with thermofuse disconnector for a more effective protection at the end of its service life |
| Output Type: Non-SELV(non-isolated) |
| Flicker Factor: ＜1%Perceptibility of Stroboscopic Effects (Pst) ＜1 |
| Stroboscopic Visibility Measure (SVM): ＜0.4 |
| Perceptibility of Stroboscopic Effects (Pst): ＜1 |
| Luminaires Power B10A B16A C10A C16A |
| 100W 6 10 11 17 |
| Module via LSS Circuit Breakers 150W 4 6 6 10 |
| 200W 3 5 6 8 |
| Photometry System |
| LEDs: SMD2835 (1W) |
|
CCT (Correlated Color Temperature): Single CCT (3000K | 4000K | 5000K | 5700K |6500K) Tri-color optional (3000-4000-5000K | 3000-4500-6000K | 4000-5000-6000K for choice) |
| CRI (Color Rendering Index): >80Ra for standard (>90Ra for higher CRI available) |
| Photobiological Safety: RG0 (exempt of risk) |
| EEC (Energy Effciency Class): A++ |
| SDCM (Standard Deviation of Color Matching): ＜5 (SDCM<3 Optional) |
|
UGR (4H, 8H) : 33.9 (Cross) 33.9 (Longitudinal) |
| Beam Angle: 60° | 90° | 120° Optional |
| Average Luminaire Useful Lifetime: 61.000 hours (L80B10) |
| Lumen Maintenance at e.o.l. >70% |
| Luminous Efficacy: 150LPW (PROLine) | 170LPW (PRIMELine) | 190LPW (ULTRALine) Optional |
| Rated Power: 100W DIP(60/80W/100W) 150W DIP(100W/120W/150W) 200W DIP(120W/150W/200W) |
| (PRO) Max. 15.000lm Max. 22.500lm Max. 30.000lm |
|
Lumens Delivered @ 5000K, CRl>80 (PRIME) Max. 17.000lm Max. 25.500lm Max. 34.000lm |
| (ULTRA) Max. 19.000lm Max. 28.500lm Max. 38.000lm |
| Operation Condition |
| Operation Temperature / Humidity: -30~ +60℃ (-22°F ~ 140°F) / 5~85% RH, not condensed |
| Storage Temperature / Humidity: -30~ +80℃ (-22°F ~ 176°F) / 5~85% RH, not condensed |
| Average LED Useful Time L80B10: ≥100.000H |
| Rated Nominal Lifetime (Tp <70℃): Up to 100,000H |
| Driver MTBF: 198.000H,MIL-HDBK-217F(25℃) |
| Vibration Resistant: 10~500Hz,5G 12min / 1cycle,period for 72min. Each along X,Y,Z axes |
| Acoustic Noise: ＜25dB (30cm disstance, Normal operation) |
| Guarantee: 5 Years (Extensible up to 7 years) |
| Certifications |
| Global Certificate: ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium |
| Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471 |
| EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384 |
| Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11 |
| Power/W Inner Box Outer Carton QTY”/CTN Unit N.W G.W/Carton |
| 100 295x115x298mm 615x308x320mm 5PCS 2.2Kg 13.9Kg |
| 150 295x115x298mm 615x308x320mm 5PCS 2.4Kg 14.2Kg |
| 150 295x115x298mm 615x308x320mm 5PCS 2.6Kg 14.6Kg |
* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;
* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;
* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.
Shipment:
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q1: What is the warranty for the HB4H Highbay light?
Thank you for your using DUALRAYS LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
