Place of Origin: | Shenzhen,China |
Brand Name: | DUALRAYS |
Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
Model Number: | DR-HB200-EG2 |
Minimum Order Quantity: | 2PCS |
---|---|
Price: | Negotiated |
Packaging Details: | Netural Package/OEM and ODM Package Available |
Delivery Time: | 5-15 Bussiness Day |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 100,000PCS/Month |
Power: | 100W,150W,200W,240W,300W | CIR: | >80Ra |
---|---|---|---|
Material: | Die-cast Aluminum | CCT: | 3000K,4000K,5000K,5700K,6500K |
PF: | >0.95 | Warranty: | 5 Years |
High Light: | led flat panel light fixture,wireless led outdoor flood lights |

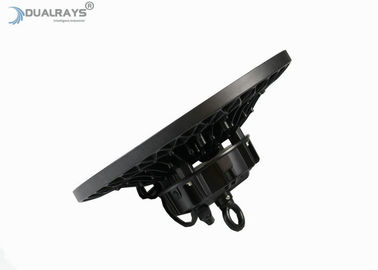

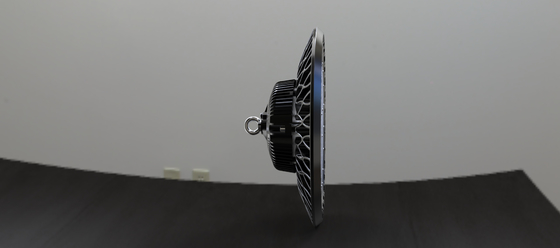

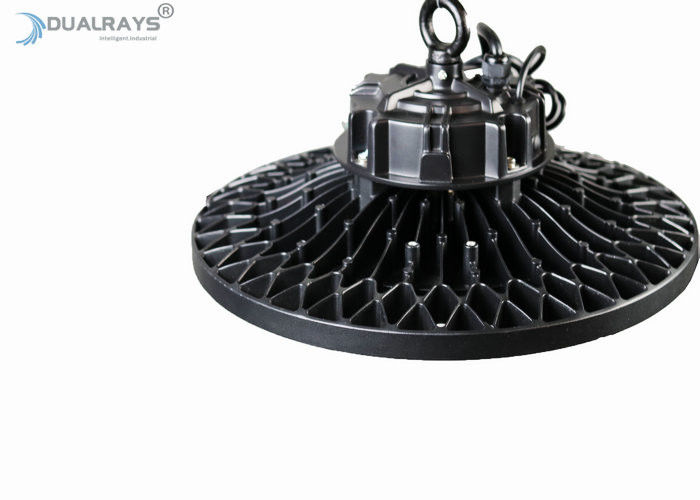

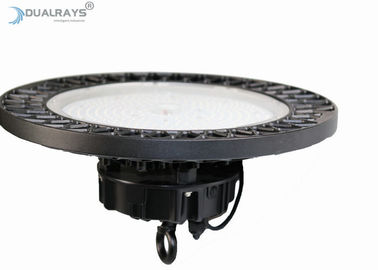

200W Industrial High Bay LED Lighting Fixtures Low Light Decay Heat Dissipation
UFO LED High Bay Features:
* The luminaire assembly meets dust and moisture rating of IP65 per IEC60529 and impact protection of IK08 per EN62262, ensure long life and protection from the environment;
* High Color Rendering Index (CRI>80);
* AC100V~277V,50/60Hz input voltage;
* IP65 and IK10 for all industrial areas of application;
* Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen;
* Reflector : PC reflector with / without cover.pipe mounting.
Item | Description |
System Efficiency/LPW | 140LPW |
Finishing Color(Optional) | Black RAL9017 / White RAL9016 |
CRI/Ra | >80Ra (>70Ra for Option) |
LED Driver | Meanwell HBG/ELG/HLG,Sosen |
LED Chips | SMD3030 PHILIP LUMILEDS LEDs |
Optic Lens | 60°/90°/110° |
Rated Input Voltage/V | AC100~277V 50/60Hz |
Installaion |
Loop Hanging, Ceiling Mounting, Wall Mounting,pipe mounting; Customized supported for special projects; |
> Shipyards;
> Mines;
> Workshops;
> Warehouse;
> Highway toll stations;
> Gas stations;
> Supermarkets;
> Exhibition center;
Character/Power
|
100W
|
150W
|
200W
|
240W
|
|
A
|
Ø350mm
|
Ø350mm
|
Ø420mm
|
Ø420mm
|
|
B
|
210mm
|
210mm
|
220mm
|
220mm
|
Q1: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded from our Website(www.dualrays.com).
Q2: Do you offer mounting accessories?
RE: Yes, please contact us for details.
Q3: What’s your main product line is made ?
RE: 5 product lines.We focus on intelligent industrial LED luminaires,so our main products includes LED flood light,LED high bay,LED tri-proof light,LED street light,LED Linear trunking rail system.
Q4: Does Dualrays have the ability to do independence and development ?
RE: Our engineer department have 12 people. We have the research and development capability. We also collect regularly each customer feedback. We have product improvement and new product development.
Q5.How to explain “illuminance“?
RE: The intensity of light falling on a surface area. If the area is measured in square feet, the unit of illuminance is footcandles(fc). If measured in square metres, the unit of illuminance is Lux.
Q6.What’s efficacy about the light ?
RE: The light output of a light source divided by the total electrical power input to that source, expressed in lumens per watt(lm/w).
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
