Place of Origin: | Shenzhen,China |
Brand Name: | DUALRAYS |
Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
Model Number: | DR-TPLX-EG2X |
Minimum Order Quantity: | 6PCS |
---|---|
Price: | Negotiable |

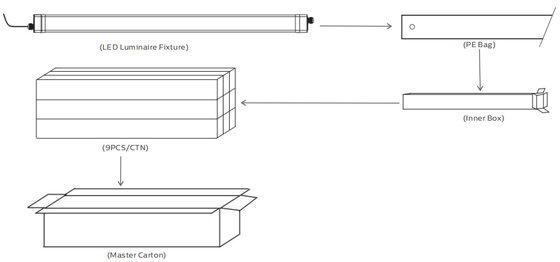

Packaging Details: | Netural Package/OEM and ODM Package Available,6PCS/CNT |
Delivery Time: | 5-15 business days |
Payment Terms: | T/T, L/C, Western Union,Paypal |
Supply Ability: | 100,000pcs/month |
Warranty: | 5 Years | Power Factor: | >0.98 |
---|---|---|---|
CRI: | >82 | Efficiency: | 160LPW |
LED Driver: | DUALRAYS / BOKE Flicker-free Driver,DIP Switch Power Adjustment Available | LEDs Light Source: | SMD2835 |
High Light: | dust proof light fixture,vapor proof led light |
Low Light Decay LED Tri Proof Light IP65 160LPW Polyester Powder Luminaire Coated

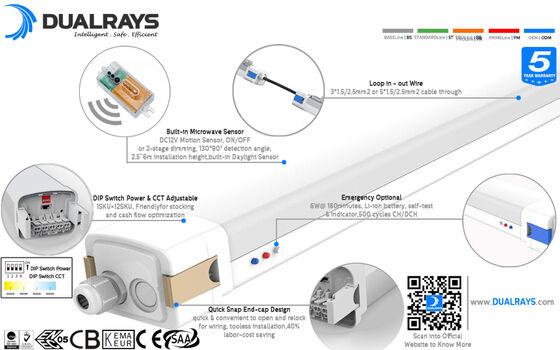

LED Tri Proof Light Feature:
* Constructed in a heavy-duty 6063 aluminum and PC,durable and excellent heat dissipation efficiency;
* High output lighting efficiency 160LPW;
* LM-79/80 reports available;
* AC100V~240V,50/60Hz input voltage;
* IP65/IP66 and IK10 for all industrial areas of application;
* No UV or IR and completely mercury free;
Item | Symbol | 2ft/20W | 3ft/30W | 4ft/50W | 5ft/60W | 5ft/80W |
Model No | / | DR-TPL020-EG21 | DR-TPL030-EG31 | DR-TPL050-EG41 | DR-TPL060-EG51 | DR-TPL080-EG51 |
Rated Power | W | 20 | 30 | 50 | 60 | 80 |
LEDs Typ/Qty |
SMD 2835 |
144 | 240 | 336 | 576 | 576 |
Luminous Flux |
Clear Frost |
3,400±5% 3,200±5% |
5,100±5% 4,800±5% |
8,500±5% 8,000±5% |
10,200±5% 9,600±5% |
13,600±5% 12,800±5% |
Efficiency |
Clear Frost |
Typ.170 Typ.160 |
Typ.170 Typ.160 |
Typ.170 Typ.160 |
Typ.170 Typ.160 |
Typ.170 Typ.160 |
Color Temperature | CCT/K | WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K | ||||
Color Index | Ra | >82Ra | ||||
Beam Angle | Degree | 120 | ||||
IP/Rating | / | IP65 | ||||
AC Input Vol | V | AC100~277V 50/60Hz | ||||
Power Factor | PF | PF>0.95 | ||||
Lumen Maintenance @ 6000 hrs | Hours | >80% | ||||
Switching Cycle before Failure | Times | 100,000 | ||||
Life Span | Hours | 50,000 | ||||
Warranty | Years | 5 years | ||||
Operation Temperature | ℃ | -15 ~ +50℃ | ||||
Storage Temperature | ℃ |
-25 ~ +55℃
|
The policy about ordinary agent:
The rights and responsibilities to the ordinary agent:
(1). The annual sales amount should be confirmed according to the applicant‘s commercial plan and our comprehensive understanding of the market.
(2). The agent should hand in the market report to us quarterly.
(3). The agent should arrange their technical staff to come to our company to attend the training every half year, to learn the latest LED lighting technology.

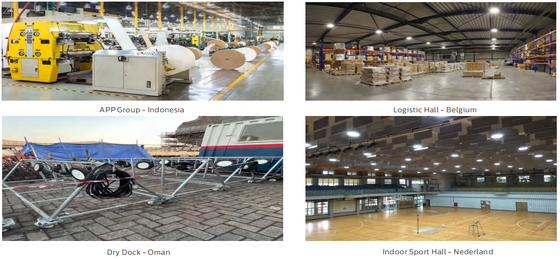

> Replacement for fluorescent NCF
> Workshops and warehouse
> Garage and car parks
> Sport facility
> Corridor/Gallery/Corridor
> Outdoor & Indoor Locations
Character/Length
|
2ft
|
3ft
|
4ft
|
5ft
|
![]() |
A
|
600mm
|
900mm
|
1200mm
|
1500mm
|
|
B
|
90mm
|
90mm
|
90mm
|
90mm
|
|
C
|
74mm
|
74mm
|
74mm
|
74mm
|
As a specialist in modern, efficient ,advanced LED lighting for industrial applications,Shenzhen Dualrays Optoelectronics Co.,Limited is one of the leading professional technology and marketing oriented NHTE (National High Technology Enterprise) in R&D,manufacturing,sales and service of intelligent industrial LED luminaires.
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
