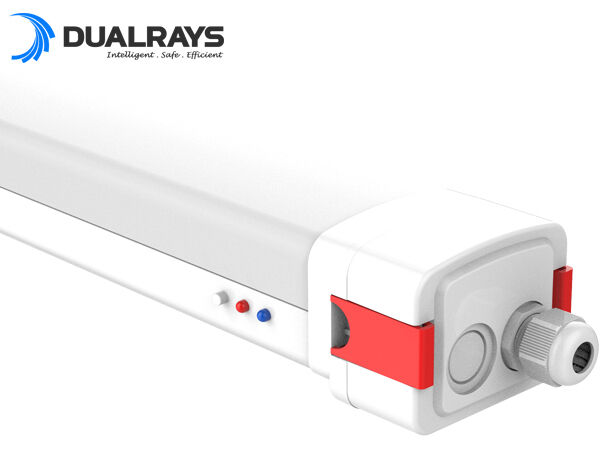

DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming

DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming

    • DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming
    • DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming
    • DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming
    • DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming
    • DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming
    • DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming
    • DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming
  • DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming

    Product Details:

    Place of Origin: Shenzhen,China
    Brand Name: DUALRAYS
    Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
    Model Number: DR-TPL040-BG41

    Payment & Shipping Terms:

    Minimum Order Quantity: 6PCS/1 Carton
    Price: Negotiated After Inquiry
    Packaging Details: Netural Package,color box package,8PCS/CTN,L1270*W360xH200mm
    Delivery Time: 5-15 business days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs/month
    Contact Now
    Detailed Product Description
    Material: Aluminium Alloy +PC Input Voltage: AC85~277V 50/60Hz
    Power Efficiency: >92% Power Factor: >0.98
    CRI: >83 IP Rating: IP65
    CCT: 3000/4000/5700/6500K±200K Guarantee: 5 Years
    Length Optional: 2ft/3ft/4ft/5ft Dimmable: 0/1-10V/DALI/Zigbee
    High Light:

    explosion proof led lights

    ,

    dust proof light fixture

    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming
    240W HB5 LED UFO High Bay Light IP65 5 Years Warranty with Motion Sensor and Emergency Function
    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 1
    > Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;

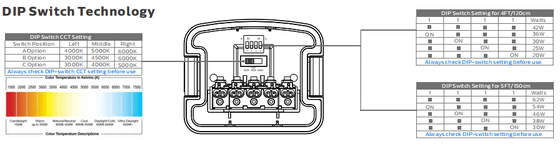

    > 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;

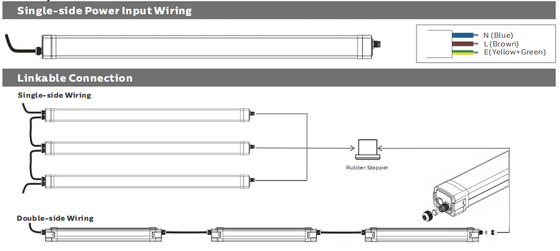

    > Single or Double wiring;
    > IP65/IP66 and IK10 for all industrial areas of application;

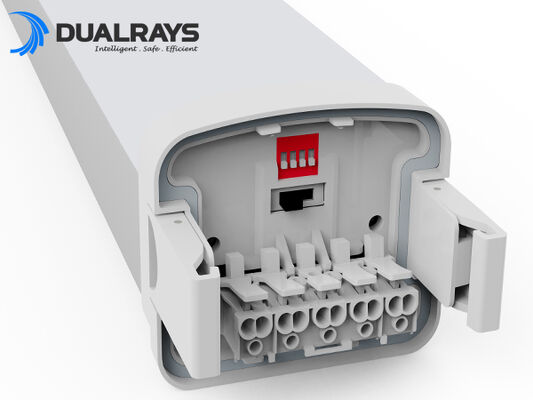

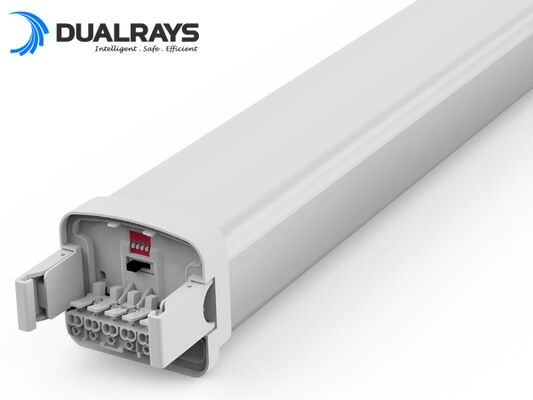

    > Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;;

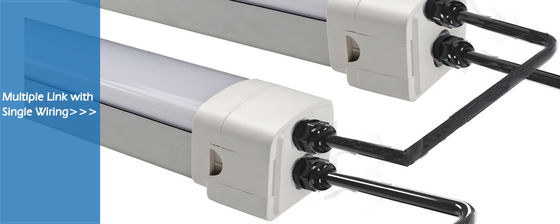

    > Multiple Link with double wiring;
    > No UV or IR and completely mercury free;
    > L80/B10 @ 50.000h;
    > 5 years warranty;

    Options:
    > Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.
    > Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.
    > Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.

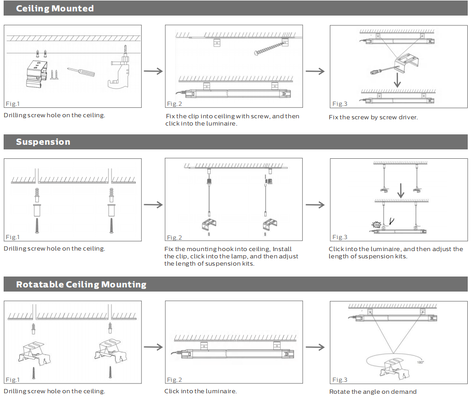

    > Installation: Suspension, Ceilign Mounted and adjustable surface mount.
    > Single or double wiring and connection.
    > Customized supported for special projects.
    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 2

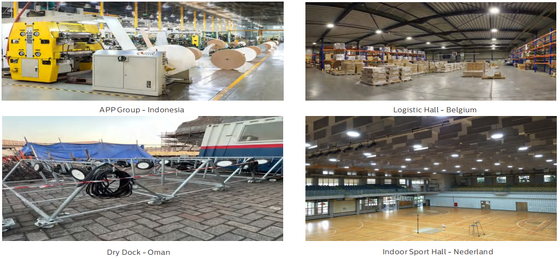

    * Replacement for fluorescent NCF
    * Workshops and warehouse
    * Garage and car parks
    * Sport facility
    * Corridor/Gallery/Corridor
    * Outdoor & Indoor Locations

    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 3
    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 4

    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 5
    Character/Length
    2ft
    3ft
    4ft
    5ft
    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 6
    A
    600mm
    900mm
    1200mm
    1500mm
    B
    90mm
    90mm
    90mm
    90mm
    C
    74mm
    74mm
    74mm
    74mm

    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 7
    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 8


    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 9

    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 10

    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 11

    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 12

    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 13

    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 14

    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 15

    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 16

    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 17
    Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

    DUALRAYS D5 LED Tri Proof Light 4ft 40W 160LPW Efficiency 0-10V DALI Dimming 18

    Marketing Department
    Tel: 0086-755-2306 6948
    Fax: 0086-755-6164 1072
    Zip Code: 518125
    Contact Person: David Lau
    Whatsapp/Wechat: 0086-186.2030.9436
    Email: david.lau@dualrays.com

    Add: 6th Floor,Building 10, Gangzai Industrial Park, Furong Industrial Park,Xinqiao Industrial District,Shajing,Bao‘an District,Shenzhen 518125, P.R.China

    Tag words: Driverless LED flood light , UFO LED high bay , LED troffer , LED area light , LED street light, Dualrays,LED Lichtband System,Linear LED High Bay,Linear LED Low Bay Light,Sport LED Flood Light,LED High Mast Light
