| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS/OEM |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-ST180-DG1 |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 business days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 50000pcs/month |
| Material: | Aluminum+PC+Toughened Glass | Input Voltage: | AC100-277V 50-60Hz |
|---|---|---|---|
| Power: | 180W | Lumen: | 21.600~27.000lm±5% |
| CCT: | 3000/4000/5700/6500K±200K | CRI: | >70Ra (>80Ra For Option) |
| Surge Protection: | 10KA SPD,20KA Meanwell SPD Optional | Guarantee: | 5 Years Standard / 7 To 10 Years Negotiated |
| Certificate: | CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Available | Optics: | TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium) |
| High Light: | led cobra head street light,warm white led street lights |
||

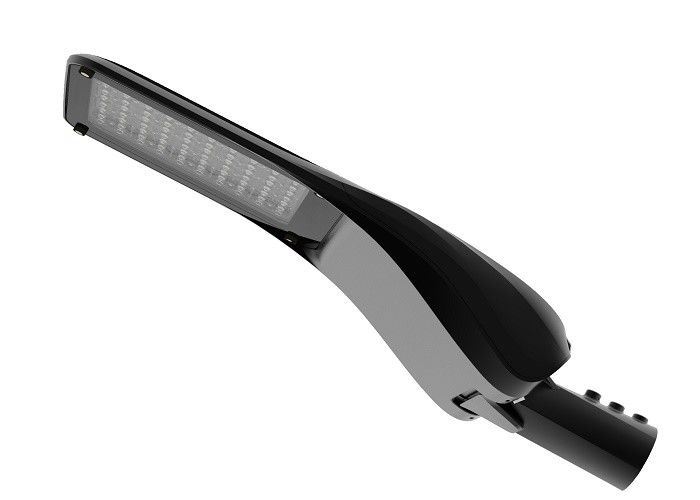

High Efficiency IP66 Waterproof DALI Dimmable Outdoor 180W LED Street Light Lamp Head Adjustable
| Model No. | DR-ST030-DGX | DR-ST060-DGX | DR-ST090-DGX | DR-ST120-DGX | DR-ST150-DGX | DR-ST180-DGX |
| System Watts/W | 30W | 60W | 90W | 120W | 150W | 180W |
| System Efficiency/LPW | 120LPW/150LPW (Optional) | |||||
| Rated Input Voltage/V | AC100~277V 50/60Hz | |||||
| Lumen Output/lm | 3.600~4.500±5% | 7.200~9.000±5% | 10.800~13.500±5% | 14.400~18.000±5% | 18.000~22.500±5% | 21.600~27.000±5% |
| Finishing Color(Optional) | Black RAL9017 / White RAL9016 | |||||
| Protection Class | ClassⅠ | |||||
| LED Driver | Meanwell ELG/HLG,Sosen | |||||
| Dimming(Optional) | 0/1-10V/PWM/DALI/Zigbee | |||||
| Beam Angle(Optional) | TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium) | |||||
| Lifespan/hrs | >50.000 Hrs (Ta=30 @L70) | |||||
| Operation Temp/℃ | -40°C to + 50°C(-40°F to 122°F) | |||||
| Storage Temp/℃ | -40°C to + 65°C(-40°F to 149°F) | |||||

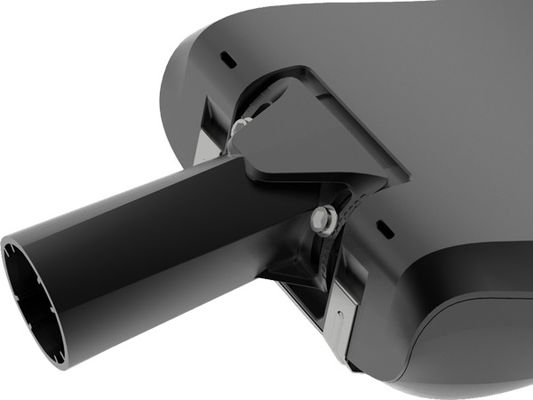

| Pipe Diameter | φ60mm | |||||
| Certificate | CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available | |||||
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
Contact Person: Mr. David Lau
Tel: 86-18620309436
Fax: 86-755-61641072
