TypeⅠTypeⅡ Long & Medium TypeⅢ Medium TypeⅣ TypeⅤ Medium Full Lighting Distribution LED Street Light

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS/OEM
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-ST120-DG1

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiated After Inquiry
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 business days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	30000pcs/month

Contact Now

Detailed Product Description

Input Voltage:	AC100-277V 50-60Hz	Power Consumption:	120W
Lumen:	14.400~18.000lm±5%	CCT:	3000/4000/5700/6500K±200K
CRI:	>70Ra (>80Ra For Option)	Power Factor:	>0.96
Material:	Aluminum+PC+Toughened Glass	Guarantee:	5 Years Standard / 7 To 10 Years Negotiated
Certificate:	CE(EMC+LVD),RoHS,TUV/GS ,D-Mark,SAA,RCM Available	Pipe Diameter:	φ60mm
High Light:	led cobra head street light , decorative street light

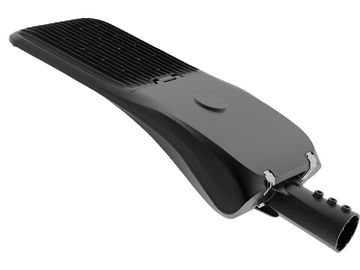

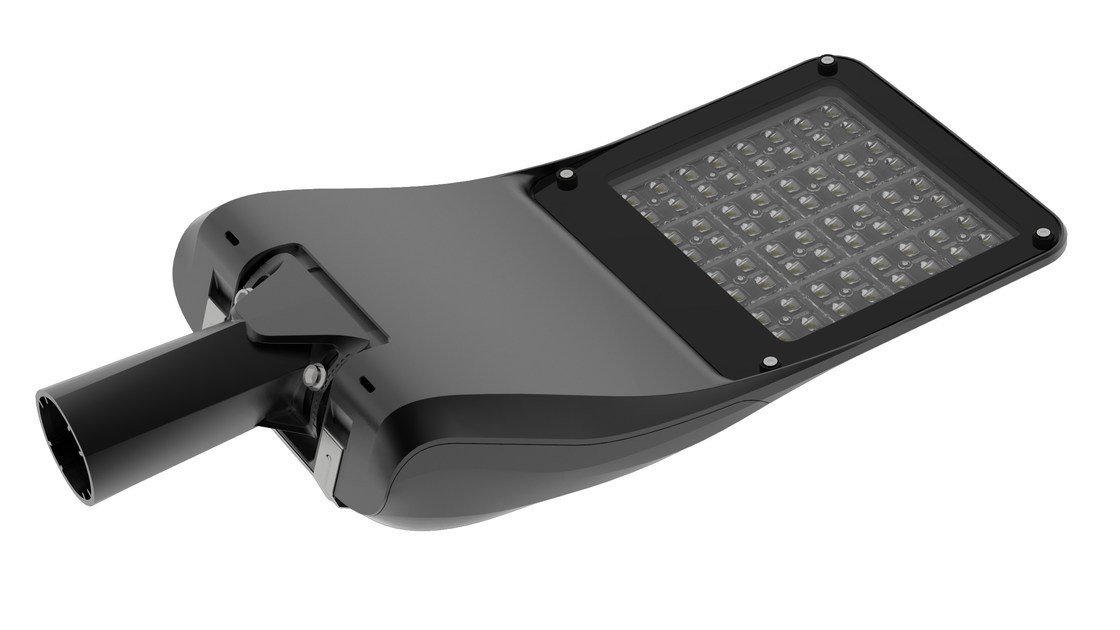

Low Light Decay Outdoor LED Street Lights 120W SMD Intelligent S4 Series IP66

TypeⅠTypeⅡ Long & Medium TypeⅢ Medium TypeⅣ TypeⅤ Medium Full Lighting Distribution LED Street Light 0

> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications,and toughened glass protection;

> IP66 and IK10 for road lighting application;

> Driver and housing separated by spacers;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty,7 or 10 years warranty negotiated;

Options:

> Driver: ELG/HLG,Sosen;

> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;

> 10KA SPD,20KA Meanwell SPD optional;

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;

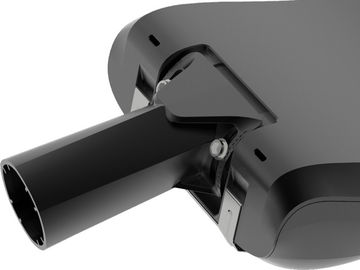

> Light pole adapter for different poles optional;

> Customized supported for special projects;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

TypeⅠTypeⅡ Long & Medium TypeⅢ Medium TypeⅣ TypeⅤ Medium Full Lighting Distribution LED Street Light 5
30W/60W Version

90W,120W/150W/180W Version

TypeⅠTypeⅡ Long & Medium TypeⅢ Medium TypeⅣ TypeⅤ Medium Full Lighting Distribution LED Street Light 8

Packaging Information
TypeⅠTypeⅡ Long & Medium TypeⅢ Medium TypeⅣ TypeⅤ Medium Full Lighting Distribution LED Street Light 12

Shipment
TypeⅠTypeⅡ Long & Medium TypeⅢ Medium TypeⅣ TypeⅤ Medium Full Lighting Distribution LED Street Light 13

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

TypeⅠTypeⅡ Long & Medium TypeⅢ Medium TypeⅣ TypeⅤ Medium Full Lighting Distribution LED Street Light 14

TypeⅠTypeⅡ Long & Medium TypeⅢ Medium TypeⅣ TypeⅤ Medium Full Lighting Distribution LED Street Light 15

TypeⅠTypeⅡ Long & Medium TypeⅢ Medium TypeⅣ TypeⅤ Medium Full Lighting Distribution LED Street Light 16

TypeⅠTypeⅡ Long & Medium TypeⅢ Medium TypeⅣ TypeⅤ Medium Full Lighting Distribution LED Street Light 17

TypeⅠTypeⅡ Long & Medium TypeⅢ Medium TypeⅣ TypeⅤ Medium Full Lighting Distribution LED Street Light 18

TypeⅠTypeⅡ Long & Medium TypeⅢ Medium TypeⅣ TypeⅤ Medium Full Lighting Distribution LED Street Light 19

TypeⅠTypeⅡ Long & Medium TypeⅢ Medium TypeⅣ TypeⅤ Medium Full Lighting Distribution LED Street Light 20

TypeⅠTypeⅡ Long & Medium TypeⅢ Medium TypeⅣ TypeⅤ Medium Full Lighting Distribution LED Street Light 21

TypeⅠTypeⅡ Long & Medium TypeⅢ Medium TypeⅣ TypeⅤ Medium Full Lighting Distribution LED Street Light 22
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
