| Place of Origin: | Shenzhen,China |
| Brand Name: | Dualrays |
| Certification: | CE,ROHS,TUV/GS,LM79,LM80 |
| Model Number: | DR-SL150-DG2 |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 business days |
| Payment Terms: | T/T, L/C, Western Union,Paypal |
| Supply Ability: | 50,000pcs/month |
| Efficienncy: | 140LPW | LEDs Source: | LUMILEDS LUXEON LEDs |
|---|---|---|---|
| CCT: | WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K | Input Voltage: | AC95~277V 50/60Hz |
| Wattage: | 30W,60W,90W,120W,150W,180W | Life Span: | 50000H |
| High Light: | warm white led street lights,decorative street light |
||

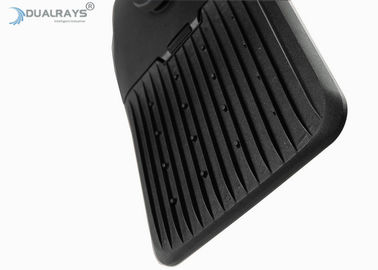

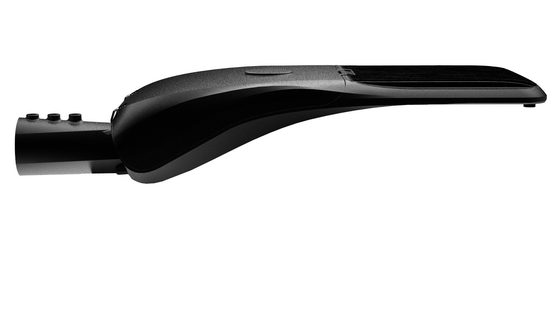

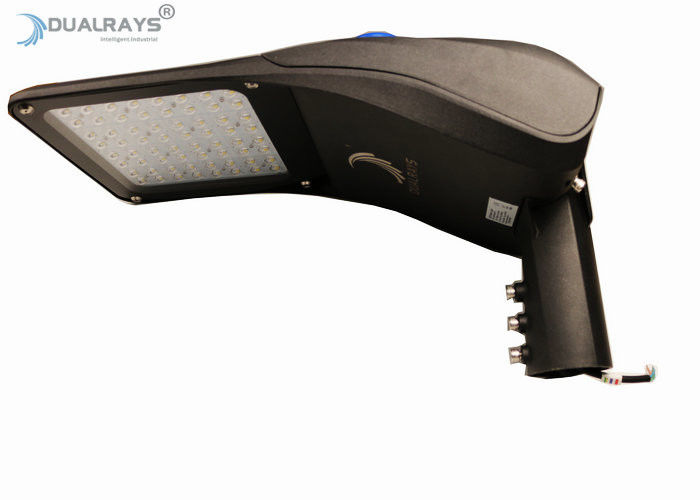

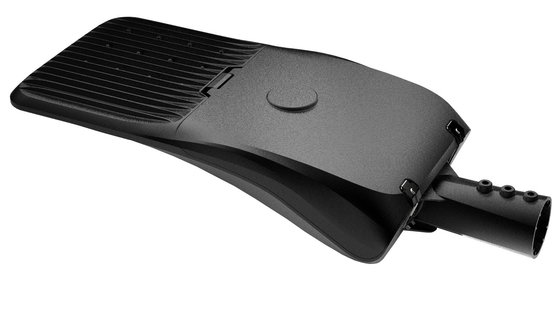

IP66 Protection Led Outdoor Security Lights High Color Rendering Index 50000H Life Span
Outdoor LED Street Lights Features:
* Super durable powder coating finish withstand extreme climate changes without cracking or peeling;
* CE,RoHS listed, LM-79/80 reports available,TUV/GS Pending,5 years guarantee;
* Processional optics design,Type I ,Type II, Type III, Type IV, Type V;
* Top brand conponents,PHILIP LUMILEDS LUXEON LEDs light source,Meanwell ELG/HLG driver,durable;
* Superior PC reflector-optic for low glare applications,and toughened glass protection;
* IP66 and IK10 for road lighting application;
Advantages:
* Powerful production capacity and QC management system;
* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;
* All our LED liminaires comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;
* HB3 series UFO high bay is our private module, more competitive and higher quality;
| Item | Description |
| Model No. | DR-ST120-DGX |
| Protection Class | Class I |
| Dimming(Optional) | 0/1-10V/PWM/DALI/Zigbee |
| Rated Input Voltage/V | AC100~277V 50/60Hz |
| LEDs Light Source | SMD5050 |
| THD | <10% |
| Power Factor | >0.95 |
| CRI/Ra | >70Ra (>80Ra for Option) |
> Loading Area.
> Parking lot.
> Playground.
> Sport and Stadium.
> Roadways,Avenues
> Walkways,Loading Area
30W/60W Version
90W,120W/150W/180W Version
Q1: Do you offer OEM or ODM?
RE: OEM and ODM service with customers is available,various choice as below:
1) We can provide you with our present products with your own label;
2) We can modify our products as your request;
3) We can even develop totally new products based on your design;
Q2: How long for the delivery time?
RE: 3 to 5 working days for samples, massive orders is within 10-15 working days according to the quantity.30 days for customized products with opening new mold.Urgent delivery time requirement is available,we will try our best to help you.
Q3: Does Dualrays have the ability to do independence and development ?
RE: Our engineer department have 12 people. We have the research and development capability. We also collect regularly each customer feedback. We have product improvement and new product development.
Q4.What’s the fire rating categories ?
RE: VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.
HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.
TP(b)-Slow burning rate <50mm / min for thickness <3mm.
TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.
Q5.Could i tell you what’s LED driver ?
RE: An electronic circuit that converts input power into a current source -a source in which current ramains constant despite fluctuations in voltage fluctuations ,overvoltages, and voltage spikes.
Q6.What’s Power factor ?
RE: The active power divided by the apparent power (i.e product of the rms input voltage and rms input current of a driver.)
