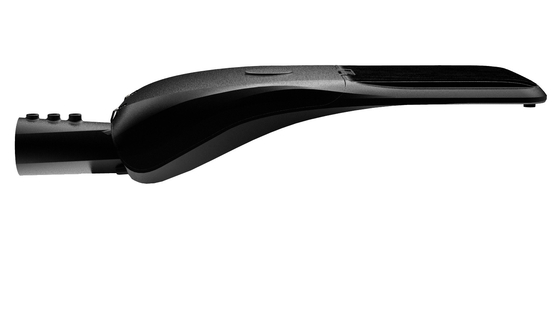

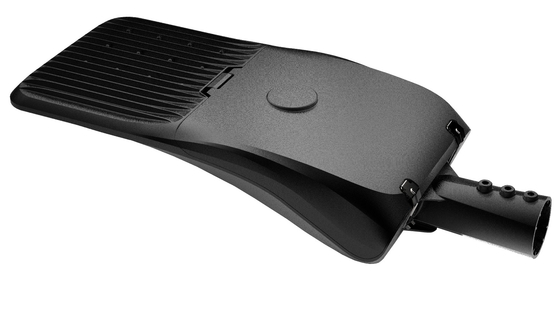

Name: IP66 Protection Outdoor LED Street Lights 180 Watt 140LPW IK08 Vibration Grade
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-SL180-DGX
Availability: InStock

Home Products LED Street Light

IP66 Protection Outdoor LED Street Lights 180 Watt 140LPW IK08 Vibration Grade

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	Dualrays
Certification:	CE,ROHS,TUV/GS,LM79,LM80
Model Number:	DR-SL180-DGX

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Negotiated
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 business days
Payment Terms:	T/T, L/C, Western Union,Paypal
Supply Ability:	50,000pcs/month

Contact Now

Detailed Product Description

IP Rating:	IP66	Rated Input Voltage/V:	AC100~277V 50/60Hz
Lifespan/hrs:	>50.000 Hrs (Ta=30 @L70)	Driver:	Meanwell ELG/HLG
Pipe Diameter:	φ60mm	Input Voltage:	AC95~277V 50/60Hz
Highlight:	led cobra head street light , decorative street light

IP66 Protection Outdoor LED Street Lights 180 Watt 140LPW IK08 Vibration Grade

Outdoor LED Street Lights Features:
* Tool-less access to the down-opening driver door makes easy maintenance and 10KV/20KV SPD for option;
* Superior PC reflector-optic for low glare applications,and toughened glass protection;
* L80/B10 @ 50.000h;
* 10KA SPD,20KA Meanwell SPD optional.
* DALI driver and DALI Centralized Manager optional.
* Customized supported for special projects.

Advantages:
* Tens of R&D engineers with more than 10 years experience in LED luminaires industry;
* Build strategic partnership with international top brands such as CREE, LUMILEDS, NICHIA, MEANWELL,etc.
* Our service and products are recognized from famous enterprises such as Jalasoft, Mercedes-Benz, Rewe, Nahkauf, Hagebau,etc.
* Supply different version with different configurations for our customers.

Item	Description
CCT/K	3000K/4000K/5000K/5700K/6500K
Beam Angle(Optional)	TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ /TypeⅤ (Medium) (Medium)
Dimming(Optional)	0/1-10V/PWM/DALI/Zigbee
UGR	<25

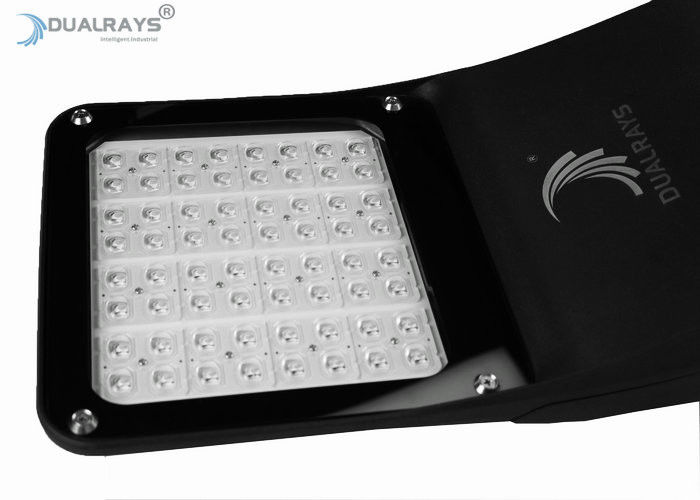

LEDs Light Source	SMD5050
THD	<10%
Operation Temp/℃	-40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	-40°C to + 65°C(-40°F to 149°F)

IP66 Protection Outdoor LED Street Lights 180 Watt 140LPW IK08 Vibration Grade 0

> Roadways.
> Avenues.
> Walkways.
> Loading Area.
> Parking lot.
> Playground.
> Sport and Stadium.

IP66 Protection Outdoor LED Street Lights 180 Watt 140LPW IK08 Vibration Grade 3

30W/60W Version

90W,120W/150W/180W Version

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
IP66 Protection Outdoor LED Street Lights 180 Watt 140LPW IK08 Vibration Grade 18

IP66 Protection Outdoor LED Street Lights 180 Watt 140LPW IK08 Vibration Grade 20

IP66 Protection Outdoor LED Street Lights 180 Watt 140LPW IK08 Vibration Grade 22

IP66 Protection Outdoor LED Street Lights 180 Watt 140LPW IK08 Vibration Grade 24

Q1.Why we use the high power LED?
RE: A high power LED, sometimes referred to as a power LED, is one that is driven at current of 350mA or higher.

Q2.What’s Lumen?
RE: The international (SI) unit of luminous flux or quantity of light and equals the amount of light that is spread over a square foot of surface by one candle power when all parts of the surface are exactly one foot from the light source.

Q3. What are your main markets?
RE: We focus on European market and Oceania market.

Q4. How many engineers of your R&D team?
RE: 10-15 R&D staffs with more than 10 years experience in LED luminaires industry

Q5. What brands of driver do you supply for luminaire fixture?
RE: Meanwell, Boke, Sosen, Moso and other brands available.

Q6. Do LED lights need maintenance? If so, how?
RE: For regular use. There is no need maintenance as long as stable voltage can be assured.

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
