| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-TPL050-EG52 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 50000PCS/Month |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100000PCS/Month |
| Input Voltage: | AC200V-240V | Power Effciency: | 90% |
|---|---|---|---|
| Power Factor: | 0.96 | Junction Temperature: | <80℃ |
| CRI: | >80Ra | LED's Brand: | EPISTAR |
| Material: | Aluminium Alloy | IP Rating: | IP66 |
| Highlight: | explosion proof led lights,dust proof light fixture |
||

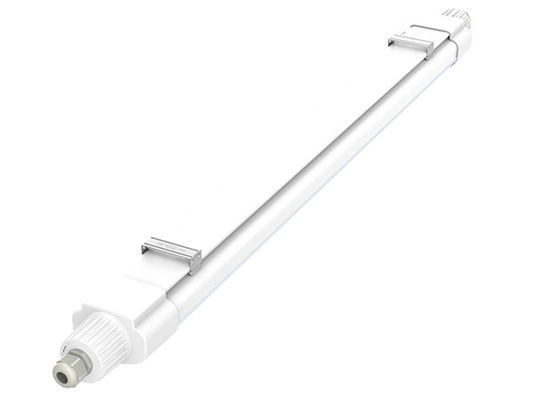

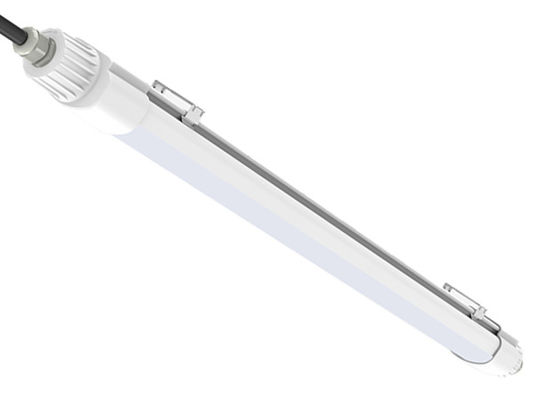

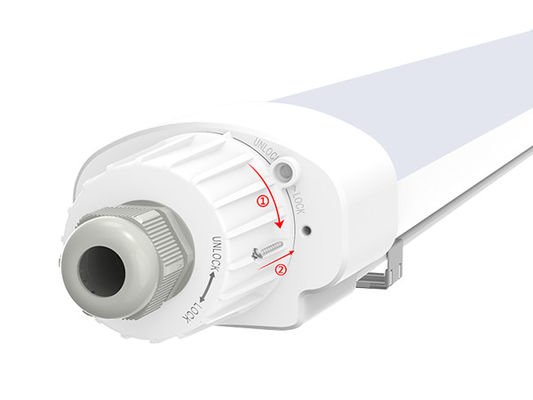

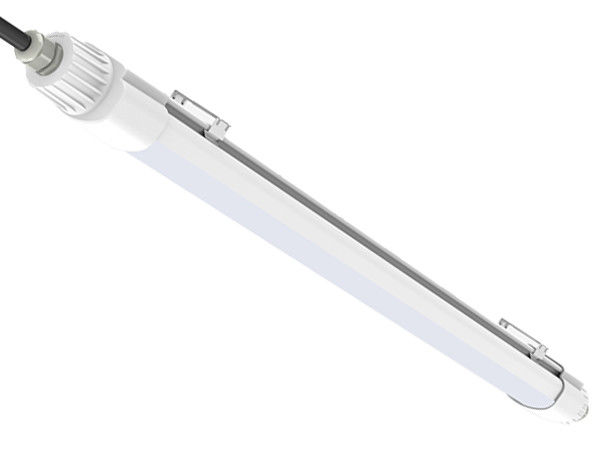

Dualrays D2 Series 50W Dimmable LED Tri Proof Light Dualrays 160LPW IP65 50000 Hours Life Span
Dualrays D2 Series 50W LED Tri Proof Light--Detailed Product Description
| Model No.: | D2 Series | Lumen Output/lm: | 8,000 |
| Power: | 50W | Protection: | IP66,IK10 |
| Dimming Function(Optional): | 1-10VDC /DALI / Zigbee | LED Driver: | DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver |
| Warranty: | 5 Years | Size: | 5ft |
| Model No. | DR-TP020-BG2XPX | DR-TP030-BG4XPX | DR-TP040-BG4XPX | DR-TP040-BG5XPX | DR-TP050-BG5XPX |
| System Watts/W | 20W | 30W | 40W | 40W |
50W
|
| System Efficiency/LPW | 120LPW / 140LPW Optioanl | ||||
| Lumen Output/lm | 2.400/2.800±5% | 3.600/4.200±5% | 4.800/5.600±5% | 4.800/5.600±5% | 6.000/7.000±5% |
| Rated Input Voltage/V | AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional) | ||||
| LEDs Light Source | SMD2835 | ||||
| SDCM | <6 | ||||
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||||
| CRI/Ra | >80Ra (>70Ra for Option) | ||||
| Power Factor | >0.94 | ||||
| THD | <10% | ||||
| Beam Angle(Optional) | 120° | ||||
| UGR | <22 | ||||
| LED Driver | DUALRAYS Own Developed High PF Interior Driver | ||||
| IP Rating | IP65 | ||||
| IK Level | IK08 | ||||
| Dimming(Optional) | 1-10V | ||||
| Sensor(Optional) | No | ||||
| Emergency(Optional) | No | ||||
| Protection Class | ClassⅠ | ||||
| Finishing Color(Optional) | White RAL9016 Optional | ||||
| Material | PC+PC | ||||
| Lifespan/hrs | 50.000 Hrs (Ta=30℃@L70) | ||||
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | ||||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | ||||
| Installation(Optional) | Suspension / Ceiling Mounting Optional | ||||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||||
|
Character/Length
|
2ft
|
4ft
|
5ft
|
|
|
A
|
600mm
|
1200mm
|
1500mm
|
|
|
B
|
74mm
|
74mm
|
74mm
|
|
|
C
|
74m
|
74mm
|
74mm
|
(I) Emergency Function
|
Model No.
|
Emergency Time (Hours)
|
Emergency Power (W)
|
Battery Parameters
|
|
DR-TPL020-BG21
|
3/2/1 hours for option
|
10W
|
7.4V/4400/3000/1500mAh Lithium Battery |
|
DR-TPL040-BG41
|
3/2/1 hours for option
|
10W
|
11.1V/6000/4000/2000mAh Lithium Battery
|
|
DR-TPL050-BG51
|
3/2/1 hours for option
|
10W
|
11.1V/8800/6000/3000mAh Lithium Battery |
