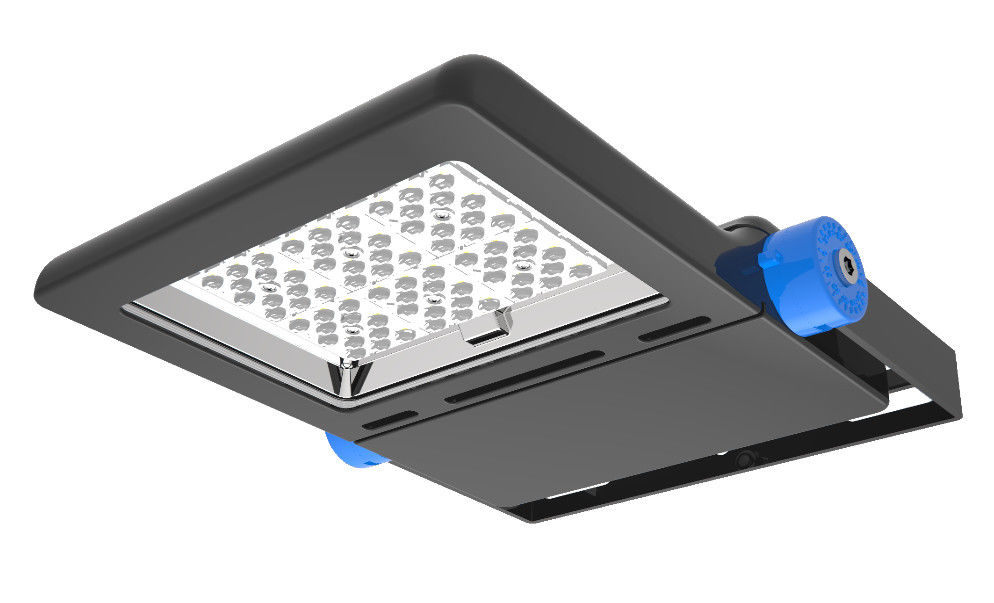

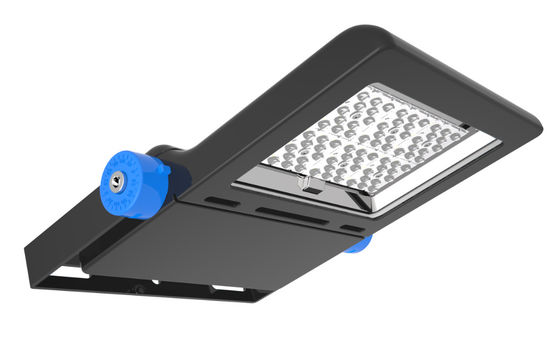

300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application

300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application

  • 300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application
  • 300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application
300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-FL300-CG2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Please inquiry for the latest price
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Installation Height: 25-30m Cover: PC
Replacement: 800W MHL PF: >0.95
Warranty: 5 Years Beam Angle: 60°/120° For Option
High Light:

led flat panel light fixture

,

high bay led shop lights

300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application

300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application 0



> 300W LED Flood Light Flat 13500LM for Outdoor Security and Decoration

> Built-in Plug and Play Motion Sensor with Compact Structure;

> L70/B20(25℃)65.000h;

300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application 1

> Precision Integrated Die-casting ADC12 AL,Excellent Thermal Conductivity;
> High Brightness LUMILEDS LUXEON SMD3030 2D LEDs, SOSEN/Meanwell ELG/HLG Driver;
> Built-in Plug and Play Motion Sensor with Compact Structure;
> IP65 / IK10 Protection;
> Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional;
> Surface Electrostatic Spraying Finish,Oxidation/Corrosion/Acid Resistant;
> D-Mark tested for the use in paper production,wood processing etc with toughened glass;
> 4mm Thickness Toughened Glass for Double Protection and Self-clean;
> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;
> Various intelligent control: 1-10V, DALI,PWM,Zigbee for Option;
> Adjustable Supporting Fixture;

300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application 2

Model No.
DR-FL050-CGXX DR-FL100-CGXX DR-FL150-CGXX DR-FL200-CGXX DR-FL300-CGXX
System Watts/W
50W 100W 150W 200W
300W
System Efficiency/LPW
120~125LPW
Lumen Output/lm
6.500±5% 12.500±5% 18.750±5% 25.000±5% 37.500±5%
Rated Input Voltage/V
AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source
SMD3030
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR
<25
Surge Protection
6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
Sosen,Meanwell ELG / HLG Optional
IP Rating
IP65
Dimming(Optional)
1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional) Motion Sensor
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+Toughened Glass
Lifespan/hrs
62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available




300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application 3

Character/Power
100W
150W
200W
240W
300W
300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application 4
A / mm
389
389
437
493
582
B / mm
297
297
346
379
444
C / mm
57
57
57
57
60

300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application 5
300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application 6
300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application 7
300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application 8300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application 9
300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application 10

300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application 11

300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application 12

300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application 13

300W Flat Led Flood Lighting Fixtures for Indoor and Outdoor Application 14
