Name: Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-ST180-DGX
Availability: InStock

Home Products LED Street Light

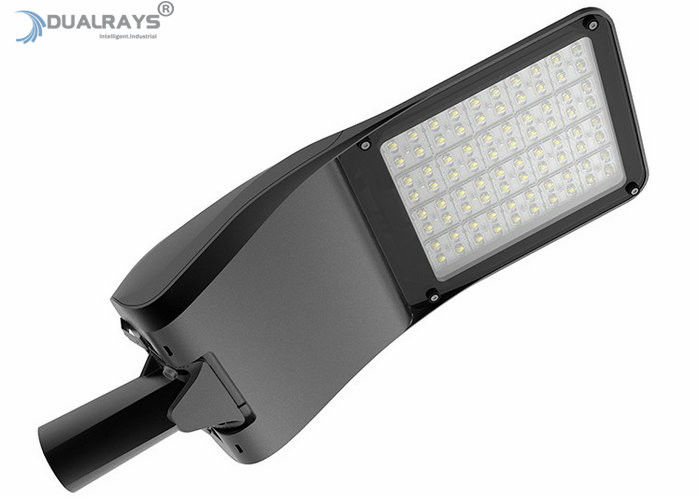

Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80
Model Number:	DR-ST180-DGX

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please contact us for updated price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	Normally 3-5 business days for samples, 10-15 business days for bulk orders.
Payment Terms:	Western Union, L/C, T/T,Paypal
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Input Voltage:	AC100-277V 50/60Hz	Driver:	Meanwell/Sosen
LEDs:	LUXEON SMD 3030	Lens:	Type I, Type II, Type III, Type IV, Type V
Power:	30W/60W/90W/120W/150W/180W	Efficiency:	150LPW
Material:	Aluminium Alloy 6063+PC	Working Temperature:	-40℃--50℃
CCT:	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K	Protection:	IP66; IK10
Highlight:	led cobra head street light , warm white led street lights

Dualrays S4 Series 30W Intelligent LED Street Light 150LPW efficiency IP66 5 years guarantee

Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 0

Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 1

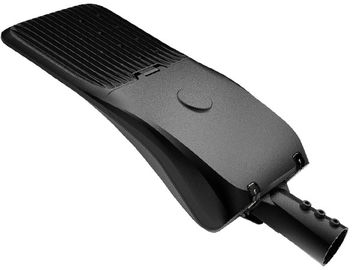

* Die-cast aluminum housing+air-flow through heat sink design provides perfect heat management, lighter but stronger construction.

* Adjustable degree of ±10°/-90°(30W/60W) or +15°/-90°(>60W);

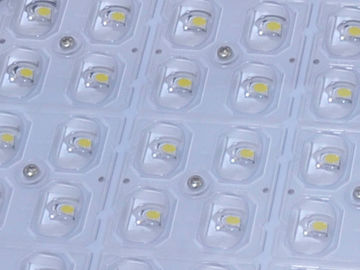

* Type III Medium(70°x150°),Type I Short 50°x120° for option;

* Tool-less access to the down-opening driver door makes easy maintenance and operation;
* Multi beam angle for different occassions;

* Intelligent dimming control available,photocell controller is available;

* Maintenance Free,IP66 protection,IK08 vibration grade;
* 10KV/20KV SPD for option;

* LM-79/80 reports available;

* CE,RoHS listed,5 years' warranty.

Specification: DUALRAYS S4 Series LED Street Light Specification....

Our Advantages:

* Tens of R&D engineers with more than 10 years experience in LED luminaries industry, we are a professional and responsible team;

* Powerful production capacity and QC management system;

* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;

* Our service and products are recognized from famous enterprises such as Jalasoft, Mercedes-Benz, Rewe, Nahkauf, Hagebau,etc.

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;

* OEM/ODM is available. We supply customized service for our customers to meet their marketing.

Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 2

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium

30W/60W Version
Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 4

120W/150W/180W Version

Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 6

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 16

DALI Device
Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 18

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Packaging Information
Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 23

Shipment
Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 24

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 25

Q1: What is the warranty?

RE: 5 years warranty. We will take on the shipping cost and replacement during this period if any quality problem occurred.

Q2: What’s the payment methods you can accept ?

RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.

Q3: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q4: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q5: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q6: What is the CRI?

RE: Ra>70, Ra>80 optional.

Q7: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q8 : Dimming functions?

RE: 1-10V / PWM / Resistance / Timer/ DALI dimmable driver available.

Welcome to contact us freely to know more.

Let's meet DUALRAYS:

Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 26

Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 27

Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 28

Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 29

Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 30

Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 31

Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 32

Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 33

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!

Multi Beam Angle Smart High Power Led Street Lights 180W Photocell Controller 35

Marketing Department

Cila Zhang

Tel: 0086-15070843668

E-mail: sales08@dualrays.com

Fax: +86-755-6164 1072

Zip Code: 518125

Add:3rd Floor,Building A3 | Tianrui Industrial Park | #35,Fuyuan 1st Road,Fuyong Town,Bao'an Dist | Shenzhen 518103
