Name: Dualrays D2 Series 20W Boke Power Supply LED Tri Proof Lamp Ik10 IP66 120° Beam Angle
Brand: DUALRAYS
SKU: DR-TPL020-BG21
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (126 reviews)

Home Products LED Tri Proof Light

Dualrays D2 Series 20W Boke Power Supply LED Tri Proof Lamp Ik10 IP66 120° Beam Angle

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-TPL020-BG21

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	Negotiated
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 bussiness days
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

IP Rating:	IP66	IK Rating:	IK10
Efficiency:	160lm/w	Warranty:	3 Years
Multiple Installations:	Suspension, Ceilign Mounted And Adjustable Surface Mount	Beam Angle:	120°
High Light:	dust proof light fixture , vapor proof led light

Dualrays D2 Series 20W Boke Power Supply LED Tri Proof Lamp Ik10 IP66 120° Beam Angle

Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty

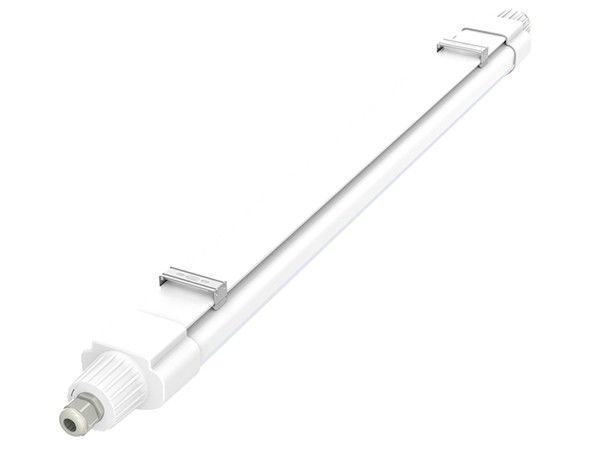

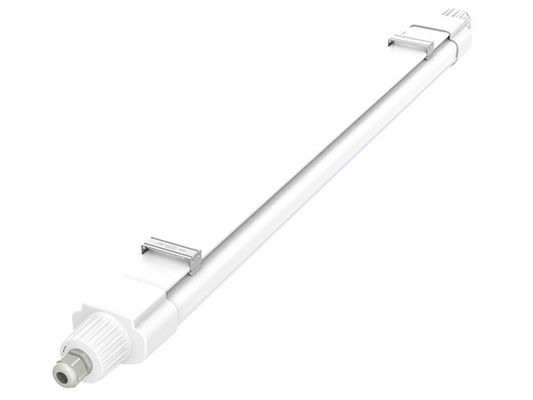

Dualrays D2 Series 20W Boke Power Supply LED Tri Proof Lamp Ik10 IP66 120° Beam Angle 1

Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty

Dualrays D2 Series 20W LED Tri Proof Light-- Detailed Product Description

Model No.:	DR-TPL020-EG21	IP Rating:	IP65
Power:	20W	AC Input Vol:	AC200~277V 50-60Hz
LEDs Qty:	144PCS	CCT/K:	3000/4000/5000/5700K
Led Light Source:	SMD2835	Warranty:	5 Years

Dualrays D2 Series 20W LED Tri Proof Light-- Features

1. Adopting SMD2835 LEDs light source, high output lighting efficiency 120LPW, high Color Rendering Index (CRI>83Ra), excellent heat dissipation, low light decay;

2. 100LPW Standard Version,120LPW Proline Version,160LPW Primeline Version for option, CRI>83 Ra ,more sufficient;

3. 3 years warranty

4. PFC function,0-10V,DALI dimming and PIR sensor are available;

5. Water-proof; Dust-proof; Damp-proof; Vapor-proof

6. BOKE flicker-free constant current driver is isolated away from the heat source of the LEDs,keeps the stability and performance of the driver for long life,quick responds,no flicker, lightning protection, PFC function,0-10V,DALI dimming and PIR sensor;

1. Train Station
2. Bus Station
3. Supermarket
4. Airport hall

Model No.	DR-TP020-BG2XPX	DR-TP030-BG4XPX	DR-TP040-BG4XPX	DR-TP040-BG5XPX	DR-TP050-BG5XPX
System Watts/W	20W	30W	40W	40W	50W
System Efficiency/LPW	120LPW / 140LPW Optioanl
Lumen Output/lm	2.400/2.800±5%	3.600/4.200±5%	4.800/5.600±5%	4.800/5.600±5%	6.000/7.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD2835
SDCM	<6
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>80Ra (>70Ra for Option)
Power Factor	>0.94
THD	<10%
Beam Angle(Optional)	120°
UGR	<22
LED Driver	DUALRAYS Own Developed High PF Interior Driver
IP Rating	IP65
IK Level	IK08
Dimming(Optional)	1-10V
Sensor(Optional)	No
Emergency(Optional)	No
Protection Class	ClassⅠ
Finishing Color(Optional)	White RAL9016 Optional
Material	PC+PC
Lifespan/hrs	50.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Suspension / Ceiling Mounting Optional
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty

Character/Length	2ft	4ft	5ft
A	600mm	1200mm	1500mm
B	74mm	74mm	74mm
C	74m	74mm	74mm

Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty

5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

(I) Emergency Function

Model No.	Emergency Time (Hours)	Emergency Power (W)	Battery Parameters
DR-TPL020-BG21	3/2/1 hours for option	10W	7.4V/4400/3000/1500mAh Lithium Battery
DR-TPL040-BG41	3/2/1 hours for option	10W	11.1V/6000/4000/2000mAh Lithium Battery
DR-TPL050-BG51	3/2/1 hours for option	10W	11.1V/8800/6000/3000mAh Lithium Battery

DALI Device
5ft Slim LED Tri Proof Light 50W 160Lm/W Full Plastic Batten IP65 for Parking Lot

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Packaging Information

Size	Net Weight/PCS	Outer Carton Size	G.W	Quantity/CTN
2ft	0.9kg	L670xW440xH200mm	13.2kg	10PCS
4ft	1.8kg	L1270xW360xH200mm	17.5kg	8PCS
5ft	2.1kg	L1570xW360xH200mm	20.6kg	8PCS

Shipment
Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty

Q1: What is the warranty for the D2 LED triproof light?

RE: For the D2 Series LED triproof light,Dualrays provide 3 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?

RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:

Warm white = 3000±200K

Natural white = 4000±200K

Pure white = 5000±200K

Cool white = 5700±200K

Q3: Is there a MOQ?

RE: 10PCS

Q4: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q7: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q8: What‘re the chips and drivers used?

RE: High brightness San‘an SMD2835 LEDs light source,flicker free drivers for option.

Q9: What is the CRI?

RE: Ra>80 for standard.

Q10: IP Rating?

RE: IP65.

Q11: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q12: Finish color?

RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.

Q13: Dimming functions?

RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.

Q14: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q15:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
