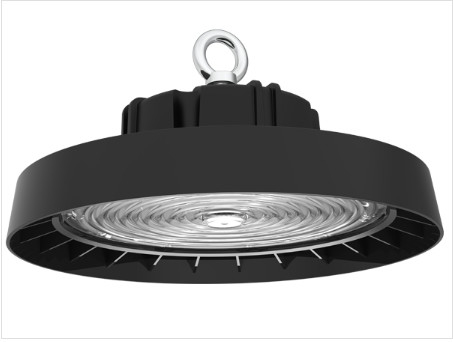

Dualrays HB3 UFO High Bay Light 140LPW IP65 IK08 For Industry

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS(OEM available)
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-HB150-CGXP

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please inquire for the latest price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Input Voltage:	AC100V~277V	UGR:	<25
Power Factor:	0.95	Driver:	Dualrays Built-in
LED Source:	SMD3030	CCT:	WW:3000±200K NW：4000±200K DW：5000±200K CW:5700±200K
Life Span:	>50000h	Guarantee:	5 Years
IP Rating:	IP65	CRI:	>70Ra/>80Ra
Material:	Aluminium Alloy 6063+PC	Installation Height:	6-20 Meters
High Light:	led flat panel light fixture , wireless led outdoor flood lights

Dualrays HB3 UFO High Bay Light 140LPW SOSEN Meanwell IP65 IK08 Factory Warehouse

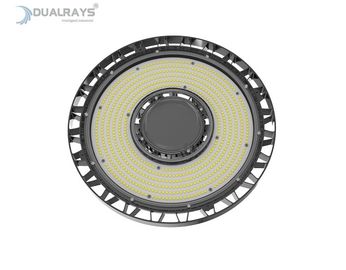

Dualrays HB3 UFO High Bay Light 140LPW IP65 IK08 For Industry 1
DUALRAYS HB3 Eco Version UFO High Light Spe.pdf

* LUMILEDS LUXEON High Brightness SMD3030 LEDs,DUALRAYS Built-in Driver;

* IP65 Protection;

* 60°/90°(with lens)/120°(without lens) beam angle optional;

* D-Mark tested for the use in paper production,wood processing etc with toughened glass;
* Multiple installations: loop hanging, ceiling mounting, wall mounting,pipe mounting,E40 Socket Available;

* DUALRAYS own-developed built-in driver,slim design,compact and durable;
* Various intelligent control: 1-10V, DALI, Motion sensor, Daylight sensor,Zigbee and Emergency;
* Customized supported for special projects;

Options:

> Driver: DUALRAYS Own-developed built-in driver,slim design,durable and compact.

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

Why DUALRAYS?

* Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

UFO LED High Bay Light 100W 160LM/W Die -Casting Aluminum Built-in Driver

Character/Power	100W	150W	200W
A	Ø322mm	Ø322mm	Ø322mm
B	128mm	128mm	128mm

UFO LED High Bay Light 100W 160LM/W Die -Casting Aluminum Built-in Driver

DALI Device
UFO LED High Bay Light 100W 160LM/W Die -Casting Aluminum Built-in Driver

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

UFO LED High Bay Light 100W 160LM/W Die -Casting Aluminum Built-in Driver

Shipment

100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty

Q1: What is the warranty for the HB4 UFO high bay light?

RE: 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What is colour temperature?

RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:

Warm white = 3000±200K

Natural white = 4000±200K

Pure white = 5000±200K

Cool white = 5700±200K

Q3: What’s your shipping method ?

RE: UPS, DHL, Fedex, TNT or Shipping by Air,by train(for Europe) or by sea for option.

Q4: Can I only buy the housing separately?

RE:Sorry. We only supply the whole luminaire fixture.

Q5:Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus
our ship partner send to your door.

Q6:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market, demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

Q7: Dimming functions?

RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.

Welcome to contact us for more information.

Let's meet DUALRAYS from below pictures!

100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty

100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
100W HB3 Eco Built-in Driver Slim Version UFO LED High Bay 5 Year Warranty
