Name: IP66 IK08 60W Protection Outdoor LED Street Lights NICHIA LEDs 60Watt CE Photocell Controller
Brand: DUALRAYS
SKU: DR-ST060-DGX
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (188 reviews)

Home Products Outdoor LED Street Lights

IP66 IK08 60W Protection Outdoor LED Street Lights NICHIA LEDs 60Watt CE Photocell Controller

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS
Certification:	CE, ROHS, TUV/GS, LM79, LM80
Model Number:	DR-ST060-DGX

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	Please inquiry for updated price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 bussiness days
Payment Terms:	L/C, T/T, Western Union, paypal
Supply Ability:	500000pcs/month

Contact Now

Detailed Product Description

Input Voltage:	AC100~277V 50/60Hz	Driver:	Meanwell/Sosen
LED Source:	SMD 5050	Power Factor:	0.95
CCT:	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K	Power:	30W/60W/90W/120W/150W/180W
Efficiency:	150LPW	Material:	AL+PC
Lens:	Type I,Type II,Type III,Type IV,Type V	IP:	IP66
IK:	IK08	Warranty:	5 Years
High Light:	led cobra head street light , warm white led street lights

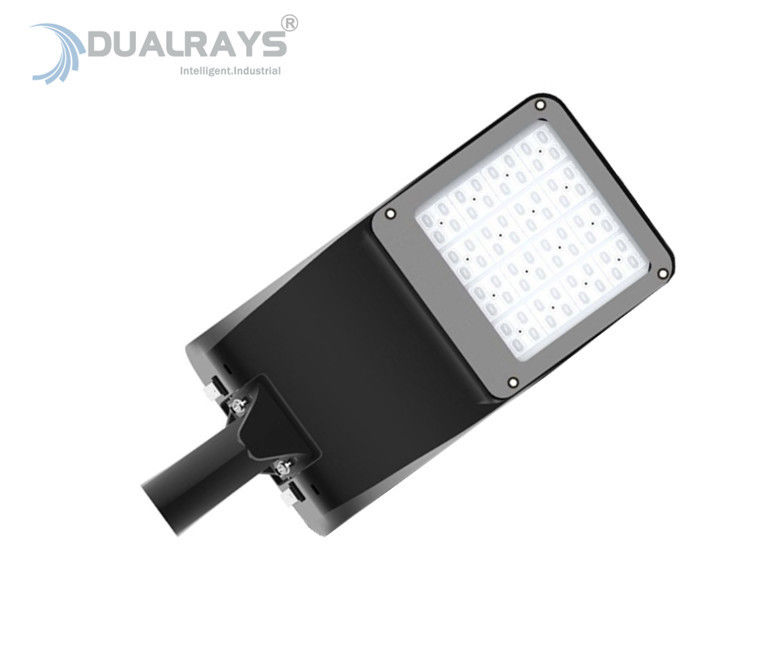

IP66 Protection Outdoor LED Street Lights NICHIA LEDs 30W-180W IK08

IP66 IK08 60W Protection Outdoor LED Street Lights NICHIA LEDs 60Watt CE Photocell Controller 0

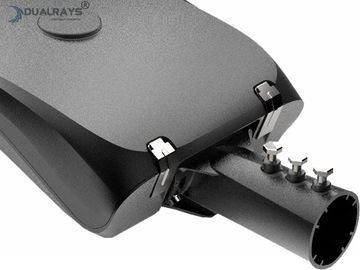

* Die-cast aluminum housing and air-flow heat sink design provides perfect heat management, lighter but stronger construction.

*Adjusted the degree of ±10°/-90°(30W/60W) or +15°/-90°(>60W);

* Full Types beam angle: Type I,Type II,Type III,Type IV,Type V;

* Intelligent dimming control available,

* Maintenance Free,IP66 protection,IK08 vibration grade;
* 10KV/20KV SPD for option;

Specification:DUALRAYS S4 Series LED Street Light Specification....

Why DUALRAYS:

* Professional team: >10 years experience, own factory, >10 engineers, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

IP66 IK08 60W Protection Outdoor LED Street Lights NICHIA LEDs 60Watt CE Photocell Controller 2

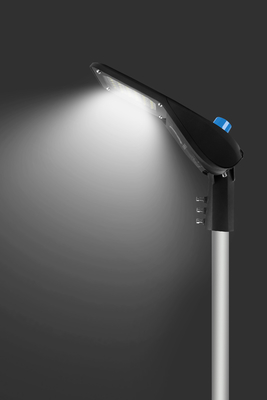

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

30W/60W Version
IP66 Protection Outdoor LED Street Lights Photocell Controller 60 Watt 140LPW

90W,120W/150W/180W Version

IP66 Protection Outdoor LED Street Lights Photocell Controller 60 Watt 140LPW

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
IP66 Protection Outdoor LED Street Lights Photocell Controller 60 Watt 140LPW

DALI Device
IP66 Protection Outdoor LED Street Lights Photocell Controller 60 Watt 140LPW

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Packaging Information
IP66 Protection Outdoor LED Street Lights Photocell Controller 60 Watt 140LPW

Shipment
IP66 IK08 60W Protection Outdoor LED Street Lights NICHIA LEDs 60Watt CE Photocell Controller 24

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
IP66 IK08 60W Protection Outdoor LED Street Lights NICHIA LEDs 60Watt CE Photocell Controller 25

Q1: What is the warranty for the LED street light?

RE: For the LED street light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: Is there a MOQ?

RE: No MOQ, Sample order for testing welcome.

Q3: How about production time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q4: Do you offer OEM or ODM?

RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:

1. We can provide you with our present products with your own label;

2. We can modify our products as your request;

3. We can even develop totally new products based on your design;

Q5: What Optics available?

RE: LED Street Light: Type I, Type II, Type III, Type IV, Type V for option.

Q6: Labeling ?

RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q7: Dimming functions?

RE: 1-10V / PWM / Resistance / Timer/ DALI dimmable driver available.

More information please contact us freely.

Let's meet DUALRAYS:

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

Attending Hong Kong lighting fair:

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

Yearly business visit to Europe:

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
