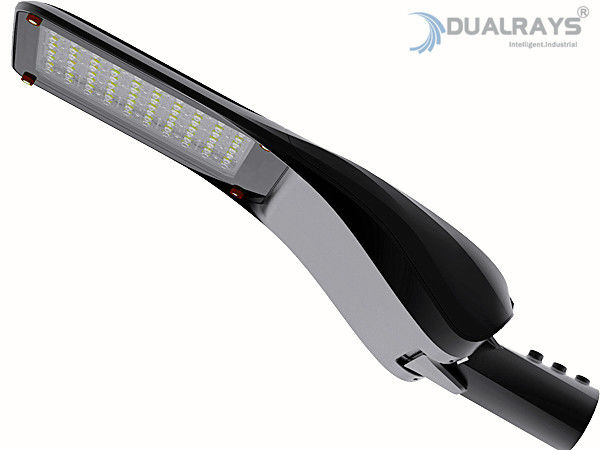

90W High Power Smart Street Light 140LPW Customized IP66 IK08 Smart Sensor

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS(OEM available)
Certification:	CE, ROHS, TUV/GS, LM79, LM80
Model Number:	DR-ST090-DGX

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 bussiness days
Payment Terms:	L/C, T/T, Western Union, paypal
Supply Ability:	500000pcs/month

Contact Now

Detailed Product Description

Input Voltage:	AC100-277V 50/60Hz	Driver:	Meanwell Or SOSEN
Applications:	Highway/Road/Street...	Power Factor:	0.95
CCT:	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K	Material:	Aluminium Alloy 6063+PC/toughen Glass
Power:	30W/60W/90W/120W/150W/180W	Lens:	Type I, Type II, Type III, Type IV, Type V
Beam Angle:	70°x150°/50°x120°	Efficiency:	140LPW
High Light:	led cobra head street light , decorative street light

Dualrays S4 Series 60W Intelligent LED Street Light 150LPW efficiency IP66 5 years guarantee

90W High Power Smart Street Light 140LPW Customized IP66 IK08 Smart Sensor 0

> LUXEON SMD3030+Meanwell/SOSEN driver, energy efficient - up to 150 lm/w;

> Good performance in heat dissipation;

> Superior PC reflector-optic for low glare applications,and toughened glass protection;

> IP66 and IK10 for road lighting application;

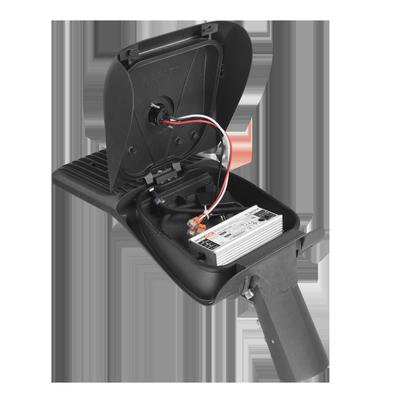

> Driver and housing separated by spacers;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty,7 or 10 years warranty negotiated;

Options:

> Driver and LEDs

> Smart control

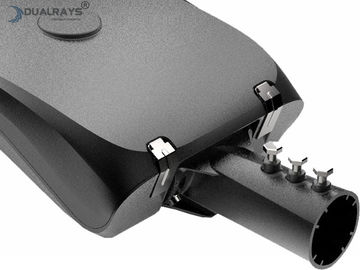

> Light pole adapter for different poles optional;

> Customized supported for special projects;

30W/60W Version
90W High Power Smart Street Light 140LPW Customized IP66 IK08 Smart Sensor 3

90W,120W/150W/180W Version

90W High Power Smart Street Light 140LPW Customized IP66 IK08 Smart Sensor 5

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
90W High Power Smart Street Light 140LPW Customized IP66 IK08 Smart Sensor 15

DALI Device
90W High Power Smart Street Light 140LPW Customized IP66 IK08 Smart Sensor 17

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

90W High Power Smart Street Light 140LPW Customized IP66 IK08 Smart Sensor 21
Packaging Information

Shipment
External Intelligent Led Street Lights 120W Protection Outdoor Public Projects
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.

External Intelligent Led Street Lights 120W Protection Outdoor Public Projects

Q1: What can you provide during your warranty period?

RE: Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: Protection rating of the light?

RE: IP66, IK08.

Q3: Can I buy 1pcs for sample first?

RE: Yes, 1pcs sample order for testing welcome.

Q4: How long is the production time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q5: Can you do DIAlux Simulation?

RE: Yes. We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: What Optics available?
