40W LED Tri Proof Light Underground Parking IP65 PC Housing Wide Range Working Temperature

> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;

> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;

> Single or Double wiring optional,backside cable output avaialable;

> IP65 and IK08 for all industrial areas of application;

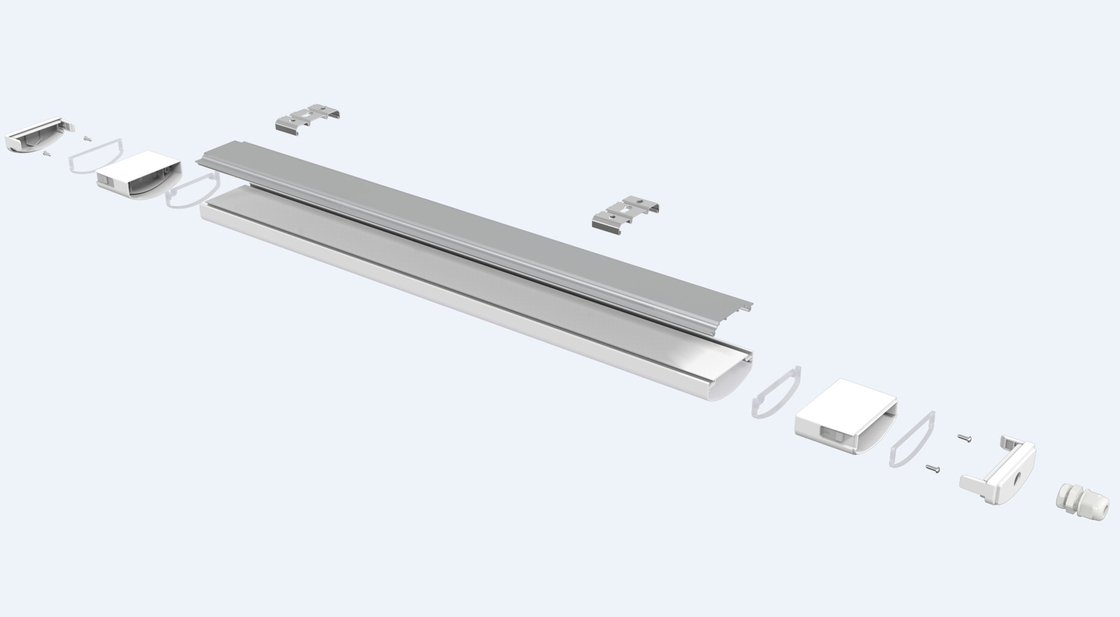

> 2 in 1 design concept,integrated PC cover and PCBA,seperated housing,convenient installation,labor cost saving;

> Multiple Link with double wiring;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;



> Hi-slim design,elegent and fashional;

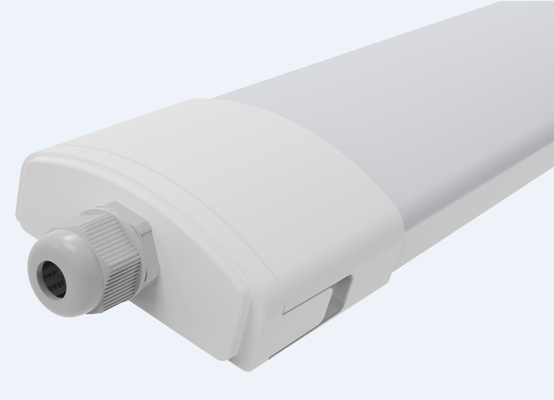

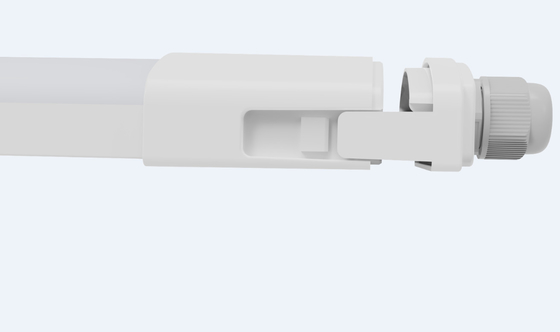

> Buckle Design End-cap,pretty Easy for Wiring and Installation;

> High Brightness SAN‘AN SMD2835 LEDs, DUALRAYS Own Developed High PF Flicker-free Driver;

> Full Plastic Material,Eco and Environment Friendly;

> IP65 / IK08 Protection;

> 120°beam angle;

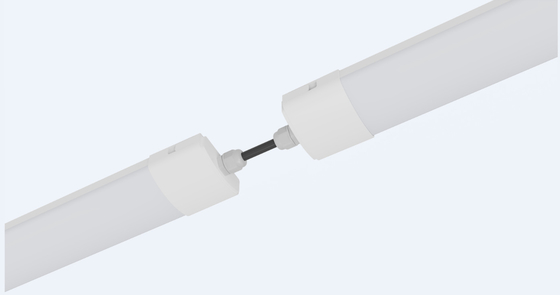

> Linkabkle Through Double End Wiring;

> Multiple Installations: Suspension, Wall Mounting

> No UV or IR and completely mercury free;

> L70/B20 @ 52.000h;

> Customized supported for special projects;

Options:

> Plug: European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable;

> Installation : Suspension, Wall Mounting;

> Replacement for fluorescent NCF;

> Workshops and warehouse;

> Garage and car parks;

> Sport facility;

> Corridor/Gallery/Corridor;

> Outdoor & Indoor Locations;

Model No.	DR-TP020-BHG2XPX	DR-TP030-BHG2XPX	DR-TP040-BHG2XPX	DR-TP040-BHG2XPX	DR-TP050-BHG2XPX
System Watts/W	20W	30W	40W	40W	50W
System Efficiency/LPW	120LPW / 140LPW Optioanl
Lumen Output/lm	2.400/2.800±5%	3.600/4.200±5%	4.800/5.600±5%	4.800/5.600±5%	6.000/7.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD2835
SDCM	<6
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>80Ra (>70Ra for Option)
Power Factor	>0.91
THD	<10%
Beam Angle(Optional)	120°
UGR	<22
LED Driver	DUALRAYS Own Developed High PF Interior Driver
IP Rating	IP65
IK Level	IK08
Dimming(Optional)	1-10V
Sensor(Optional)	No
Emergency(Optional)	No
Protection Class	ClassⅠ
Finishing Color(Optional)	White RAL9016 Optional
Material	PC+PC
Lifespan/hrs	52.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Suspension / Ceiling Mounting Optional
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available











Shipment

Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
