| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,ROHS,TUV/GS,LM79,LM80 |
| Model Number: | DR-SL120-DG2 |
| Minimum Order Quantity: | 2PCS |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 business days |
| Payment Terms: | T/T, L/C, Western Union,Paypal |
| Supply Ability: | 50,000pcs/month |
| Warranty: | 5 Years | Efficienncy: | 150LPW |
|---|---|---|---|
| Power Factor: | >0.95 | Life Span: | 50,000h |
| Material: | Die-cast Aluminum | Power: | 30W/60W/90W/120W/150W/180W |
| High Light: | warm white led street lights,decorative street light |
||
Aluminum Housing
Exclusive agent policy
The rights and responsibilities to the exclusive agent:
(1) The exclusive agent has the right to deal with all the inquiries from his area except the inquiries from several old customers, we promise that the prices we offer to the exclusive agent will be not higher than the prices we offered to the old customers. We shall offer the detailed information of the old customers before we sign the contract with exclusive agent.
(2) The exclusive agent should arrange their technical staff to our company to for training every half year, to learn the latest LED lighting technology.
(3) The exclusive agent should arrange their staff to visit at factory at least one time every year.
> Roadways.
> Avenues.
> Walkways.
> Loading Area.
> Parking lot.
> Playground.
> Sport and Stadium.
|
Model No.
|
DR-SSL020-EGXP | DR-SSL030-EGXP | DR-SSL040-EGXP |
|
System Watts/W
|
20W
|
30W
|
40W
|
|

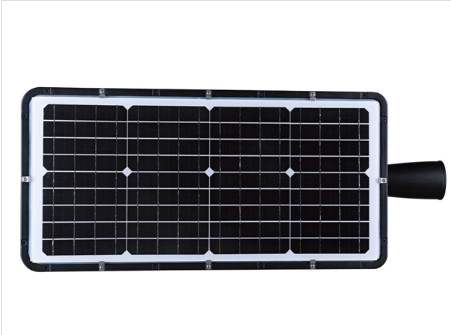

Solar PV (Monocrystalline)
|
21W
|
33W
|
40W
|
|
Battery (Lithium Iron Phosphate)
|
12.8V/20A | 12.8V/30A | 12.8V/40A |
|
System Efficiency/LPW
|
130LPW / 160 LPW Optional | ||
|
Lumen Output/lm
|
2.600/3.200±5% | 3.900/4.800±5% | 4.800/6.400±5% |
|

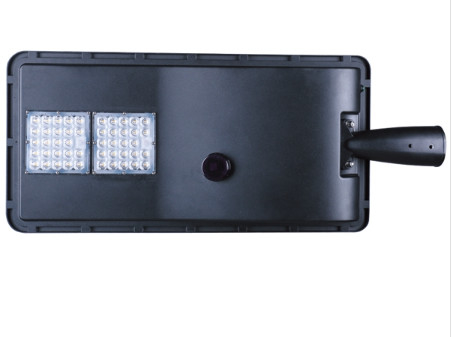

LEDs Light Source
|
SMD3030/SMD5050 Optional | ||
|
Back UP (Intelligent Model)
|
4~5 Days | ||
|
Back UP (Full Power)
|
>12 Hrs | ||
|
SDCM
|
<6
|
||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | ||
|
CRI/Ra
|
>70Ra (>80Ra for Option) | ||
|
Installation Height
|
4~8m | ||
|
THD
|
<10% | ||
|
Beam Angle(Optional)
|
120°/TypeⅡ(Medium)/TypeⅢ(Small)/TypeⅣ /TypeⅤ (Small) Optional | ||
|
Control Mode
|

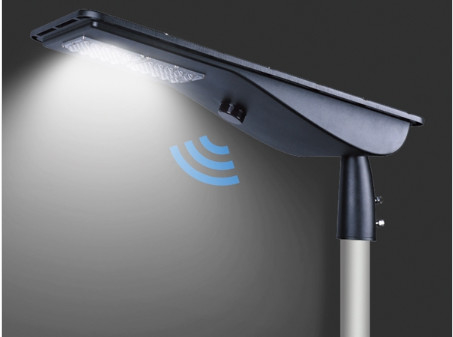

Light Control + Microwave Sensor | ||
|
IP Rating
|
IP66 | ||
|
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | ||
|
Material
|
Aluminum+PC+Toughened Glass | ||
|
Lifespan/hrs
|
60.000 Hrs (Ta=30℃@L70) | ||
|
Operation Temp/℃
|
-15°C to + 50°C(5°F to 122°F) | ||
|
Storage Temp/℃
|
- 15°C to + 65°C(5°F to 149°F) | ||
|
Pipe Diameter
|
φ60mm | ||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | ||
1.How many years can Dualrays provide for the warranty?
3-5 years from the production date.
2.what’s the payment methods you can accept ?
RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment methiod is T/T for bulk orders,30% T/T in advance,balance
70% before shipment The bank information is written in the PI.
3.Can i have samples to test ?
RE: Yes,sure. Welcome to order samples for evaluation before bulk order.
4.Why we use the high power LED ?
RE: A high power LED, sometimes referred to as a power LED, is one that is driven at current of 350mA or higher.
5.How to explain “ZigBee“ ?
RE: A low -power ,low date rate, local area wireless network; ideal for lighting control.
6.14.How long do LEDs last ?
RE: LEDs are rated by manufacturers to operate under normal conditions or 50000 hours of continuous use. As LEDs get older, they tend to dim and fade but aren’t susceptible to blinking like incandescent.
