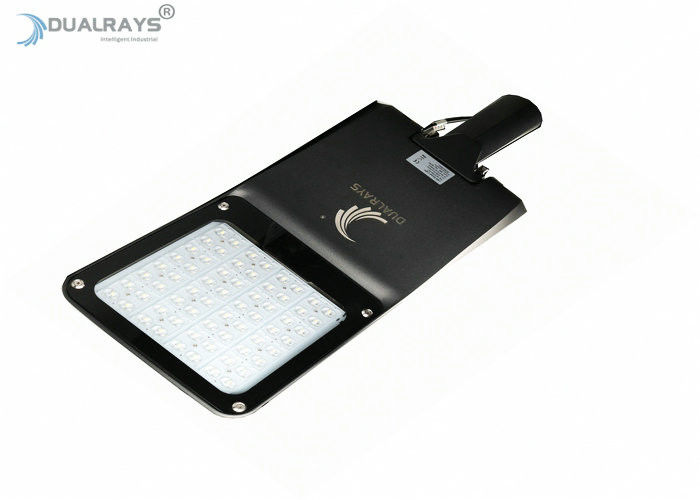

Intelligent Dimming Control Outdoor LED Street Lights 90W 150LPW Efficiency IP66

Intelligent Dimming Control Outdoor LED Street Lights 90W 150LPW Efficiency IP66

Outdoor LED Street Lights Features:

* Rugged die-cast aluminum housing with corrosion resistant hardware

* Super durable powder coating finish withstand extreme climate changes without cracking or peeling;

* Tool-less access to the down-opening driver door makes easy maintenance and 10KV/20KV SPD for option;

* High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 LPW;

* Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

* Zigbee module (Single-lamp Controller and centralized manager) with software for option.

The policy about ordinary agent:

1 .Conditions to be ordinary agent:

(1). To be the agent of our company, for the customer, the LED lighting should be within its main business.

(2). To be the agent of our company, the customer has to provide the relevant business license, legal certificate.

(3). The number of the staff which is specialized to dealing the LED display business should be at least three, including one technician, one sales man, one supervisor.

(4). The customer should provide the commercial plan which includes the general introduction about the enterprise, local market analysis, peer competition situation, market promotion plan, and the annual sales target based on this plan.

(5). The company registered capital ofis at least USD100000.

> Roadways.

> Avenues.

> Walkways.

> Loading Area.

> Parking lot.

> Playground.

> Sport and Stadium.

Model No.	DR-ST030-DGXX	DR-ST060-DGXX	DR-ST090-DGXX	DR-ST120-DGXX	DR-ST150-DGXX	DR-ST180-DGXX
System Watts/W	30W	60W	90W	120W	150W	180W
System Efficiency/LPW	120LPW/150LPW Optional
Lumen Output/lm	3.600/4.500±5%	7.200/9.000±5%	10.800/13.500±5%	14.400/18.000±5%	18.000/22.500±5%	21.600/27.000±5%
Pipe Diameter	φ60mm			φ60mm
Rated Input Voltage/V	AC100~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD3030/SMD5050 Optional
SDCM	<6
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	TypeⅠ/TypeⅡ( Long & Medium) /TypeⅢ(Medium) / TypeⅣ(Medium) / TypeⅤ(Medium)
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 10KV(PHILIPS) or 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG,Sosen
IP Rating	IP66
IK Level	IK08
Protection Class	0/1-10V/PWM/DALI/Zigbee
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC+Toughened Glass
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

30W/60W Version

90W,120W/150W/180W Version

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface

Q1. What’s LED Chips ?

RE: The light producing semiconductor device that may or may not be incorporated into an LED.



Q2. How long do LEDs last ?

RE: LEDs are rated by manufacturers to operate under normal conditions or 50000 hours of continuous use. As LEDs get older, they tend to dim and fade but aren’t susceptible to blinking like incandescent.



Q3. How is your production capacity?

RE: Our output value is 10 million USD.



Q4. How many engineers of your R&D team?

RE: 10-15 R&D staffs with more than 10 years experience in LED luminaires industry.
