Name: Good Heat Dissipation High Power Smart Led Light For Street 140LPW CE RoHS Approval
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-ST180-DGX
Availability: InStock

Home Products S4 LED Street Light

Good Heat Dissipation High Power Smart Led Light For Street 140LPW CE RoHS Approval

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS(OEM available)
Certification:	CE, ROHS, TUV/GS, LM79, LM80
Model Number:	DR-ST180-DGX

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 bussiness days
Payment Terms:	L/C, T/T, Western Union, paypal
Supply Ability:	500000pcs/month

Contact Now

Detailed Product Description

Input Voltage:	AC95~277V 50/60Hz	Driver:	Meanwell/Sosen
CCT:	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K	Dimming Function:	1-10VDC /PWM / Resistance
IP Rating:	IP66	IK Rating:	IK10
Material:	AL+PC	Beam Angle:	50(V)120(H)°/75(V)150°(H) Optic For Option
Highlight:	led cobra head street light , warm white led street lights

DUALRAYS Good Heat Dissipation High Power Smart Led Light For Street 140LPW CE RoSH Approval

Good Heat Dissipation High Power Smart Led Light For Street 140LPW CE RoHS Approval 0

* Die-cast aluminum 6063 housing, corrosion resistant hardware, durable powder coating finish withstand harsh environment changes without damaging;

* Air-flow through heat sink inside provides perfect heat management, lighter but stronger construction.

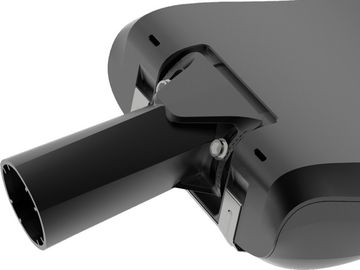

* Adjustable degree of ±10°/-90°(30W/60W) or +15°/-90°(>60W);

* Professional optics design, Type I, Type II, Type III, Type IV, Type V;

* Top brand conponents, LUMILEDS LUXEON LEDs light source,Meanwell ELG/HLG driver,durable, long life span;

* High output lighting efficiency 140lm/W, high Color Rendering Index (CRI>70/80Ra), excellent heat dissipation,low light decay;.

* Easy maintenance and installation, operation;
* Multi beam angle for different occassions;

* Intelligent devices: dimming control available,photocell controller is available;

* Maintenance Free,IP66 protection,IK08 vibration grade

Specification: DUALRAYS S4 Series LED Street Light Specification....

Our Advantages:

* Professional team: >10 years experience, own factory, >10 engineers, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend the best product;

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

30W/60W Version
Good Heat Dissipation High Power Smart Led Light For Street 140LPW CE RoHS Approval 4

90W,120W/150W/180W Version

Good Heat Dissipation High Power Smart Led Light For Street 140LPW CE RoHS Approval 6

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
Good Heat Dissipation High Power Smart Led Light For Street 140LPW CE RoHS Approval 16

DALI Device
Good Heat Dissipation High Power Smart Led Light For Street 140LPW CE RoHS Approval 18

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Good Heat Dissipation High Power Smart Led Light For Street 140LPW CE RoHS Approval 22
Packaging Information

Shipment
Good Heat Dissipation High Power Smart Led Light For Street 140LPW CE RoHS Approval 24
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Good Heat Dissipation High Power Smart Led Light For Street 140LPW CE RoHS Approval 25

Q1: What is the warranty?

RE: 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: Where to buy?

RE: Welcome to send us your inquiry below.

Q3: Is there a MOQ?

RE: No MOQ, Sample order for testing welcome.

Q4: What’s your shipping method ?

RE: UPS, DHL, Fedex, TNT or Shipping by Air,by train(for Europe) or by sea for option.

Q5: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: What Optics available?

RE: LED Street Light: Type I, Type II, Type III, Type IV, Type V for option.
