| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-TPL040-BG41 |
| Minimum Order Quantity: | 8PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Netural Package/OEM and ODM Package Available,8PCS/CNT |
| Delivery Time: | 5-15 business days |
| Payment Terms: | T/T, L/C, Western Union,Paypal |
| Supply Ability: | 100,000pcs/month |
| Power Factor: | >0.96 | CRI: | >83 |
|---|---|---|---|
| Efficiency: | 160LPW | AC Input Vol: | AC 200-277V,50/60Hz |
| Beam Angle: | 120° | Finishing Color(Optional): | White RAL9016 |
| High Light: | explosion proof led lights,dust proof light fixture |
||

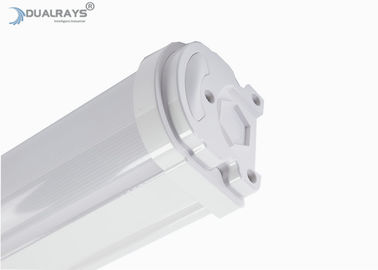

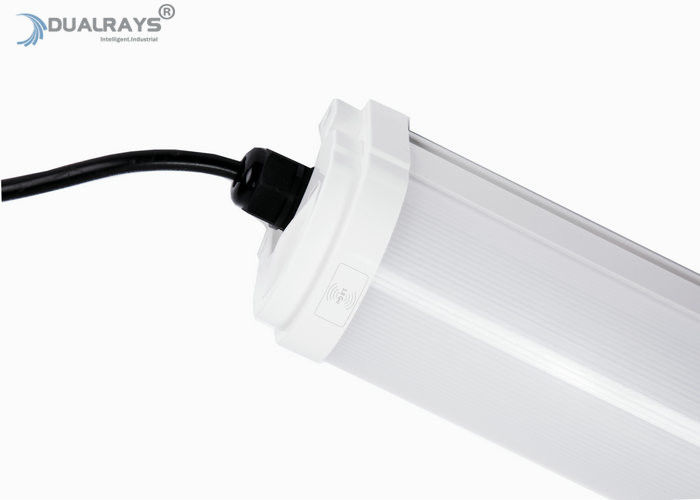

4ft 40W 160LPW Efficiency LED Tri Proof Light PFC function 0-10V DALI dimming IP66 IK10
LED Tri Proof Light Feature:
* 3 to 5 years guarantee;
* Luminaire coated in an environmentally friendly polyester powder formulated in a silvery,black and white finish;
* Built-in breathable valve to ensure excellent heat dissipation ability;
* Water-proof; Dust-proof; Damp-proof; Vapor-proof;
* 270°adjustable European Bracket for actual lighting direction;
* Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160LPW.
| Item | Symbol | 2ft/20W | 4ft/40W | 5ft/50W |
| Model No | / | DR-TPL020-BG21 | DR-TPL040-BG41 | DR-TPL050-BG51 |
| Rated Power | W | 20 | 40 | 50 |
| LEDs Typ/Qty |
SMD 2835 |
144PCS | 273PCS | 312 PCS |
| Luminous Flux |
Clear Frost |
3,200±5% 3,000±5% |
6,400±5% 6,000±5% |
8,000±5% 7,500±5% |
| Efficiency |
Clear Frost |
Typ.160 Typ.150 |
Typ.160 Typ.150 |
Typ.160 Typ.150 |
| Lumen Maintenance @ 6000 hrs | Hours | >80% | ||
| Switching Cycle before Failure | Times | 100,000 | ||
| Life Span | Hours | 50,000 | ||
| Warranty | Years | 3 years | ||
| Operation Temperature | ℃ | -15 ~ +50℃ | ||
| Storage Temperature | ℃ | -25 ~ +55℃ | ||
|
Character/Length
|
2ft
|
4ft
|
5ft
|
|
|
A
|
600mm
|
1200mm
|
1500mm
|
|
|
B
|
74mm
|
74mm
|
74mm
|
|
|
C
|
74m
|
74mm
|
74mm
|
Shipment
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q1: Is there a MOQ?
RE: No MOQ, Sample order for testing is welcome.
Q2: Do you offer OEM or ODM?
RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
1. We can provide you with our present products with your own label;
2. We can modify our products as your request;
3. We can even develop totally new products based on your design;
Q3: Finished color?
RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.
Q4: Is there cheap shipping cost to import to our country?
RE: For small order, express will be best. And for bulk order,ship by sea or train(Europe destination) is the best, but take much time. For urgent orders, we suggest via air to airport plus our ship partner send to your door.
Q5: Does Dualrays have the ability to do independence and development ?
RE: Our engineer department have 12 people. We have the research and development capability. We also collect regularly each customer feedback. We have product improvement and new product development.
Q6. What’s CCT(colour temperature) ?
RE: The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then orange, and then white as the temperature increases.
Q7. What’s the fire rating categories ?
RE: VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.
HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.
TP(b)-Slow burning rate <50mm / min for thickness <3mm.
TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.
ISO9001:2008 ISO14001:2004
The best quality innovation award Shenzhen Hi-tech Enterprise
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
