Name: 35W Linear LED Module for 2x36W Fluorescent Tube Sets Replacement
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-RM075D-NN8XX-05WH-PEEUXX01
Price: negotiable USD
Availability: InStock

Home Products Tailored Solution

35W Linear LED Module for 2x36W Fluorescent Tube Sets Replacement

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS/OEM/ODM/OBM Optional
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-RM075D-NN8XX-05WH-PEEUXX01
Document:	DUALRAYS LIGHTING Catalogue...26.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	9PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50,000PCS/Month

Contact Now

Detailed Product Description

CCT:	3000K \| 4000K \| 5000K \| 5700K \|6500K Optional Or 3CCT	CRI:	>80
Life Span:	>50000h	Housing:	Extruted Aluminium According To The EN755 Standard
Main Voltage:	220~240VAC/ 50/60Hz, 180-264VDC	CCT (Correlated Color Temperature):	3000K \| 4000K \| 5000K \| 5700K \|6500K Optional Or 3CCT
Beam Angle:	30°/60°/90°/110°/Double 25°/25° L/25° R Optional	Recommended Mounted Height:	2 - 12 Meters
Highlight:	linear lighting systems , linear ceiling light

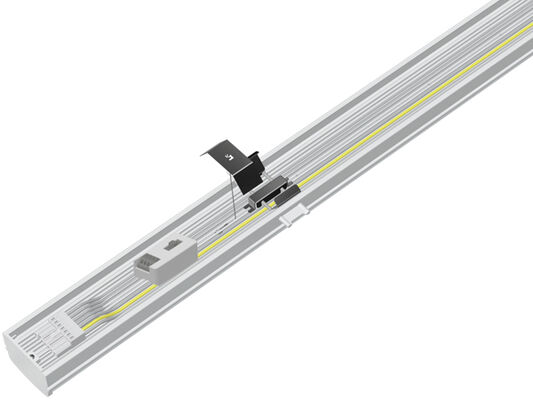

35W Linear LED Module for 2x36W Fluorescent Tube Sets Replacement

Item	Symbol	Description
Model No	/	DR-ULM035-DE5C

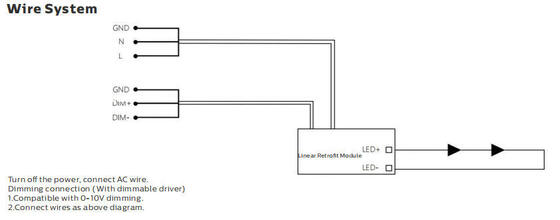

Dimming Function	/	DALI/1-10V
Color Index	Ra	>80Ra

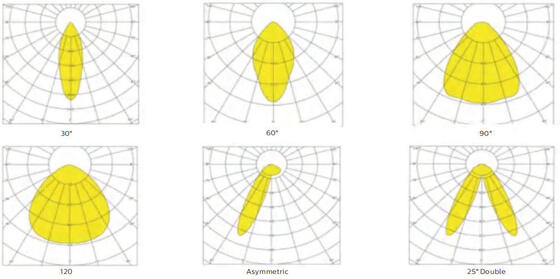

Beam Angle	Degree	30°/60°/90°/120°/Double Asy 25°/Single Asy 25°
AC Input Vol	V	AC220-240V/DC180-264V
Lumen Maintenance @ 50000 hrs	Hours	>80%
Compatibility	Brands	Universal Brands in Europe Market
Life Span at L80	Hours	50,000
Warranty	Years	5 years
Operation Temperature	℃	-40 ~ +55℃
Storage Temperature	℃	-40 ~ +85℃

Feature

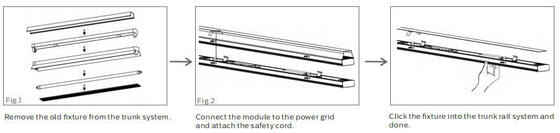

a. Universal Easy exchanging LED linear module was adopted by Germany goods warehouse Fluorescent tubes replacement;

b. Compatible with the lastest 25 years installation Trunking Rails in Europe

c. The complete fixtures includes linear module, trunking rail, optional functions and installation accessories, the quotation above only means linear module, extra function or installationkits ,please contact us for quotation;

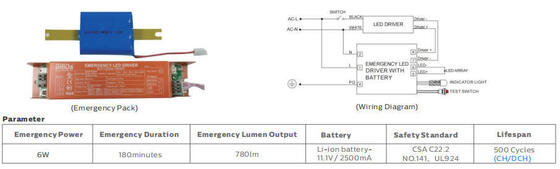

d. Customized dimming type or emergency function,please contact us for confirmation;

mtxx66

mtxx58 mtxx68

Advantage

* Powerful production capacity and QC management system;

* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;

* All our LED liminaires comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;

* Supply different version with different configurations for our customers.

Application

* Office

* Workshops and warehouse

* Supermarkets
