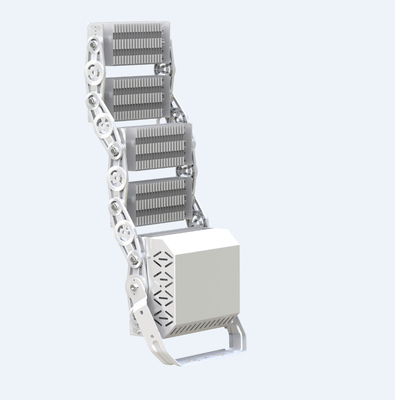

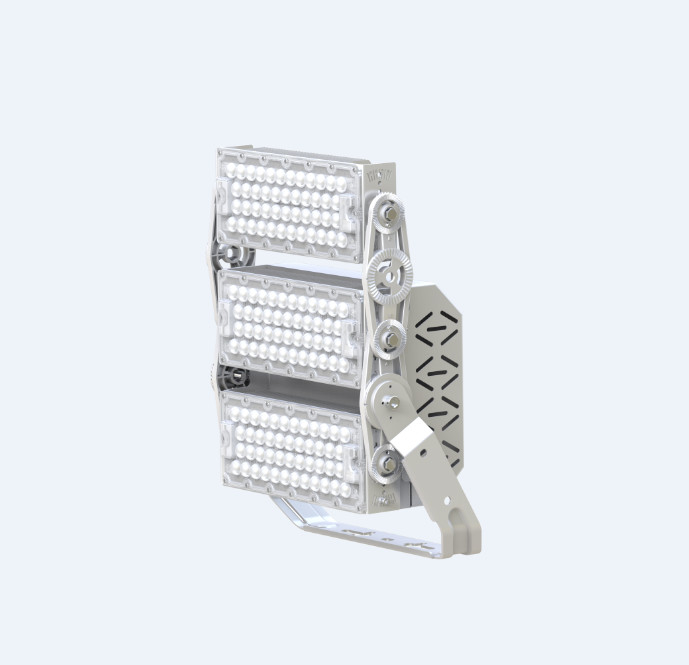

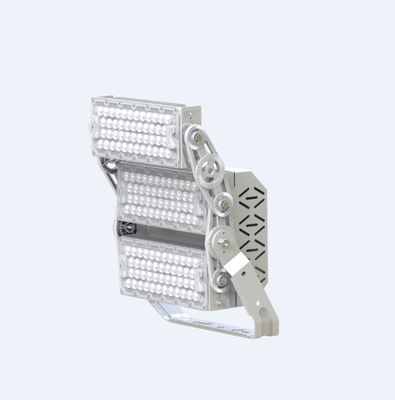

LED modular ground floodlights 150LPW Flood Light IP66 with SMD3030 5050 LED chips

LED modular ground floodlights 150LPW Flood Light IP66 with SMD3030 5050 LED chips

  • LED modular ground floodlights 150LPW Flood Light IP66 with SMD3030 5050 LED chips
  • LED modular ground floodlights 150LPW Flood Light IP66 with SMD3030 5050 LED chips
  • LED modular ground floodlights 150LPW Flood Light IP66 with SMD3030 5050 LED chips
LED modular ground floodlights 150LPW Flood Light IP66 with SMD3030 5050 LED chips
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-FL100-DGXP
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Please inquiry for latest price
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Input Voltage: AC100~277v 50/60Hz Driver: Meanwell/Sosen
PF: 0.95 CCT: WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
LEDs: SMD 3030 Beam Angle: 10°/ 25°/ 45°/ 60°/ 90°/ 30*70° / 80*140° / 60*130°
Protection: IP66; IK08 Installations: Ground/Wall/Ceiling/Pipe
Operation Temperature: -40℃--50℃ Warranty: 5 Years
High Light:

outdoor led flood lights

,

led yard flood lights

LED modular ground floodlights 150LPW Flood Light IP66 with SMD3030 5050 LED chips

Outdoor LED Floodlight 50W 120LM/W High CCT IP66 Sports Applied 5 Years Guarantee
LED modular ground floodlights 150LPW Flood Light IP66 with SMD3030 5050 LED chips 1

> Strong housing of alluminium alloy 6063, durable and good performance of heat dissipation;
> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;
> Superior PC reflector-optic for low glare applications;
> IP66 and IK10 for all outdoor/sports areas of application;
> Driver and housing separated by spacers;
> 10°/25°/45°/60°/90°/30*70°/80*140°/60*130°beam angle optional;
> D-Mark tested for the use in paper production, wood processing etc;
> No UV or IR and completely mercury free;

Options:
> Driver and LED light source;
> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;
> ±90° adjustable European bracket;
> Installation:Ground Mounting, Wall Mounting, Ceiling Mounting,pipe mounting;
> Customized supported for special projects;

Why choosing DUALRAYS:
Professional team: >10 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;

* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;

Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;

All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.

LED modular ground floodlights 150LPW Flood Light IP66 with SMD3030 5050 LED chips 2

Model No. DR-FL250-DGXP
System Watts/W 250W
System Efficiency/LPW 150LPW
Lumen Output/lm 37.500±5%
Dimming(Optional) 0/1-10V/PWM/DALI/Zigbee
Installation(Optional) Ground Mounting, Wall Mounting, Ceiling Mounting,Pipe Mounting
Certificate CE(EMC+LVD),RoHS,D-Mark,SAA,RCM Available
Finishing Color(Optional) Black RAL9017 / White RAL9016
Protection Class ClassⅠ
LED Driver Meanwell XLG/ELG/HLG,Sosen
Surge Protection 6~10KV SPD Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
Rated Input Voltage/V AC100~277V 50/60Hz
LEDs Light Source SMD3030
SDCM <5
CCT/K 3000K/4000K/5000K/5700K/6500K
Outdoor LED Floodlight 50W 120LM/W High CCT IP66 Sports Applied 5 Years Guarantee
> Advertising, Billboard lighting
> Building exterior lighting
> Warehouse, Factory, stair corridors lighting
> Large and small parking, Square, Stadium lighting etc
> Bridges and public places, as well as other industrial and commercial lighting
> Gardens lighting
> Football court,tennis court ect sport lighting area
> Suitable for wet locationsOutdoor LED Floodlight 50W 120LM/W High CCT IP66 Sports Applied 5 Years Guarantee
LED modular ground floodlights 150LPW Flood Light IP66 with SMD3030 5050 LED chips 5 LED modular ground floodlights 150LPW Flood Light IP66 with SMD3030 5050 LED chips 6 Outdoor LED Floodlight 50W 120LM/W High CCT IP66 Sports Applied 5 Years Guarantee
LED modular ground floodlights 150LPW Flood Light IP66 with SMD3030 5050 LED chips 8 LED modular ground floodlights 150LPW Flood Light IP66 with SMD3030 5050 LED chips 9
Outdoor LED Floodlight 50W 120LM/W High CCT IP66 Sports Applied 5 Years Guarantee
Outdoor LED Floodlight 50W 120LM/W High CCT IP66 Sports Applied 5 Years Guarantee
Outdoor LED Floodlight 50W 120LM/W High CCT IP66 Sports Applied 5 Years Guarantee
Outdoor LED Floodlight 50W 120LM/W High CCT IP66 Sports Applied 5 Years Guarantee
Outdoor LED Floodlight 50W 120LM/W High CCT IP66 Sports Applied 5 Years Guarantee
Outdoor LED Floodlight 50W 120LM/W High CCT IP66 Sports Applied 5 Years Guarantee




High Output SMD LED Floodlight  , SMD LED Lights 120LPW Efficiency 10 Watt

Q1: What is the warranty for the F4 flood light?
RE: For the F4 Series SMD LED flood light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What’s your shipping method ?
RE: UPS, DHL, Fedex, TNT or Shipping by Air,by train(for Europe) or by sea for option.

Q3: Can I start with 1pcs for testing?
RE: Yes, 1pcs sample order for testing welcome.

Q4: What is the production time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.



Q5: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q6: Do you offer mounting accessories?

RE: Yes, please contact us for details.



Q7: Do you offer OEM or ODM?
RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
1. We can provide you with our present products with your own label;
2. We can modify our products as your request;
3. We can even develop totally new products based on your design;

Q8: What‘re the chips and drivers used?
RE: High brightness LUMILEDS LEDs light source,Meanwell/Sose drivers for standard configuration.

Q9: Labeling ?
RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).

Q10: Dimming functions?
RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.

For more, please contact us freely.
