Name: 180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-ST180-DGX
Availability: InStock

Home Products S4 LED Street Light

180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS
Certification:	CE, ROHS, TUV/GS, LM79, LM80
Model Number:	DR-ST180-DGX

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package,color box package,1PCS/CTN,L1040*W490xH200mm
Delivery Time:	5-15 bussiness days
Payment Terms:	L/C, T/T, Western Union, paypal
Supply Ability:	500000pcs/month

Contact Now

Detailed Product Description

Input Voltage:	AC95~277V 50/60Hz	Driver:	Meanwell Or SOSEN
Efficiency:	150LPW	Power Factor:	0.95
CCT:	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K	Dimming Function:	1-10VDC /PWM / Resistance
Package:	Normal Export Carton Box	Power:	30W/60W/90W/120W/150W/180W
Surge Protector Device:	10KV/20KV	Material:	Aluminium Alloy 6063+PC
Highlight:	warm white led street lights , decorative street light

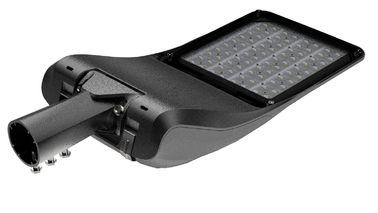

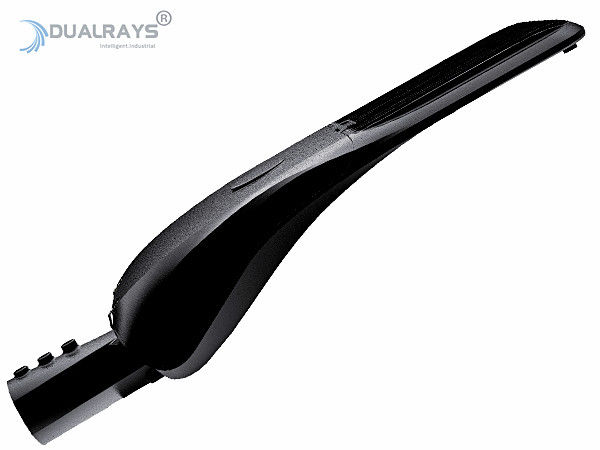

180W High Power Led Street Light 140LPW IP66 LEDs IK08 50000H Life Span CE RoHS Approval

180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval 0

> Well-known brand of driver and LEDs, support stable working and long life of the luminair;

> Strong Al housing, fluent streamline outlook, provide good heat dissipation;

> Superior PC reflector-optic for low glare applications,and toughened glass protection;

> IP66 and IK10 for road lighting application;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for options;

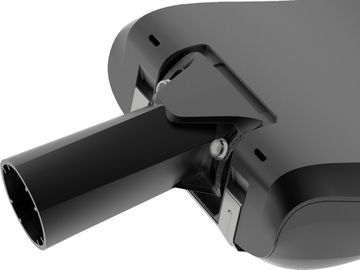

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> Normally 5 years warranty,7 or 10 years warranty negotiated;

Options:

> Driver and LEDs, to meet your requirements and lower the budget;

> Installations for option;

> Smart control and surge protector device available;

> Light pole adapter for different poles optional;

> Customized supported for special projects;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

30W/60W Version
180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval 4

90W,120W/150W/180W Version

180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval 6

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval 16

DALI Device
180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval 18

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Packaging Information
180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval 23

Shipment
180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval 24
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval 25

Q1: What's the warranty?

RE: We provide 5 years warranty. We'll take responsibility of any quality problems during the period.

Q2: Is there a MOQ?

RE: 1 pcs sample order for testing welcome.

Q3: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q4: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q5: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q6: What Optics available?

RE: LED Street Light: Type I, Type II, Type III, Type IV, Type V for option.

Q7: Dimming functions?

RE: 1-10V / PWM / Resistance / Timer/ DALI dimmable driver available.

Q8: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q9:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

More details please feel free to contact.

180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval 28

180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval 29

180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval 30

180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval 31

180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval 32

180W High Power Led Street Light 140LPW IP66 IK08 50000H Life Span CE RoHS Approval 33

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED will serve you with heart and soul!
