Photocell controller Intelligent Led Street Lights 140LPW 150W Meanwell Driver IP66 IK10

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	DUALRAYS
Certification:	CE, ROHS, TUV/GS, LM79, LM80
Model Number:	DR-ST150-DGX

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 bussiness days
Payment Terms:	L/C, T/T, Western Union, paypal
Supply Ability:	500000pcs/month

Contact Now

Detailed Product Description

Input Voltage:	AC100~277V 50/60Hz	Driver:	Meanwell Or SOSEN
Power Efficiency:	92%	Power Factor:	0.95
Material:	Aluminium Alloy+PC	CCT:	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Lens:	Type I, Type II, Type III, Type IV, Type V	Beam Angle:	70°x150°/50°x120°
Power:	30W/60W/90W/120W/150W/180W	Efficiency:	150LPW
High Light:	warm white led street lights , decorative street light

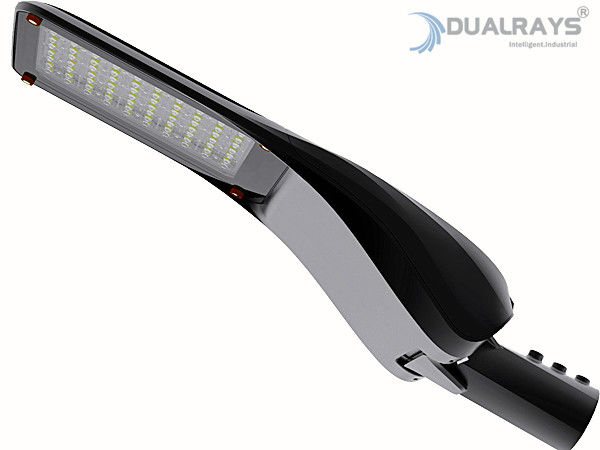

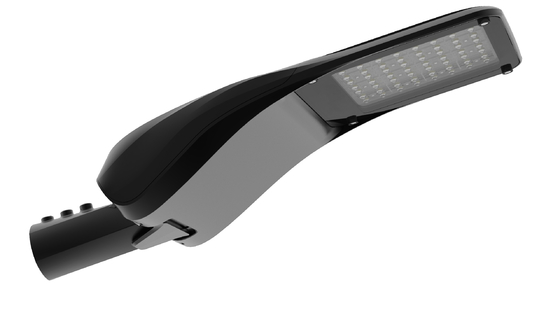

Dualrays S4 Series Intelligent LED Street Light 140LPW Efficiency IP66 5 Years Guarantee

180W IP66 Led Outdoor Street Lights NICHIA LEDs IK10 10KV/20KV SPD 50/60Hz

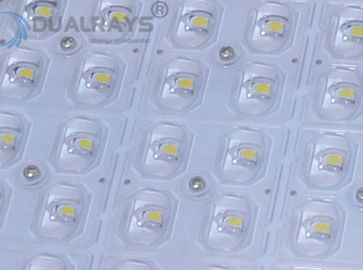

> Well-known brand of driver and LEDs, support stable working and long life of the luminair;

> Strong Al housing, fluent streamline outlook design, provide good heat dissipation;

> Superior PC reflector-optic for low glare applications,and toughened glass protection;

> IP66 and IK10 for road lighting application;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

Options:

> Driver and LEDs, to meet your requirements and lower the budget;

> Smart control and surge protector device available;

> Light pole adapter for different poles optional;

> Customized supported for special projects;

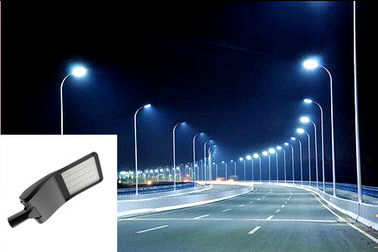

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

30W/60W Version
180W IP66 Led Outdoor Street Lights NICHIA LEDs IK10 10KV/20KV SPD 50/60Hz

90W,120W/150W/180W Version

180W IP66 Led Outdoor Street Lights NICHIA LEDs IK10 10KV/20KV SPD 50/60Hz

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
180W IP66 Led Outdoor Street Lights NICHIA LEDs IK10 10KV/20KV SPD 50/60Hz

DALI Device
180W IP66 Led Outdoor Street Lights NICHIA LEDs IK10 10KV/20KV SPD 50/60Hz

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Packaging Information
180W IP66 Led Outdoor Street Lights NICHIA LEDs IK10 10KV/20KV SPD 50/60Hz

Shipment
External Intelligent Led Street Lights 120W Protection Outdoor Public Projects
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
External Intelligent Led Street Lights 120W Protection Outdoor Public Projects

Q1: What's the warranty?

RE: We provide 5 years warranty. We'll take responsibility of any quality problems during the period.

Q2:How long for the delivery time?
RE: 3 to 5 working days for samples, massive orders is within 10-15 working days according to the quantity.30 days for customized products with opening new mold.Urgent delivery time requirement is available,we will try our best to help you.

Q3: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q4: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q5: Can I only buy the housing separately?
RE:Sorry. We only supply the whole luminaire fixture.

Q6: What Optics available?

RE: LED Street Light: Type I, Type II, Type III, Type IV, Type V for option.

Q14: Dimming functions?

RE: 1-10V / PWM / Resistance / Timer/ DALI dimmable driver available.

Q7: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q8:Can we get support if we have our own market position?

RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.

More details please feel free to contact.

Let's meet DUALRAYS.

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

External Intelligent Led Street Lights 120W Protection Outdoor Public Projects
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
