Name: IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-ST090-DGX
Availability: InStock

Home Products S4 LED Street Light

IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle

Product Details:

Place of Origin:	Shenzhen, CHINA
Brand Name:	DUALRAYS
Certification:	CE, ROHS, TUV/GS, LM79, LM80
Model Number:	DR-ST090-DGX

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	Please inquiry for latest price
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	7-15 bussiness days
Payment Terms:	L/C, T/T, Western Union, paypal
Supply Ability:	500000pcs/month

Contact Now

Detailed Product Description

Input Voltage:	AC100~277V 50/60Hz	Driver:	Meanwell/Sosen
Power Factor:	0.95	CCT:	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Protection:	IP66; IK08	Material:	Aluminium Alloy 6063+PC
Efficiency:	150LPW	Power:	30W/60W/90W/120W/150W/180W
Operation Temperature:	-40℃--50℃	Applications:	Street/Road/Exterior Areas
Highlight:	led cobra head street light , decorative street light

IP66 Outside Led Street Luminaire 140LPW IK10 Professional Multi Beam Angle

IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 0

> Well-known brand of driver and LEDs, support stable working and long life of the luminair;

> Strong Al housing, fluent streamline outlook, provide good heat dissipation;

> Superior PC reflector-optic for low glare applications,and toughened glass protection;

> IP66 and IK10 for road lighting application;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

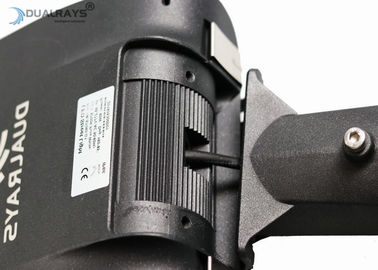

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> Normally 5 years warranty,7 or 10 years warranty negotiated;

Options:

> Driver and LEDs, to meet your requirements and lower the budget;

> Smart control and surge protector device available;

> Light pole adapter for different poles optional;

> Customized supported for special projects;

Our Advantages:

* Tens of R&D engineers with more than 10 years experience in LED luminaries industry;

* Powerful production capacity and QC management system;

* Provide DIALux software for lighting design project for our customers;

* Have branch office and warehouse in Netherlands with more than 4000㎡. 3 days delivery time, fast reaction.

* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;

* Our service and products are recognized from famous enterprises such as Jalasoft, Mercedes-Benz, Rewe, Nahkauf, Hagebau,etc.

* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

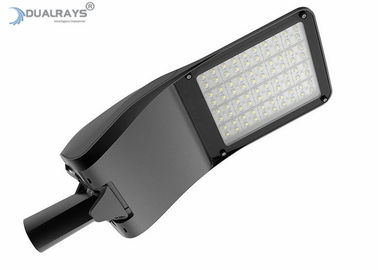

30W/60W Version
IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 4

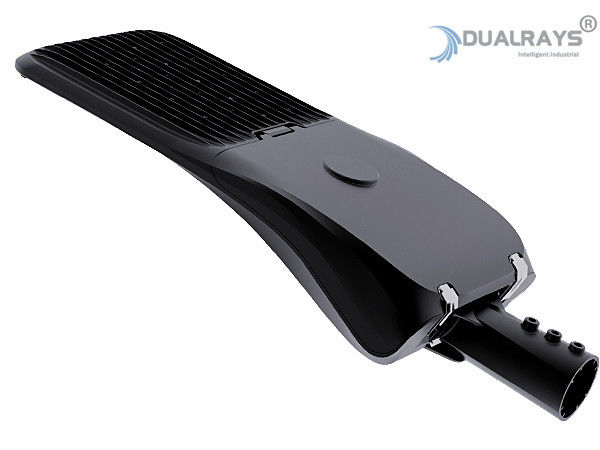

90W,120W/150W/180W Version

IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 6

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 16

DALI Device
IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 18

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

Packaging Information
IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 23

Shipment
IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 24
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 25

Q1: What's the warranty?

RE: We provide 5 years warranty. We'll take responsibility of any quality problems during the period.

Q2: Is there a MOQ?

RE: 1 pcs sample order for testing welcome.

Q3: What is the Lead time?

RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.

Q4: Can you do DIAlux Simulation?

RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.

Q5: Do you offer mounting accessories?

RE: Yes, please contact us for details.

Q6: What Optics available?

RE: LED Street Light: Type I, Type II, Type III, Type IV, Type V for option.

Q7: Is there cheap shipping cost to import to our country?

RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.

Q8: What’s your shipping method ?
RE: UPS, DHL, Fedex, TNT or Shipping by Air,by train(for Europe) or by sea for option.

Q9: Dimming functions?

RE: 1-10V / PWM / Resistance / Timer/ DALI dimmable driver available.

More details please feel free to contact.

IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 26

IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 27

IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 28

IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 29

IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 30

IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 31

IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 32

IP66 Outdoor Led Street Luminaire 90W 150LPW IK10 Professional Multi Beam Angle 33
