Dust Proof Easy Operation 40W 6400lm LED Tri Proof Light Buckle End-Cup For Easy Installation

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-TP040-EG4X

Payment & Shipping Terms:

Minimum Order Quantity:	4pcs
Price:	negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Wattage:	40W	Length:	4ft
Installation:	Ceiling/Suspending	CCT:	6500K
Warranty:	5 Years	Housing:	Die-Casting Al
High Light:	dust proof light fixture , vapor proof led light

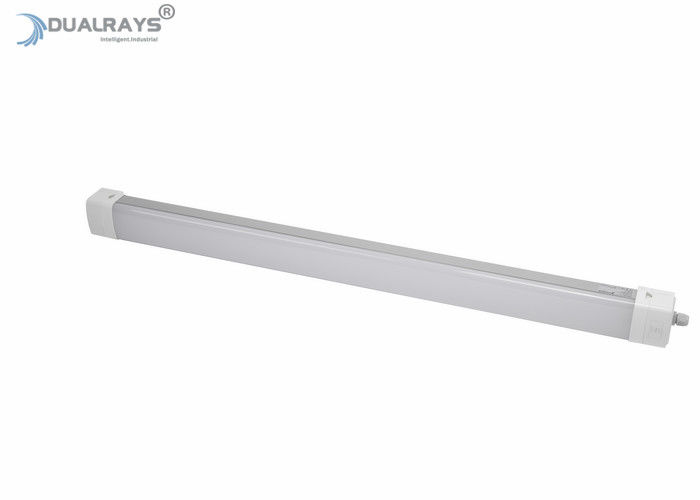

Dust Proof Easy Operation 40W 6400lm LED Tri-proof Light

> IP65 and IK08 for all industrial areas of application;

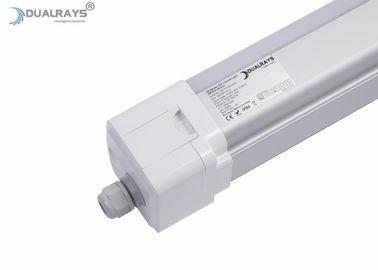

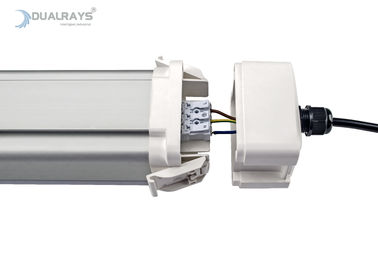

> Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;

> L80>50.000h;

> 5 years warranty;
Options:

> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.

> Installation: Suspension, Ceilign Mounted and adjustable surface mount.
> Single or double wiring and connection.

> Customized supported for special projects.

* Garage and car parks

* Sport facility

* Corridor/Gallery/Corridor

* Outdoor & Indoor Locations

600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty

Model No.	DR-TP020-EG2XPX	DR-TP040-EG4XPX	DR-TP050-EG4XPX	DR-TP060-EG5XPX	DR-TP080-EG5XPX
System Watts/W	20W	40W	50W	60W	80W
System Efficiency/LPW	130LPW / 160LPW Optioanl
Lumen Output/lm	2.600/3.200±5%	5.200/6.400±5%	6.500/8.000±5%	7.800/9.600±5%	10.400/12.800±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source	SMD2835
SDCM	<6
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>80Ra (>70Ra for Option)
Power Factor	>0.91
THD	<10%
Beam Angle(Optional)	120°
UGR	<22
LED Driver	BOKE Fixed Power/ DIP Switch Power Adjustable Optional
IP Rating	IP65
IK Level	IK08
Dimming(Optional)	1-10V, DALI,Zigbee
Sensor(Optional)	Daylight sensor/Microwave Sensor

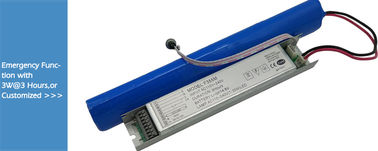

Emergency(Optional)	5W@3 Hours or Customized
Protection Class	ClassⅠ
Finishing Color(Optional)	White RAL9016 Optional
Material	AL+PC
Lifespan/hrs	62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Suspension / Ceiling Mounting Optional
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time

Character/Length	2ft	3ft	4ft	5ft
A	600mm	900mm	1200mm	1500mm
B	90mm	90mm	90mm	90mm
C	74mm	74mm	74mm	74mm

40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time

DALI Device
40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time
Packaging Information

40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

200W 30000lm Modular LED Sports Ground Floodlights With Al Heat Sink Structure

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

(Partnership)

Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
