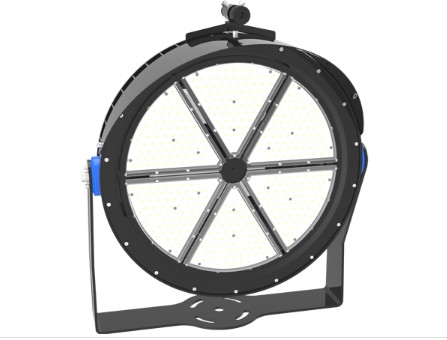

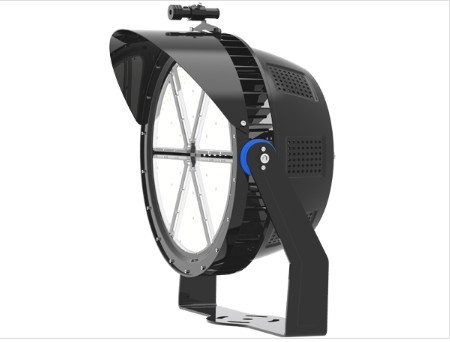

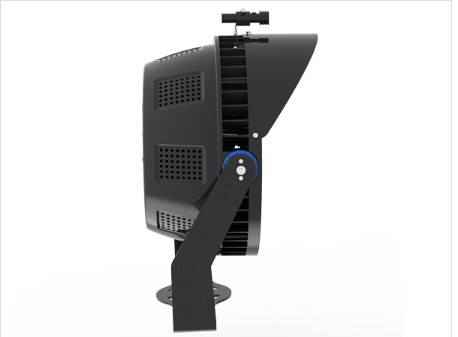

Name: New released LED Sports Stadium Flood lights 140LPW Efficiency 400W
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-FL500-EG2
Availability: InStock

Home Products D3 LED Weatherproof Light

New released LED Sports Stadium Flood lights 140LPW Efficiency 400W

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-FL500-EG2

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Power:	500W	Efficiency:	140lm/W
Installation:	Bracket	LENS:	PC
Warranty:	5 Years	Housing:	Die-Casting Al
Highlight:	industrial high bay led lighting , led stadium floodlights

High Mast LED Sports Ground Flood lights 140LPW Efficiency 400W

Features:

* Aiming device Laser Pointer;

* 30°/60°/90° beam angle for options;

* 400W 45000lm, for 800W MHL equivalent;
* ±360° adjustable bracket;

* TM21(L80>50000hrs);

Model No.	DR-SPL300-FGXP	DR-SPL400-FGXP	DR-SPL600-FGXP	DR-SPL800-FGXP
System Watts/W	300W	400W	600W	800W
System Efficiency/LPW	150LPW
Lumen Output/lm	45.000±5%	60.000±5%	90.000±5%	120.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	30°/60°/90°
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Character/Power	300W	400W	600W	800W
A / mm	Ø445	Ø445	Ø537	Ø537
B / mm	321	321	373	373

New released LED Sports Stadium Flood lights 140LPW Efficiency 400W 8

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-FGXP	12.4	610510250	13.8	1PCS/CTN
DR-SPL400-FGXP	12.9	610510250	14.7	1PCS/CTN
DR-SPL600-FGXP	25.3	890710275	27.6	1PCS/CTN
DR-SPL800-FGXP	25.9	890710275	28.8	1PCS/CTN

New released LED Sports Stadium Flood lights 140LPW Efficiency 400W 17

New released LED Sports Stadium Flood lights 140LPW Efficiency 400W 24

New released LED Sports Stadium Flood lights 140LPW Efficiency 400W 25

New released LED Sports Stadium Flood lights 140LPW Efficiency 400W 26

New released LED Sports Stadium Flood lights 140LPW Efficiency 400W 27

New released LED Sports Stadium Flood lights 140LPW Efficiency 400W 28

New released LED Sports Stadium Flood lights 140LPW Efficiency 400W 29

New released LED Sports Stadium Flood lights 140LPW Efficiency 400W 30

New released LED Sports Stadium Flood lights 140LPW Efficiency 400W 31

New released LED Sports Stadium Flood lights 140LPW Efficiency 400W 32

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
New released LED Sports Stadium Flood lights 140LPW Efficiency 400W 33

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
