Name: 60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-FL060-DG2
Availability: InStock

Home Products LED Street Light

60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-FL060-DG2

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Wattage:	60W	Flux:	8400lm
Beam Angle:	Type II Long/Medium	CCT:	3000-6500K
Life Span:	50000Hrs	Housing:	Die-Casting Al
Highlight:	warm white led street lights , decorative street light

60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics

60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 0

> Superior PC reflector-optic for low glare applications,and toughened glass protection;

> IP66 and IK10 for road lighting application;

> Driver and housing separated by spacers;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;
Options:

> Driver: ELG/HLG,Sosen;

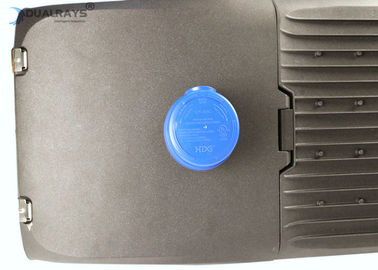

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;

* Roadways.

* Loading Area.

* Parking lot.
* Sport and Stadium.
60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 3

Model No.	DR-ST060-DGX
Rated Power/W	60
Protections	Short circuit/Over current/Over voltage/Over temperature
Beam Angle Options	Type I, Type II(Long&Medium), Type III(Medium), Type IV(Medium), Type V(Medium)
IP/Rating	IP66
AC Input Volage/V	AC100~277V 50/60Hz
Power Factor	PF>0.95
THD	<10%
SDCM	<5
Lumen Maintenance 36000 hrs	>90%

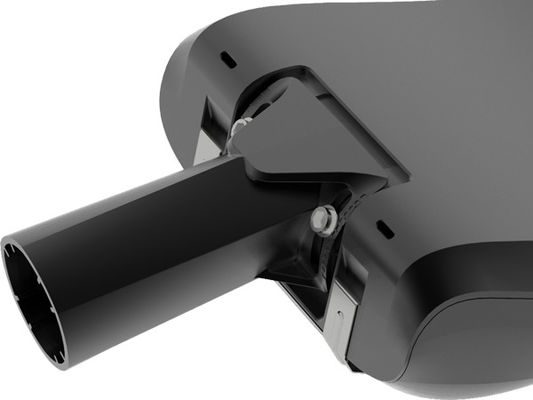

Installation Diameter	ø60,or adaptor
Surge Protection	6KV~10KV Buit in Driver/10KA 20KV/20KA 20KV
Warranty	5 years
Storage Temperature	-40 ~ +85℃
Certificate	CE ROHS D-MARK SAA

30W/60W Version
60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 5

90W,120W/150W/180W Version

60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 7

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 17

DALI Device
60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 19

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 23
Packaging Information

60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 25

60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 26

60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 27

60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 28

60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 29

60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 30

60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 31

60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 32

60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 33

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
60W LED Street Light Outdoor Security Lighting Type I Type II Type III Optics 34

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
