Name: LED Street lights for Exterior Security Five Years Guarantee
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-ST060-DG2
Availability: InStock

Home Products S4 LED Street Light

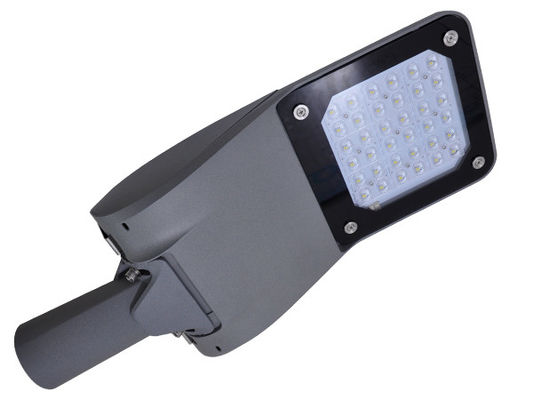

LED Street lights for Exterior Security Five Years Guarantee

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-ST060-DG2

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Wattage:	60W	Flux:	8400lm
Chips:	LUXEON 5050	Warranty:	5 YEARS
Life Span:	50000Hrs	Housing:	Die-Casting Al
Highlight:	warm white led street lights , decorative street light

LED Street lights for Exterior Security Five Years Guarantee

LED Street lights for Exterior Security Five Years Guarantee 0

> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;

> Driver and housing separated by spacers;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> 5 years warranty,7 or 10 years warranty negotiated;
Options:

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> Light pole adapter for different poles optional;

* Walkways.

* Loading Area.

* Parking lot.
* Sport and Stadium.

Model No.	DR-ST060-DG1
Beam Angle Options	Type I, Type II(Long&Medium), Type III(Medium), Type IV(Medium), Type V(Medium)
IP/Rating	IP66
AC Input Volage/V	AC100~277V 50/60Hz
Power Factor	PF>0.95
Lumen Maintenance @ 6000 hrs	>95%
Switching Cycle before Failure	100,000
Installation Diameter	ø60,or adaptor
Surge Protection	6KV~10KV Buit in Driver/10KA 20KV/20KA 20KV
Material	AL+PC
Storage Temperature	-40 ~ +85℃
Certificate	CE ROHS D-MARK SAA

30W/60W Version
LED Street lights for Exterior Security Five Years Guarantee 5

90W,120W/150W/180W Version

LED Street lights for Exterior Security Five Years Guarantee 7

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
LED Street lights for Exterior Security Five Years Guarantee 17

DALI Device
LED Street lights for Exterior Security Five Years Guarantee 19

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

LED Street lights for Exterior Security Five Years Guarantee 23
Packaging Information

LED Street lights for Exterior Security Five Years Guarantee 25

LED Street lights for Exterior Security Five Years Guarantee 26

LED Street lights for Exterior Security Five Years Guarantee 27

LED Street lights for Exterior Security Five Years Guarantee 28

LED Street lights for Exterior Security Five Years Guarantee 29

LED Street lights for Exterior Security Five Years Guarantee 30

LED Street lights for Exterior Security Five Years Guarantee 31

LED Street lights for Exterior Security Five Years Guarantee 32

LED Street lights for Exterior Security Five Years Guarantee 33

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
LED Street lights for Exterior Security Five Years Guarantee 34

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.
