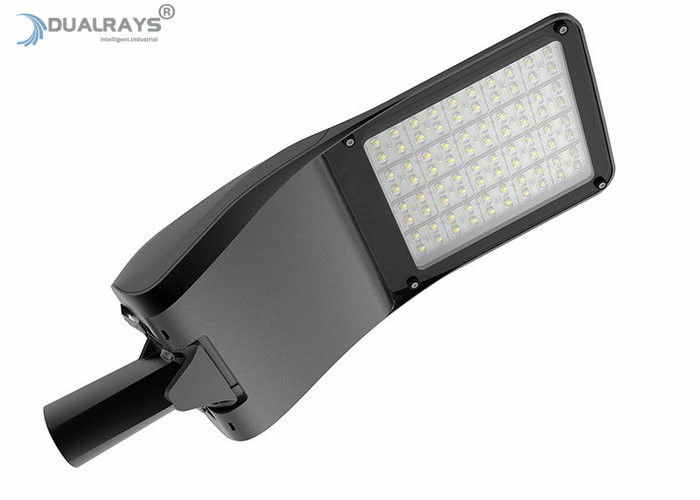

Name: 120W High Power Outdoor LED Street Light LUXEON 5050 Chips
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-ST120-DG1
Availability: InStock

Home Products S4 LED Street Light

120W High Power Outdoor LED Street Light LUXEON 5050 Chips

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-ST120-DG1

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Wattage:	120W	Flux:	16800lm
Chips:	5050	L80:	>50000hrs
Life Span:	50000Hrs	Housing:	Die-Casting Al
Highlight:	warm white led street lights , decorative street light

120W High Power Outdoor LED Street Light LUXEON 5050 Chips

120W High Power Outdoor LED Street Light LUXEON 5050 Chips 0

> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;

> Driver and housing separated by spacers;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> 5 years warranty,7 or 10 years warranty negotiated;
Options:

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;

> Customized supported for special projects;

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

Model No.	DR-ST120-DG1
Rated Power/W	120
Protections	Short circuit/Over current/Over voltage/Over temperature
THD	<10%
SDCM	<5
Lumen Maintenance @ 6000 hrs	>95%
Switching Cycle before Failure	100,000
Installation Diameter	ø60,or adaptor
Life Span/hrs	>50000
Certificate	CE ROHS D-MARK SAA

30W/60W Version
120W High Power Outdoor LED Street Light LUXEON 5050 Chips 5

90W,120W/150W/180W Version

120W High Power Outdoor LED Street Light LUXEON 5050 Chips 7

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
120W High Power Outdoor LED Street Light LUXEON 5050 Chips 17

DALI Device
120W High Power Outdoor LED Street Light LUXEON 5050 Chips 19

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

120W High Power Outdoor LED Street Light LUXEON 5050 Chips 23
Packaging Information

120W High Power Outdoor LED Street Light LUXEON 5050 Chips 25

120W High Power Outdoor LED Street Light LUXEON 5050 Chips 26

120W High Power Outdoor LED Street Light LUXEON 5050 Chips 27

120W High Power Outdoor LED Street Light LUXEON 5050 Chips 28

120W High Power Outdoor LED Street Light LUXEON 5050 Chips 29

120W High Power Outdoor LED Street Light LUXEON 5050 Chips 30

120W High Power Outdoor LED Street Light LUXEON 5050 Chips 31

120W High Power Outdoor LED Street Light LUXEON 5050 Chips 32

120W High Power Outdoor LED Street Light LUXEON 5050 Chips 33

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
120W High Power Outdoor LED Street Light LUXEON 5050 Chips 34

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
