800W Outdoor Sport Flood Lights Durable 150LPW IP66 IK10 WF2 PFC Function Available
Options:
> Driver: Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
> Lens : Symmetrical 30°/60°/90° beam angle optional;
> Aiming Device: Laser Pointer;
| Model No. |
DR-SPL300-FGXP |
DR-SPL400-FGXP |
DR-SPL600-FGXP |
DR-SPL800-FGXP |
| System Watts/W |
300W |
400W |
600W |
800W |
| System Efficiency/LPW |
150LPW |
| Lumen Output/lm |
45.000±5% |
60.000±5% |
90.000±5% |
120.000±5% |
| Rated Input Voltage/V |
AC100~277V, 50/60Hz |
| LEDs Light Source |
SMD5050 |
| SDCM |
<5 |
| CCT/K |
5000K for Standard (3000K/4000K/5700K/6500K Optional) |
| CRI/Ra |
>70Ra (>80Ra for Option) |
| Power Factor |
>0.95 |
| THD |
<10% |
| Beam Angle(Optional) |
30°/60°/90° |
| UGR |
<25 |
| Surge Protection |
4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional |
| LED Driver |
Meanwell ELG / HLG Optional |
| IP Rating |
IP65 |
| Dimming(Optional) |
1-10V, DALI,PWM,Zigbee for Option |
| Safety Protection |
Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection |
| Start Time |
0.5s |
| Protection Class |
ClassⅠ |
| Finishing Color(Optional) |
Black RAL9017(Standard) / White RAL9016 Optional |
| Material |
Aluminum+PC |
| Lifespan/hrs |
70.000 Hrs (Ta=30℃@L70) |
| Operation Temp/℃ |
40°C to + 50°C(-40°F to 122°F) |
| Storage Temp/℃ |
- 40°C to + 65°C(-40°F to 149°F) |
| Switching Cycles |
100,000 Times |
| Certificate |
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available |
|

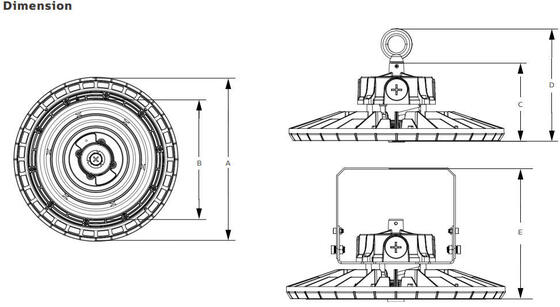

Character/Power
|
300W
|
400W
|
600W
|
800W
|
|
|
A / mm
|
Ø445
|
Ø445
|
Ø537
|
Ø537
|
|
B / mm
|
321
|
321
|
373
|
373
|
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
|
DR-SPL300-FGXP
|
12.4
|
610*510*250
|
13.8
|
1PCS/CTN
|
|
DR-SPL400-FGXP
|
12.9
|
610*510*250
|
14.7
|
1PCS/CTN
|
|
DR-SPL600-FGXP
|
25.3
|
890*710*275
|
27.6
|
1PCS/CTN |
| DR-SPL800-FGXP |
25.9 |
890*710*275 |
28.8 |
1PCS/CTN
|
Q1: What is the warranty?
RE: For the F5 Series LED flood light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2: What’s your shipping method ?
RE: UPS, DHL, Fedex, TNT or Shipping by Air,by train(for Europe) or by sea for option.
Q3: What is your MOQ?
RE: No MOQ, Sample order for testing welcome.
Q4: What is the Lead time?
RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.
Q5: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.
Q6: Do you offer mounting accessories?
RE: Yes, please contact us for details.
Q7: What’s the payment methods you can accept ?
RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.
Q8: What‘re the chips and drivers used? Can I change other brand?
RE: High brightness LUMILEDS LEDs light source,Meanwell/Sosen drivers for standard configuration. Yes, we can do customised product for you.
Q9: What is the CRI?
RE: Ra>70/Ra>80.
Q10: IP Rating?
RE: IP65.
Q11: Labeling ?
RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).
RE: Standard colors: Black / White,other colors can be customized, based on MOQ 50PCS.
Q13: Dimming functions?
RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.
Q14: Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.
Q15:Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Welcome to contact us freely to get more information.
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
