Name: IP66 Outdoor LED Street lights Photocell Controller Available
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-FL090-DG2
Availability: InStock

Home Products LED Street Light

IP66 Outdoor LED Street lights Photocell Controller Available

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-FL090-DG2

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Input:	AC100-277V	IP Grade:	IP66
Bracket:	Yes	Driver:	Meanwell
CRI:	>80Ra	Flicker:	Flicker Free
Highlight:	warm white led street lights , decorative street light

IP66 Outdoor LED Street lights Photocell Controller Available

IP66 Outdoor LED Street lights Photocell Controller Available 0

> IP66 and IK10 for road lighting application;

> Driver and housing separated by spacers;

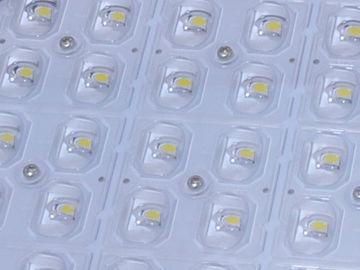

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
Options:

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;

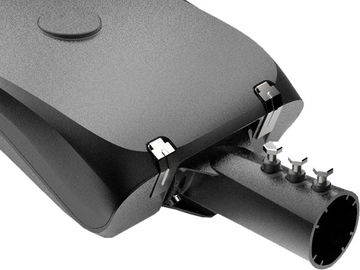

> Light pole adapter for different poles optional;

* Roadways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

Model No.	DR-ST090-DG2
Rated Power/W	90
Anti-salty spray	Grade A
Color Index	>80Ra
Beam Angle Options	Type I, Type II(Long&Medium), Type III(Medium), Type IV(Medium), Type V(Medium)
IP/Rating	IP66
AC Input Volage/V	AC100~277V 50/60Hz
UGR	<25
THD	<10%
Installation Diameter	ø60,or adaptor
Surge Protection	6KV~10KV Buit in Driver/10KA 20KV/20KA 20KV
Operation Temperature	-40 ~ +55℃
Certificate	CE ROHS D-MARK SAA

30W/60W Version
IP66 Outdoor LED Street lights Photocell Controller Available 5

90W,120W/150W/180W Version

IP66 Outdoor LED Street lights Photocell Controller Available 7

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
IP66 Outdoor LED Street lights Photocell Controller Available 17

DALI Device
IP66 Outdoor LED Street lights Photocell Controller Available 19

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

IP66 Outdoor LED Street lights Photocell Controller Available 23
Packaging Information

IP66 Outdoor LED Street lights Photocell Controller Available 25

IP66 Outdoor LED Street lights Photocell Controller Available 26

IP66 Outdoor LED Street lights Photocell Controller Available 27

IP66 Outdoor LED Street lights Photocell Controller Available 28

IP66 Outdoor LED Street lights Photocell Controller Available 29

IP66 Outdoor LED Street lights Photocell Controller Available 30

IP66 Outdoor LED Street lights Photocell Controller Available 31

IP66 Outdoor LED Street lights Photocell Controller Available 32

IP66 Outdoor LED Street lights Photocell Controller Available 33

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
IP66 Outdoor LED Street lights Photocell Controller Available 34

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
