Name: 150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-ST150-DG1
Availability: InStock

Home Products S4 LED Street Light

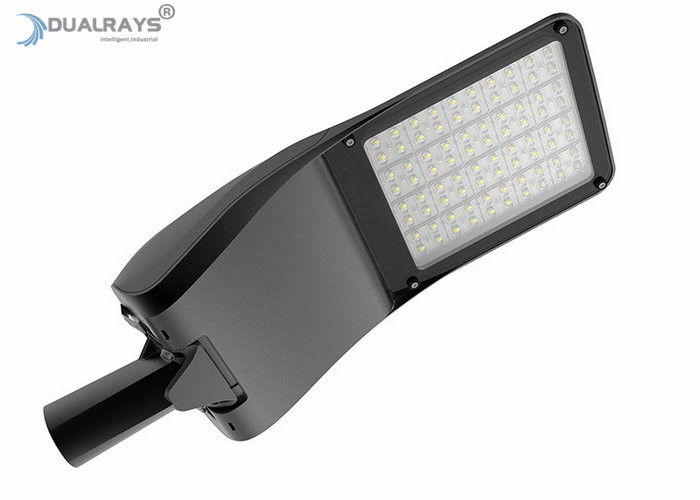

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-ST150-DG1

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Power:	150W	IP Grade:	IP66
Driver:	Meanwell/Inventronics/SOSEN	CRI:	80Ra/70Ra
Life Span:	50 000hrs	IK Class:	IK08
Highlight:	led cobra head street light , warm white led street lights

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 0

> IP66 and IK10 for road lighting application;

> Driver and housing separated by spacers;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

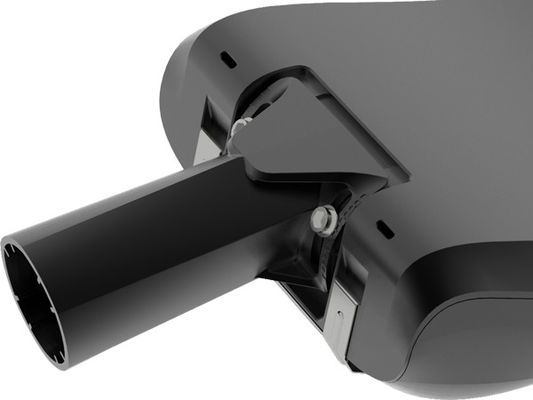

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
Options:

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;

* Walkways.

* Loading Area.

* Playground.

Model No.	DR-ST150-DG1
Rated Power/W	150
Systen Efficiency/LPW	140
Color Temperature	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Dimming Function	1-10VDC /DALI / PIR Sensor
Protections	Short circuit/Over current/Over voltage/Over temperature
Anti-salty spray	Grade A
Color Index	>80Ra
Beam Angle Options	Type I, Type II(Long&Medium), Type III(Medium), Type IV(Medium), Type V(Medium)
IP/Rating	IP66
Certificate	CE ROHS D-MARK SAA

30W/60W Version
150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 5

90W,120W/150W/180W Version

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 7

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 17

DALI Device
150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 19

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 23
Packaging Information

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 25

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 26

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 27

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 28

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 29

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 30

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 31

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 32

150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 33

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
150W LED Outdoor Flat Street Light IP66 and 50000hrs Life Span 34

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
