60W Flat LED Street Lights For Outdoor Security 5 Years Warranty

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-ST060-DG1

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Chips:	3030	Driver:	Meanwell
CRI:	>80Ra	Life Span:	50 000hrs
Input:	950-305VAC	Installation:	Wall Mounted
Highlight:	led cobra head street light , decorative street light

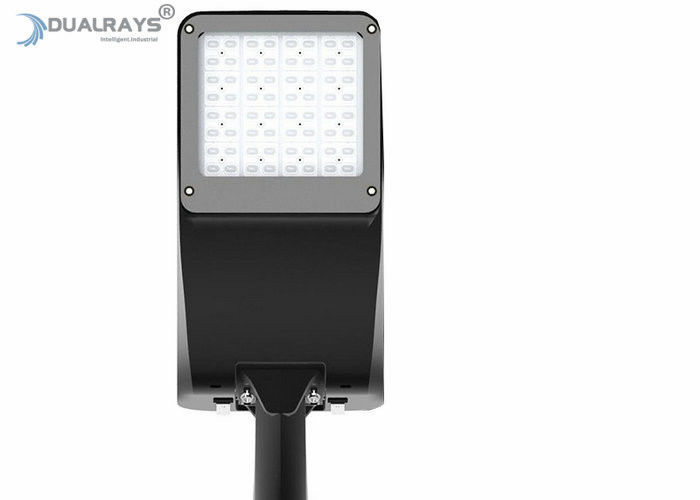

60W Flat LED Street Lights For Outdoor Security 5 Years Warranty

60W Flat LED Street Lights For Outdoor Security 5 Years Warranty 0

> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications,and toughened glass protection;

> IP66 and IK10 for road lighting application;

> Driver and housing separated by spacers;

> Professional 50(V)*120(H)°/75(V)*150°(H) optic for option;

> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty,7 or 10 years warranty negotiated;
Options:

> Driver: ELG/HLG,Sosen;

> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;

> 10KA SPD,20KA Meanwell SPD optional;

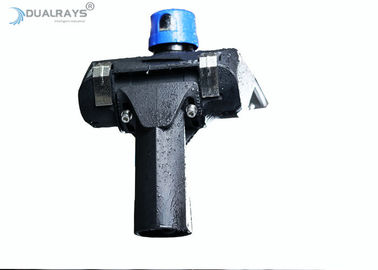

> 3-pins photocell controller ON/OFF,and 7-pins LORA/NEMA socket smart wireless control available;
> Zigbee module (Single-lamp Controller and centralized manager) with software for option;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;

> Customized supported for special projects;

* Roadways.

* Avenues.

* Walkways.

* Loading Area.

* Parking lot.

* Playground.
* Sport and Stadium.

Model No.	DR-ST060-DG1
Rated Power/W	60
Systen Efficiency/LPW	140
Color Temperature	WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
Dimming Function	1-10VDC /DALI / PIR Sensor
Protections	Short circuit/Over current/Over voltage/Over temperature
Anti-salty spray	Grade A
Color Index	>80Ra
Beam Angle Options	Type I, Type II(Long&Medium), Type III(Medium), Type IV(Medium), Type V(Medium)
IP/Rating	IP66
AC Input Volage/V	AC100~277V 50/60Hz
Power Factor	PF>0.95
Starting Time	<0.1
LED Driver	Meanwell
UGR	<25
THD	<10%
SDCM	<5
Lumen Maintenance @ 6000 hrs	>95%
Switching Cycle before Failure	100,000
Installation Diameter	ø60,or adaptor
Surge Protection	6KV~10KV Buit in Driver/10KA 20KV/20KA 20KV
Material	AL+PC
Life Span/hrs	>50000
Warranty	5 years
Operation Temperature	-40 ~ +55℃
Storage Temperature	-40 ~ +85℃
Certificate	CE ROHS D-MARK SAA

30W/60W Version
60W Flat LED Street Lights For Outdoor Security 5 Years Warranty 5

90W,120W/150W/180W Version

60W Flat LED Street Lights For Outdoor Security 5 Years Warranty 7

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
60W Flat LED Street Lights For Outdoor Security 5 Years Warranty 17

DALI Device
60W Flat LED Street Lights For Outdoor Security 5 Years Warranty 19

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

60W Flat LED Street Lights For Outdoor Security 5 Years Warranty 23
Packaging Information

60W Flat LED Street Lights For Outdoor Security 5 Years Warranty 25

60W Flat LED Street Lights For Outdoor Security 5 Years Warranty 26

60W Flat LED Street Lights For Outdoor Security 5 Years Warranty 27

60W Flat LED Street Lights For Outdoor Security 5 Years Warranty 28

60W Flat LED Street Lights For Outdoor Security 5 Years Warranty 29

60W Flat LED Street Lights For Outdoor Security 5 Years Warranty 30

60W Flat LED Street Lights For Outdoor Security 5 Years Warranty 31

60W Flat LED Street Lights For Outdoor Security 5 Years Warranty 32

60W Flat LED Street Lights For Outdoor Security 5 Years Warranty 33

(DIALUX Simulation)
