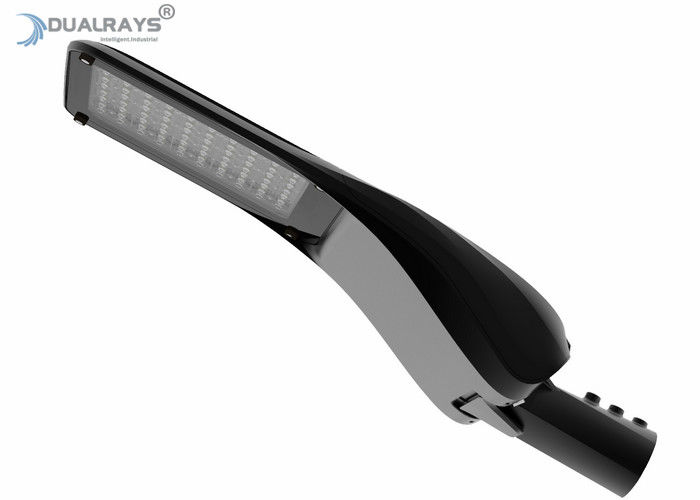

Name: 60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-ST060-DG2
Availability: InStock

Home Products S4 LED Street Light

60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-ST060-DG2

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Rated Wattage:	60W	Input:	AC100~277V
Efficiency:	140lm/W	Chips:	LUXEON 5050
Beam:	Type I, Type II	CCT:	3000-6500K
Highlight:	led cobra head street light , warm white led street lights

60W LED Street Light System Efficiency 140lm/W for 250W HPS LAMP Equivalent

60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 0

> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;

> IP66 and IK10 for road lighting application;

> Driver and housing separated by spacers;

> 5 years warranty,7 or 10 years warranty negotiated;

Options:

> Driver: ELG/HLG,Sosen;

> Controls and Dimming: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;

> 10KA SPD,20KA Meanwell SPD optional;

> Customized supported for special projects;

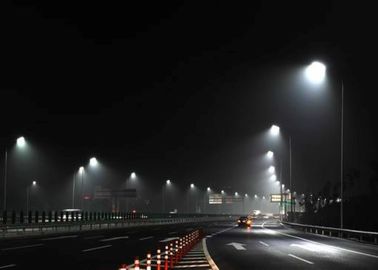

* Roadways.

* Playground.
* Sport and Stadium.

Model No.	DR-ST060-DG1
Rated Power/W	60
Systen Efficiency/LPW	140
AC Input Volage/V	AC100~277V 50/60Hz
Power Factor	PF>0.95
Switching Cycle before Failure	100,000
Installation Diameter	ø60,or adaptor
Certificate	CE ROHS D-MARK SAA

30W/60W Version
60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 5

90W,120W/150W/180W Version

60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 7

Zigbee Wireless Intelligent Control Diagram

Zigbee Wireless Intelligent Control Operator Interface
60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 17

DALI Device
60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 19

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 23
Packaging Information

60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 25

60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 26

60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 27

60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 28

60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 29

60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 30

60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 31

60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 32

60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 33

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
60W LED Street Light System Efficiency 140LPW for 250W HPS LAMP Equivalent 34

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
