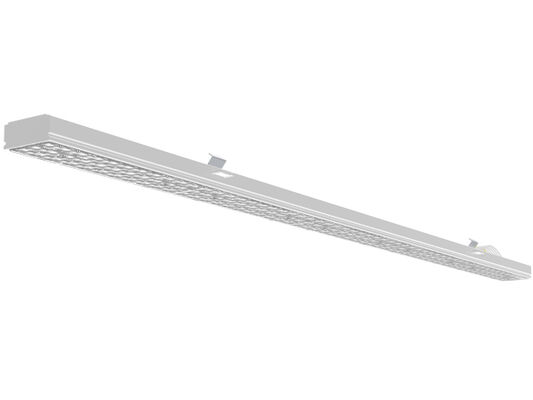

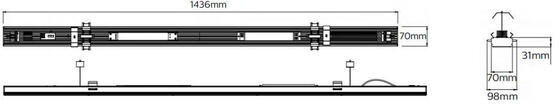

Name: 1430mm Universal Compatible LED Linear light Module for Various Brands of Trunking System
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-RM075D-NN8XX-05WH-PEEUXX01
Price: negotiable USD
Availability: InStock

Home Products Tailored Solution

1430mm Universal Compatible LED Linear light Module for Various Brands of Trunking System

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS/OEM/ODM/OBM Optional
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-RM075D-NN8XX-05WH-PEEUXX01
Document:	DUALRAYS LIGHTING Catalogue...26.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	9PCS
Price:	Negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C,T/T
Supply Ability:	50,000PCS/Month

Contact Now

Detailed Product Description

Wattage:	75W DIP (25~75W)	Warranty:	5 Years (Extensible Up To 7 Years)
Driver:	TRIDONIC / PHILIPS / BOKE Non-SELV Driver	Lamp Type:	LED Exchangeable
Dimension:	5ft	Group Control:	3-Phase Switchable Optional, L1 /L2 /L3 Can Be Changed By DIP Switch
Through-wiring:	3x2.5mm2/5x2.5mm2 + 2x1.5 Mm2 Dimming Wire As Stand	Cable Entry:	H05RN-F 32.5mm2 \| H05RN-F 52.5mm2 (Max Section 4.0mm2)
Highlight:	led linear high bay , linear ceiling light

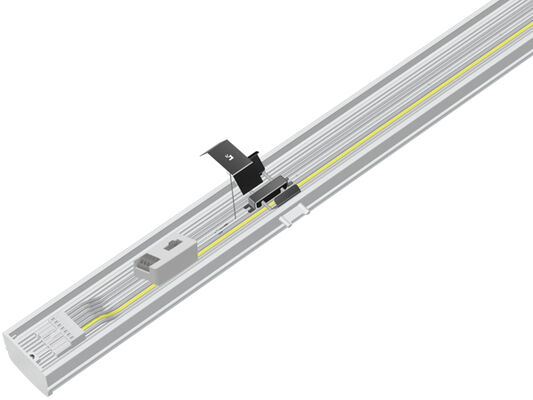

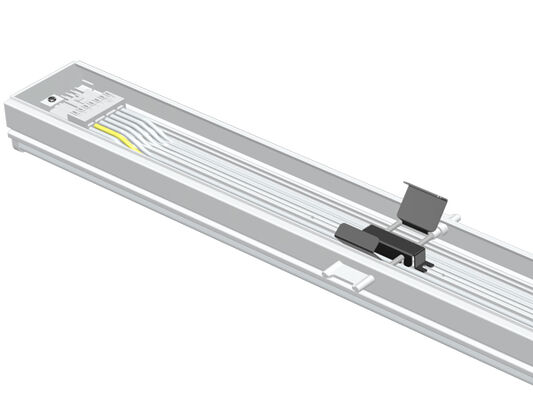

1430mm Universal Compatible LED Linear light Module for Various Brands of Trunking System

Item	Symbol	Description
Model No	/	DR-ULM035-DE5C
Dimming Function	/	DALI/1-10V
Color Index	Ra	>80Ra

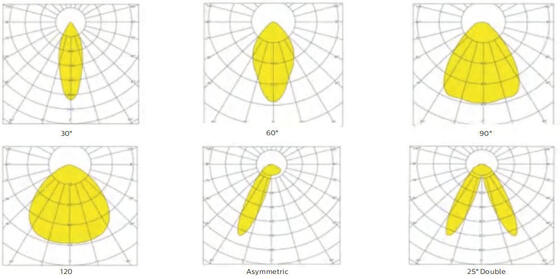

Beam Angle	Degree	30°/60°/90°/120°/Double Asy 25°/Single Asy 25°
AC Input Vol	V	AC220-240V/DC180-264V
Lumen Maintenance @ 50000 hrs	Hours	>80%

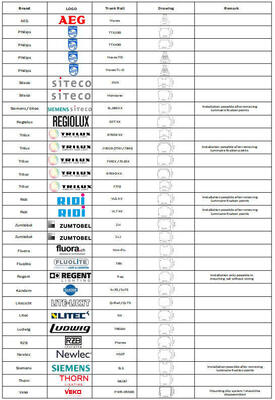

Compatibility	Brands	Universal Brands in Europe Market
Life Span at L80	Hours	50,000
Warranty	Years	5 years
Operation Temperature	℃	-40 ~ +55℃
Storage Temperature	℃	-40 ~ +85℃

Feature

a. Universal Easy exchanging LED linear module was adopted by Germany goods warehouse Fluorescent tubes replacement;

b. Compatible with the lastest 25 years installation Trunking Rails in Europe

c. The complete fixtures includes linear module, trunking rail, optional functions and installation accessories, the quotation above only means linear module, extra function or installationkits ,please contact us for quotation;

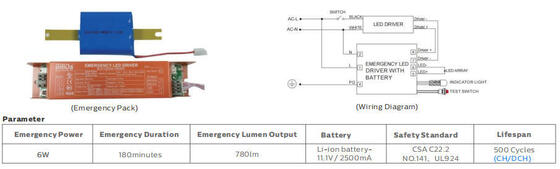

d. Customized dimming type or emergency function,please contact us for confirmation;

mtxx66

mtxx58 mtxx68

Advantage

* Powerful production capacity and QC management system;

* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;

* All our LED liminaires comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;

* Supply different version with different configurations for our customers.

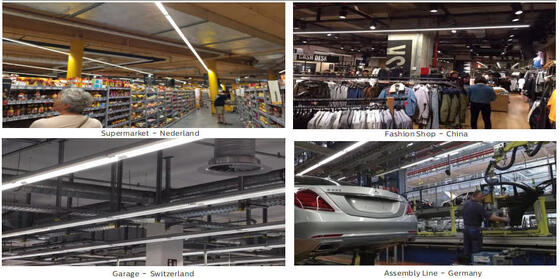

Application

* Office

* Workshops and warehouse

* Supermarkets
