Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light

  • Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light
  • Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light
  • Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light
  • Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-TP050-EG41
Payment & Shipping Terms:
Minimum Order Quantity: 4
Price: negotiable
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Wattage: 50 Efficiency: 120lm/W
Warranty: 5 Years Beam Angle: 120
Driver: DUALRAYS/BOKE Packaging: Original Or OEM
Highlight:

explosion proof led lights

,

vapor proof led light

Time Saving Wiring Method Interior 50W 6000lm LED Tri-proof Light

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 0

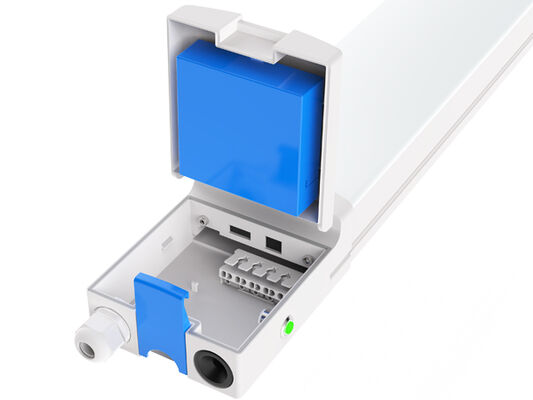

> Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;

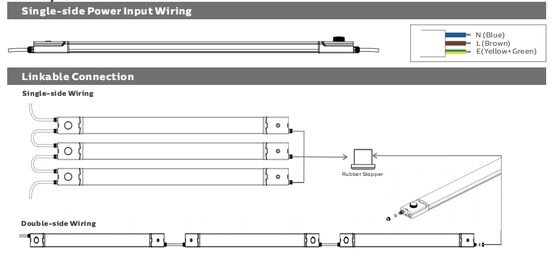

> Multiple Link with double wiring;
> L80>50.000h;
> 5 years warranty;

Options:

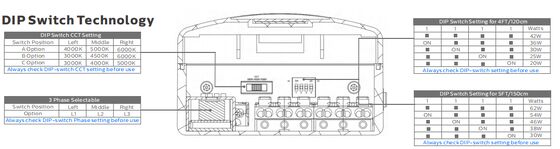

> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.

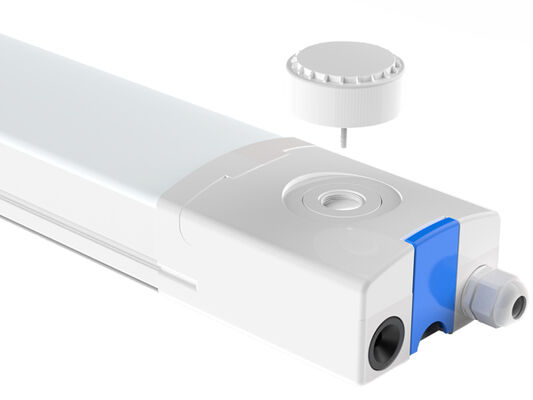

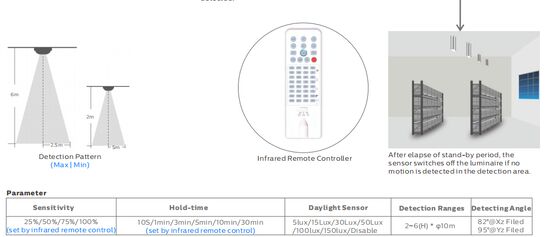

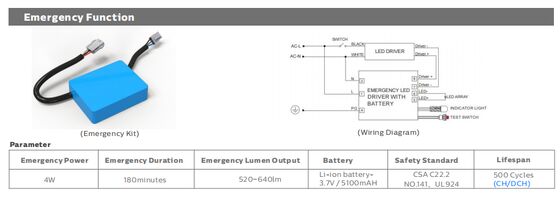

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.
> Single or double wiring and connection.
> Customized supported for special projects.
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 1

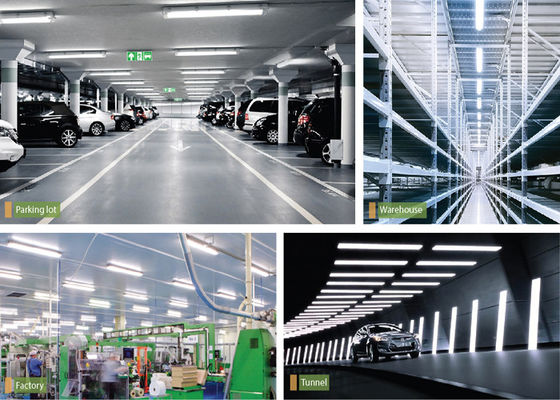

* Replacement for fluorescent NCF
* Garage and car parks
* Sport facility
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 2
Model No. DR-TP050-EG41
Rated Power/W 50
Luminous Flux/LM 6000
Switching Cycle before Failure 100,000
Installation Option Bracket/Suspending
Storage Temperature -40 ~ +85℃
Certificate CE ROHS


Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 3

Character/Length
2ft
3ft
4ft
5ft
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 4
A
600mm
900mm
1200mm
1500mm
B
90mm
90mm
90mm
90mm
C
74mm
74mm
74mm
74mm


Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 5

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 6

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 7
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 8
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 9

DALI Device
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 10

DALI Intelligent Control Diagram
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 11 Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 12


DALI Intelligent Control Operator Interface
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 13
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 14
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 15
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 16

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 17
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 18
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 19

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 20

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 21
Packaging Information

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 22

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 23

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 24

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 25

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 26

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 27

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 28

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 29

Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 30



Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 31

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 32 Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 33

(DIALUX Simulation)
  Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 34
(Partnership)
Time Saving Wiring Method Interior 50W 6000lm LED Tri proof Light 35
