| Place of Origin: | Shenzhen, China |
| Brand Name: | DUALRAYS/OEM/ODM/OBM Optional |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-RM075D-NN8XX-05WH-PEEUXX01 |
| Document: | DUALRAYS LIGHTING Catalogue...26.pdf |
| Minimum Order Quantity: | 9PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | OEM/ODM/OBM Pakcgae or Neutral Package Optional |
| Delivery Time: | 5-15 business days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 50,000PCS/Month |
| Wattage: | 75W DIP (25~75W) | CCT (Correlated Color Temperature): | 3000K | 4000K | 5000K | 5700K |6500K Optional Or 3CCT |
|---|---|---|---|
| Warranty: | 5 Years (Extensible Up To 7 Years) | Main Voltage: | 220~240VAC/ 50/60Hz, 180-264VDC |
| Compatibility: | AEG Fluora Fluolite Kandem Lite Licht Regiolux Zumtobel Philips Ect | Linkable Design: | With 5/7 Pole WAGO Connector For Mullt-connection |
| Appliaction: | Large-scale Retail Outlets; Industrial Halls; Warehouse Spaces; Factory Halls ; Other Semi-industrial Applications | ||
| Highlight: | led linear high bay,linear ceiling light |
||

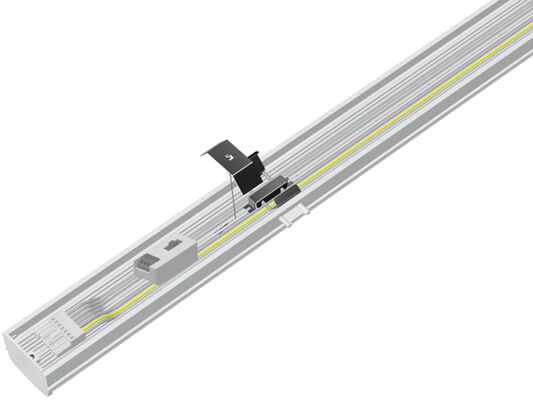

1430mm 35W Universal LED Linear light Module 2*36W Equivalent
![]()
| Item | Symbol | Description |
| Model No | / | DR-ULM035-DE5C |

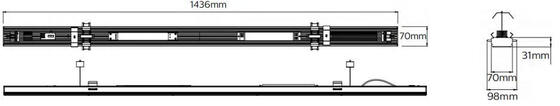

| Length | mm | 1430 |

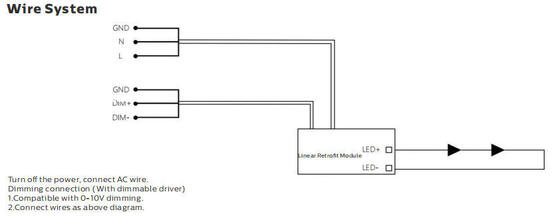

| Dimming Function | / | DALI/1-10V |
| Color Index | Ra | >80Ra |

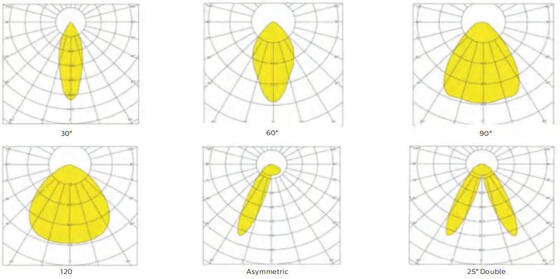

| Beam Angle | Degree | 30°/60°/90°/120°/Double Asy 25°/Single Asy 25° |
| AC Input Vol | V | AC220-240V/DC180-264V |
| Lumen Maintenance @ 36000 hrs | Hours | >90% |
| Switching Cycle before Failure | Times | 100,000 |
| Life Span at L80 | Hours | 50,000 |
| Warranty | Years | 5 years |
| Operation Temperature | ℃ | -40 ~ +55℃ |
| Storage Temperature | ℃ | -40 ~ +85℃ |
Feature
a. Universal Easy exchanging LED linear module was adopted by Germany goods warehouse Fluorescent tubes replacement;

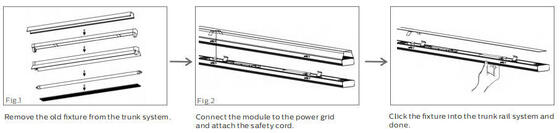

b. Easy exchanging solution save at least 50% labor cost and saving project period;
c. Standard Retrofit linear model with fix power consumption or DIP switch driver for power consumption adjustable for easy making stock;

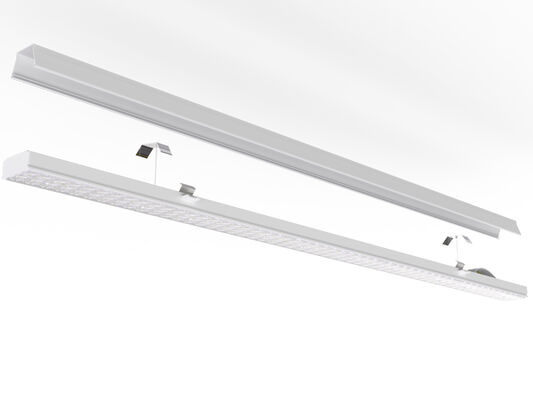

d. The complete fixtures includes linear module, trunking rail, optional functions and installation accessories, the quotation above only means linear module, extra function or installationkits ,please contact us for quotation;

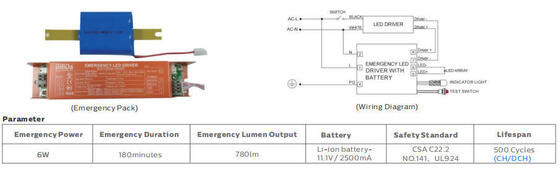

e. Customized dimming type or emergency function,please contact us for confirmation;
![]()
![]()
![]()
Advantage
* Powerful production capacity and QC management system;
* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;
* All our LED liminaires comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;
* Supply different version with different configurations for our customers.
Application
* Office
* Workshops and warehouse
* Supermarkets
* Underground parking
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
