| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS/OEM/ODM/OBM Optional |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-RM075D-NN8XX-05WH-PEEUXX01 |
| Document: | DUALRAYS LIGHTING Catalogue...26.pdf |
| Minimum Order Quantity: | 9PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | OEM/ODM/OBM Pakcgae or Neutral Package Optional |
| Delivery Time: | 5-15 business days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 50,000PCS/Month |
| Wattage: | 75W DIP (25~75W) | Through-wiring: | 3x2.5mm2/5x2.5mm2 + 2x1.5 Mm2 Dimming Wire As Stand |
|---|---|---|---|
| Main Voltage: | 220~240VAC/ 50/60Hz, 180-264VDC | Warranty: | 5 Years (Extensible Up To 7 Years) |
| Compatiblity: | AEG Fluora Fluolite Kandem Lite Licht Regiolux Zumtobel Philips Ect | Color: | RAL9003 |
| Group Control: | 3-Phase Switchable Optional, L1 /L2 /L3 Can Be Changed By DIP Switch | Lamp Type: | LED Exchangeable |
| Highlight: | led linear high bay,linear lighting systems |
||

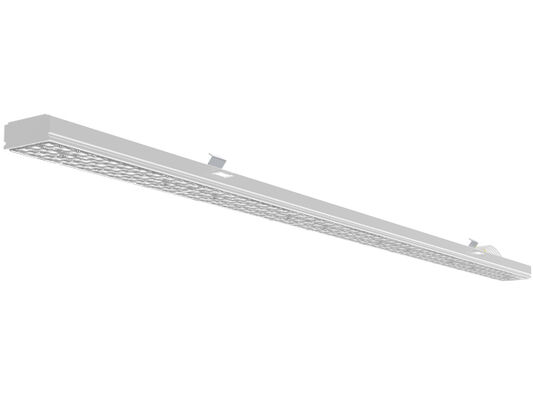

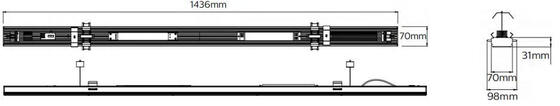

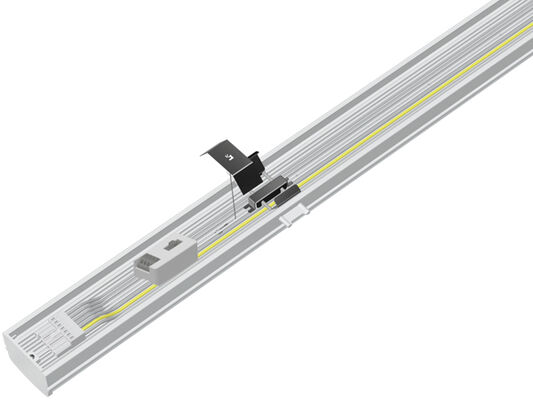

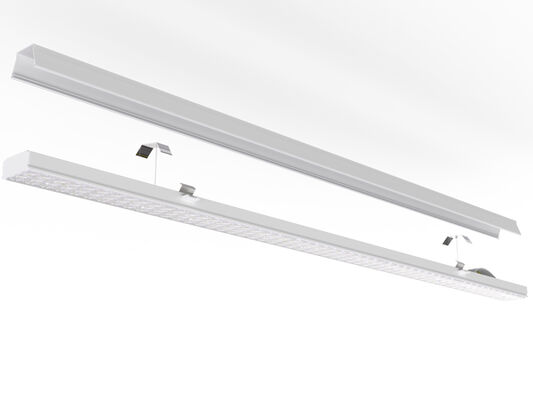

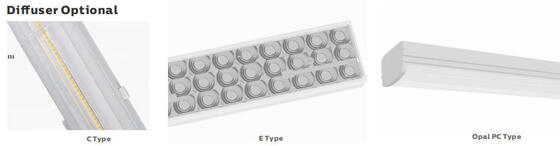

1430mm 56W Power Consumption Adjustable Universal LED Linear light Module
![]()
| Item | Symbol | Description |
| Model No | / | DR-ULM056-DE5C |
| Power Consumption | W | 12-56W |

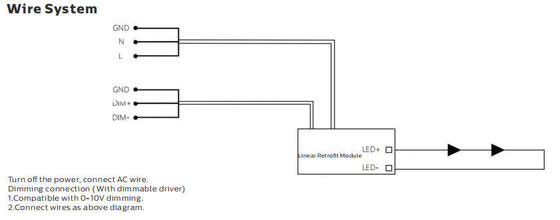

| Dimming Function | / | DALI/1-10V |

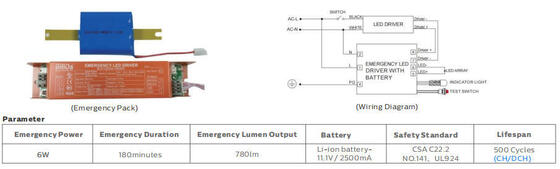

| Emergency function | / | Available |

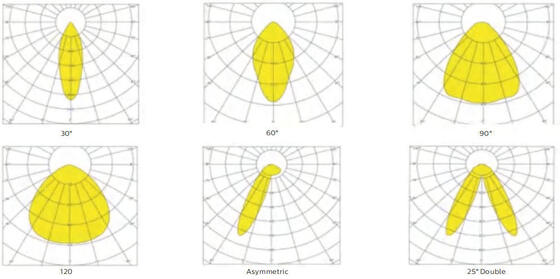

| Beam Angle | Degree | 30°/60°/90°/120°/Double Asy 25°/Single Asy 25° |
| AC Input Vol | V | AC220-240V/DC180-264V |
| Life Span at L80 | Hours | 50,000 |
| Warranty | Years | 5 years |
| Operation Temperature | ℃ | -40 ~ +55℃ |
| Storage Temperature | ℃ | -40 ~ +85℃ |
Feature
a. Standard Retrofit linear model with fix power consumption or DIP switch driver for power consumption adjustable for easy making stock;
b. Universal Easy exchanging LED linear module was adopted by Germany goods warehouse Fluorescent tubes replacement;

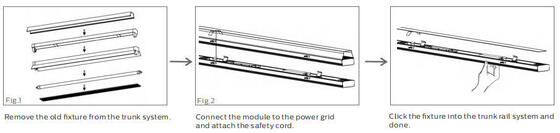

c. Easy exchanging solution save at least 50% labor cost and saving project period;
d. Customized dimming type or emergency function,please contact us for confirmation;
![]()
![]()
![]()
Advantage
* Powerful production capacity and QC management system;
* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;
* All our LED liminaires comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;
* Supply different version with different configurations for our customers.
Application
* Office
* Workshops and warehouse
* Supermarkets
* Underground parking
![]()
![]()
![]()
![]()
![]()
