| Place of Origin: | Shenzhen, China |
| Brand Name: | DUALRAYS/OEM/ODM/OBM Optional |
| Certification: | CE RoHS |
| Model Number: | DR-RM075D-NN8XX-05WH-PEEUXX01 |
| Document: | DUALRAYS RM5 Linear LED Ret...pe.pdf |
| Minimum Order Quantity: | 8PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | DUALRAYS/OEM/ODM/OBM Package Optional |
| Delivery Time: | 8-15 business days |
| Payment Terms: | T/T |
| Supply Ability: | 100000PCS/Month |
| Wattage: | 75W DIP (25~75W) | Application: | Large-scale Retail Outlets,Industrial Halls,Warehouse Spaces,Factory Halls |
|---|---|---|---|
| Beam Angle: | 30° | 60° | 90° | 120° | Asymmetric 25° L | Asymmetric 25° R | 25° Double | Warranty: | 5 Years (Extensible Up To 7 Years) |
| Group Control: | 3-Phase Switchable Optional, L1 /L2 /L3 Can Be Changed By DIP Switch | OEM Service: | Yes |
| Highlight: | led linear high bay,linear lighting systems |
||

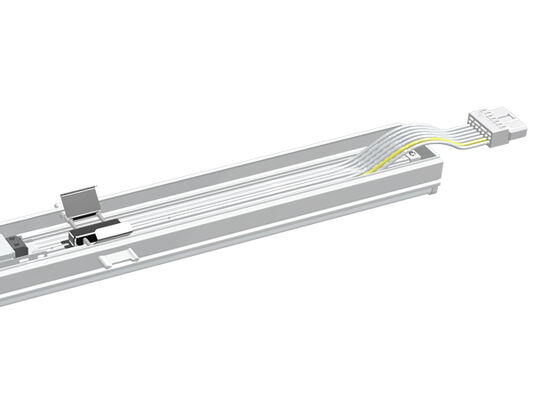

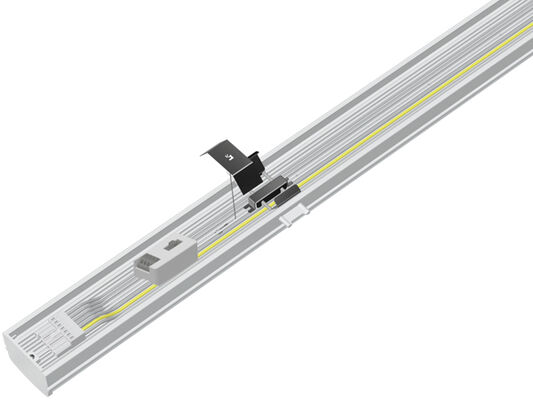

35W 1430mm Universal LED Linear light Module for Multiple Trunking Rails
![]()
| Item | Symbol | Description |
| Model No | / | DR-ULM035-DE5C |

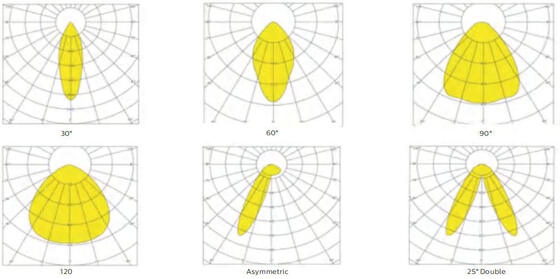

| Beam Angle | Degree | 30°/60°/90°/120°/Double Asy 25°/Single Asy 25° |
| AC Input Vol | V | AC220-240V/DC180-264V |
| Lumen Maintenance at 50000 hrs | Hours | >80% |
| Emergency | / | Available |
| Life Span at L80 | Hours | 50,000 |
| Warranty | Years | 5 years |
| Operation Temperature | ℃ | -40 ~ +55℃ |
| Storage Temperature | ℃ | -40 ~ +85℃ |
Feature
a. Compatible with Trunking Rails by , Trilux, Zumtobel, RIDI, Regiolux, VEKO....
b. Easy exchanging solution save at least 50% labor cost and saving project period;
c. Standard Retrofit linear model with fix power consumption or DIP switch driver for power consumption adjustable for easy making stock;
d. BOKE flicker-free driver,with non-dimming,1-10V,DALI dimming, AC/DC input;
e. The complete fixtures includes linear module, trunking rail, optional functions and installation accessories, the quotation above only means linear module, extra function or installationkits ,please contact us for quotation;
f. Customized dimming type or emergency function,please contact us for confirmation;
![]()
![]()
![]()
Advantage
* Powerful production capacity and QC management system;
* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;
* All our LED liminaires comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products;
* Supply different version with different configurations for our customers.
Application
* Office
* Workshops and warehouse
* Supermarkets
* Underground parking
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
