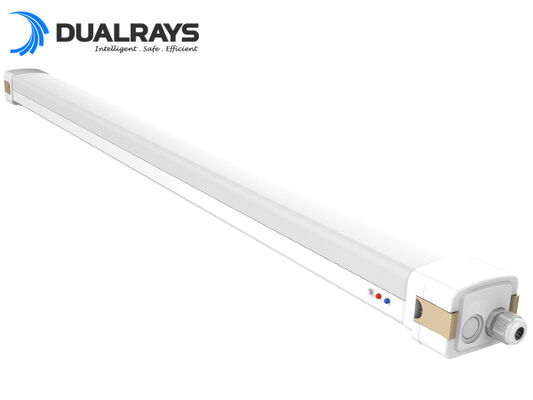

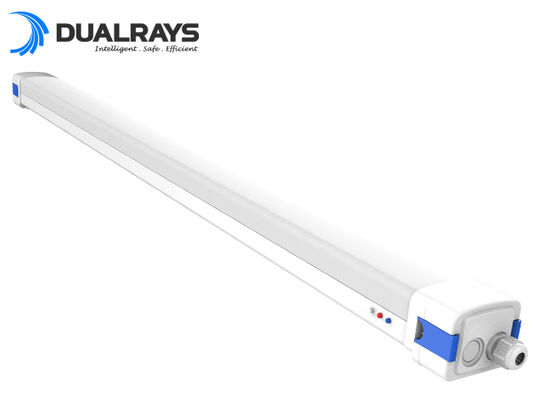

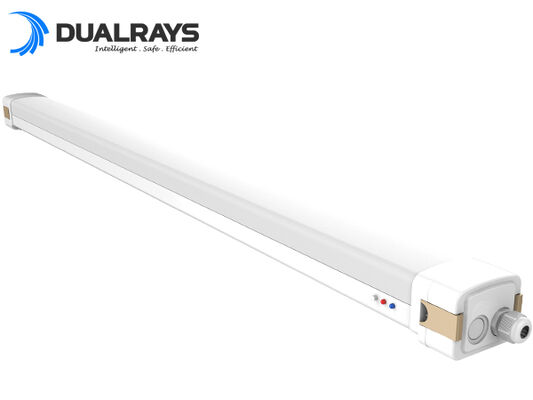

Name: 30W 4800lm Easy Connection LED Tri proof Light Sensor Available
Brand: DUALRAYS LIGHTING Co.,LTD.
SKU: DR-TP030-EG31
Availability: InStock

Home Products LED Moisture-proof Lamp

30W 4800lm Easy Connection LED Tri proof Light Sensor Available

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-TP030-EG31

Payment & Shipping Terms:

Minimum Order Quantity:	4
Price:	negotiable
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 Bussiness Day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50000PCS/Month

Contact Now

Detailed Product Description

Wattage:	30	Flux:	4800lm
Chips:	2835	Warranty:	5 Years
Beam Angle:	120DEG	Color:	Silver
Highlight:	explosion proof led lights , dust proof light fixture

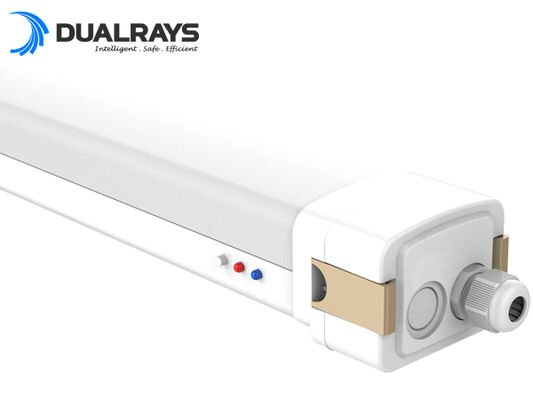

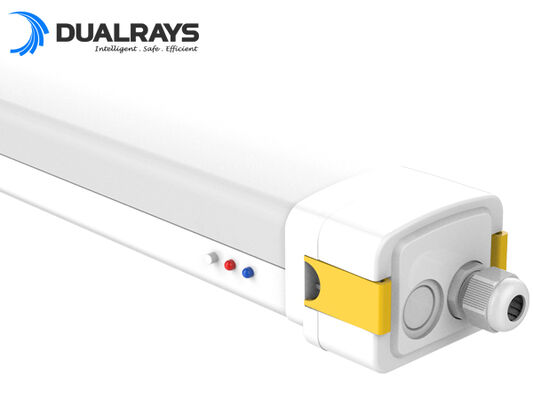

30W 4800lm Easy Connection LED Tri-proof Light Sensor Available

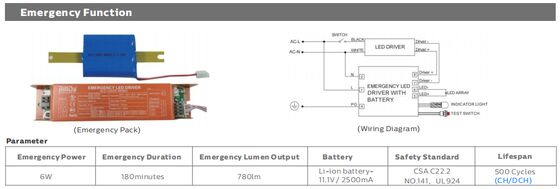

> Emergency Function battery package

> IP65 and IK08 for all industrial areas of application;

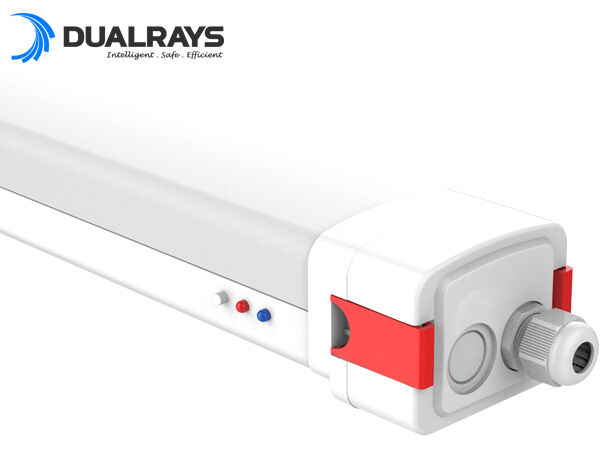

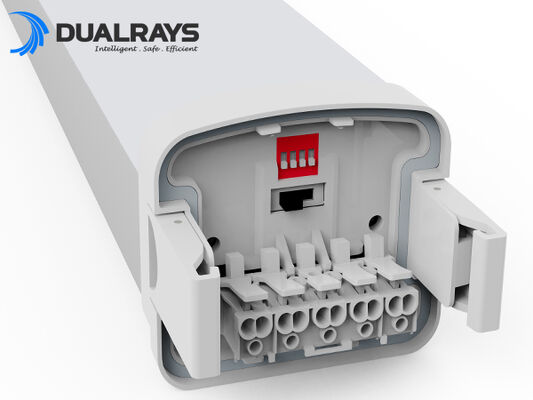

> Buckle Design End-cap,quick & convenient to open and relock for wiring,greatly improve efficiency and save labor cost;
Options:

> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.

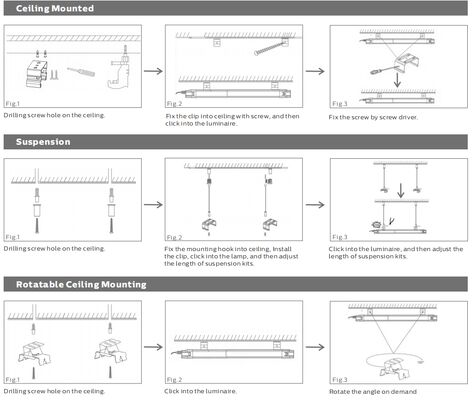

> Installation: Suspension, Ceilign Mounted and adjustable surface mount.

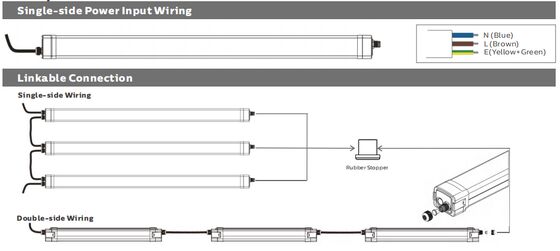

> Single or double wiring and connection.

* Workshops and warehouse

* Garage and car parks

* Outdoor & Indoor Locations
30W 4800lm Easy Connection LED Tri proof Light Sensor Available 2

Model No.	DR-TP030-EG31
Rated Power/W	30
Systen Efficiency/LPW	160
IP/Rating	IP65
THD	<10%
Storage Temperature	-40 ~ +85℃
Certificate	CE ROHS

30W 4800lm Easy Connection LED Tri proof Light Sensor Available 3

Character/Length	2ft	3ft	4ft	5ft
A	600mm	900mm	1200mm	1500mm
B	90mm	90mm	90mm	90mm
C	74mm	74mm	74mm	74mm

30W 4800lm Easy Connection LED Tri proof Light Sensor Available 5

30W 4800lm Easy Connection LED Tri proof Light Sensor Available 7

DALI Device
30W 4800lm Easy Connection LED Tri proof Light Sensor Available 10

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

30W 4800lm Easy Connection LED Tri proof Light Sensor Available 21
Packaging Information

30W 4800lm Easy Connection LED Tri proof Light Sensor Available 22

30W 4800lm Easy Connection LED Tri proof Light Sensor Available 23

30W 4800lm Easy Connection LED Tri proof Light Sensor Available 24

30W 4800lm Easy Connection LED Tri proof Light Sensor Available 25

30W 4800lm Easy Connection LED Tri proof Light Sensor Available 26

30W 4800lm Easy Connection LED Tri proof Light Sensor Available 27

30W 4800lm Easy Connection LED Tri proof Light Sensor Available 28

30W 4800lm Easy Connection LED Tri proof Light Sensor Available 29

30W 4800lm Easy Connection LED Tri proof Light Sensor Available 30

30W 4800lm Easy Connection LED Tri proof Light Sensor Available 31

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
30W 4800lm Easy Connection LED Tri proof Light Sensor Available 32

(DIALUX Simulation)

　　Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.　　
