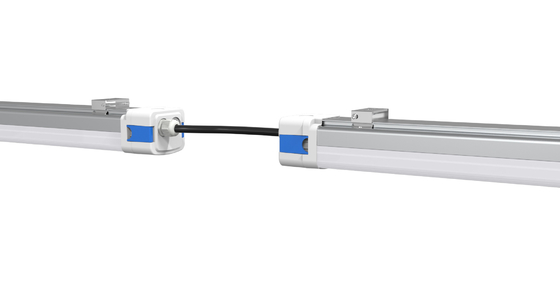

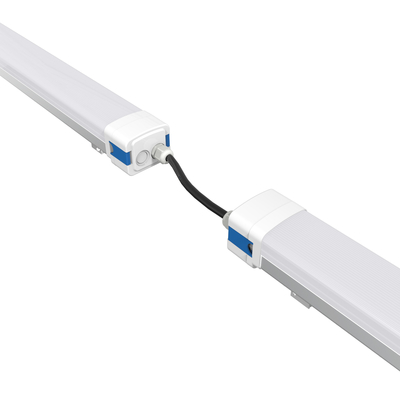

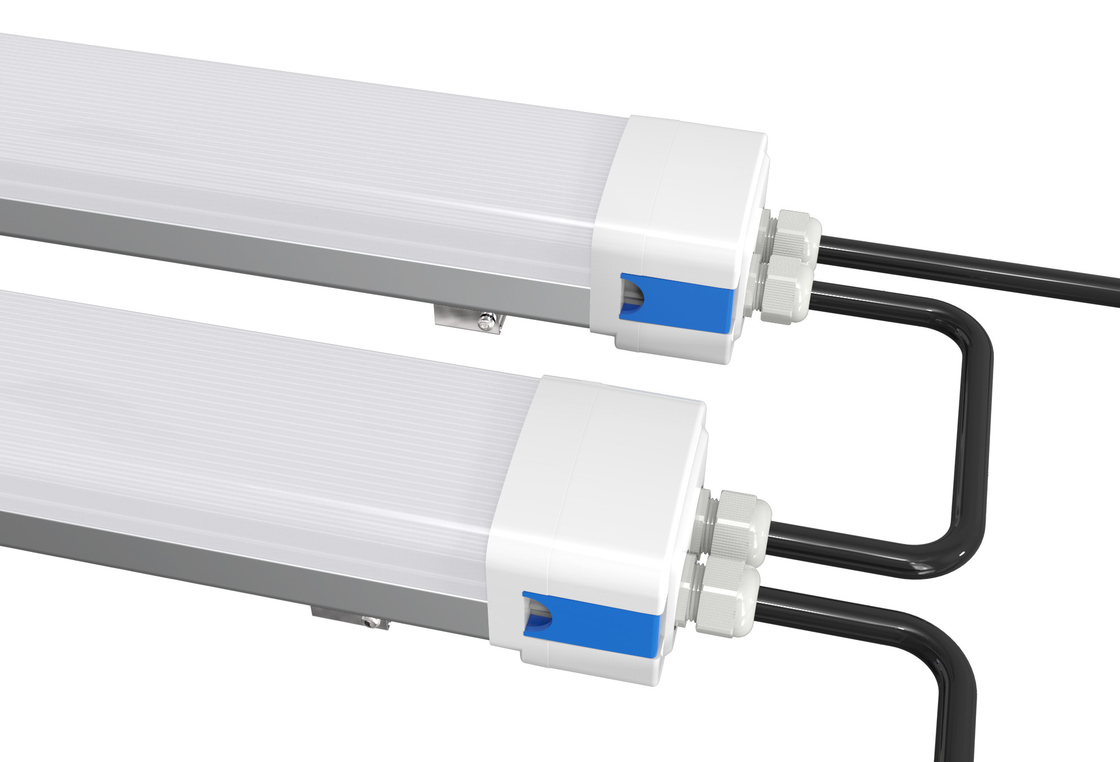

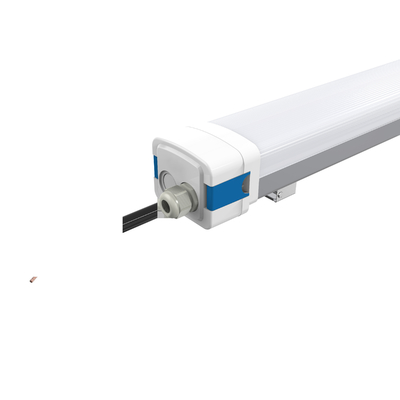

30W 3ft 3600lm LED Tri proof Light with Labor Cost Saving Easy Wiring Method

30W 3ft 3600lm LED Tri proof Light with Labor Cost Saving Easy Wiring Method

  • 30W 3ft 3600lm LED Tri proof Light with Labor Cost Saving Easy Wiring Method
  • 30W 3ft 3600lm LED Tri proof Light with Labor Cost Saving Easy Wiring Method
  • 30W 3ft 3600lm LED Tri proof Light with Labor Cost Saving Easy Wiring Method
  • 30W 3ft 3600lm LED Tri proof Light with Labor Cost Saving Easy Wiring Method
30W 3ft 3600lm LED Tri proof Light with Labor Cost Saving Easy Wiring Method
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-TP030-EG31
Payment & Shipping Terms:
Minimum Order Quantity: 4
Price: negotiable
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Wattage: 30 Flux: 3600lm
Chips: 3030 Warranty: 5 Years
L90: >36000hrs Color: Black
High Light:

explosion proof led lights

,

dust proof light fixture

30W 3ft 3600lm LED Tri-proof Light with Labor Cost Saving Easy Wiring Method

30W 3ft 3600lm LED Tri proof Light with Labor Cost Saving Easy Wiring Method 0
> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;
> IP65 and IK08 for all industrial areas of application;
> L80>50.000h;
> 5 years warranty;
Options:
> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.
> Installation: Suspension, Ceilign Mounted and adjustable surface mount.
> Customized supported for special projects.

40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time
* Workshops and warehouse
* Garage and car parks
* Outdoor & Indoor Locations

600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty
Model No. DR-TP020-EG2XPX DR-TP040-EG4XPX DR-TP050-EG4XPX DR-TP060-EG5XPX DR-TP080-EG5XPX
System Watts/W 20W 40W 50W 60W
80W
System Efficiency/LPW 130LPW / 160LPW Optioanl
Lumen Output/lm 2.600/3.200±5% 5.200/6.400±5% 6.500/8.000±5% 7.800/9.600±5% 10.400/12.800±5%
Rated Input Voltage/V AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source SMD2835
SDCM <6
CCT/K 5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra >80Ra (>70Ra for Option)
Power Factor >0.91
THD <10%
Beam Angle(Optional) 120°
UGR <22
LED Driver BOKE Fixed Power/ DIP Switch Power Adjustable Optional
IP Rating IP65
IK Level IK08
Dimming(Optional) 1-10V, DALI,Zigbee
Sensor(Optional) Daylight sensor/Microwave Sensor
Emergency(Optional) 5W@3 Hours or Customized
Protection Class ClassⅠ
Finishing Color(Optional) White RAL9016 Optional
Material AL+PC
Lifespan/hrs 62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃ 40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃ - 40°C to + 65°C(-40°F to 149°F)
Installation(Optional) Suspension / Ceiling Mounting Optional
Certificate CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time

Character/Length
2ft
3ft
4ft
5ft
40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time
A
600mm
900mm
1200mm
1500mm
B
90mm
90mm
90mm
90mm
C
74mm
74mm
74mm
74mm


40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time

40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time

40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time
40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time
40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time

DALI Device
40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time

DALI Intelligent Control Diagram
40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time 40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time


DALI Intelligent Control Operator Interface
40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time
40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time
40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time
40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time

40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time
40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time
40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time

40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time

40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time
Packaging Information

40W 6400lm LED Tri-proof Light with Easy Wiring Method Saving Time

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station

IP66 150W Recessed Retrofit LED Canopy Light For Gas Station



200W 30000lm Modular LED Sports Ground Floodlights With Al Heat Sink Structure

In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket 5ft 55W Fixed Power Universal LED Linear light Module for Supermarket

(DIALUX Simulation)
  Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket
(Partnership)
5ft 55W Fixed Power Universal LED Linear light Module for Supermarket
