| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-FL400-CGX |
| Minimum Order Quantity: | 10pcs For Regular Order, 1pc for Sample Order |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| Warranty: | 5 Years | IP Rating: | IP66 |
|---|---|---|---|
| Efficiency: | 140Lm/W (± 5%) | CCT: | 2700K - 6500K |
| Beam Angle: | 15°/30°/45°/60°/90° | Life Span: | 50,000 Hours |
| High Light: | outdoor led flood lights,waterproof led flood lights |
||

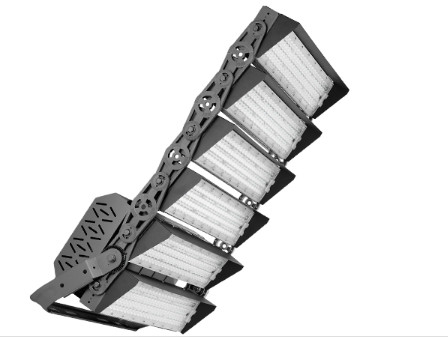

DUALRAYS 400W F4 Series Ultra Durable Modular LED Flood Light Industrial 140lmw 5 Years Warranty
DUALRAYS 400W F4 Series LED Flood Light--Data Sheets
| Model No. | DR-FL050-DGXP | |||
| Rated Power/W | 400W | |||
| LEDs Light Source | SMD3030 | |||
| Luminous Flux/LM | 60,000±5% | |||
| Certificate | CE(EMC+LVD), RoHS, D-Mark, SAA, RCM avaliable | |||
| Beam Angle Options | 15°/30°/45°/60°/90°/30*70°/80*140°/60*130° | |||
| IP Rating | IP66 | |||
| Rated Input Volage/V | AC100~277V 50/60Hz | |||
| Power Factor | PF>0.95 | |||
| Finishing Color (Optional) | Black RAL9017/White Ral9017 | |||
| LED Driver | Meanwell ELG/HLG, Sosen | |||
| UGR | <25 | |||
| THD | <10% | |||
| SDCM | <6 | |||
| Lumen Maintenance @ 6000 hrs | >95% | |||
DUALRAYS 400W F4 Series LED Flood Light-- Feature
> High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150 lm/w;
|
Model No.
|
DR-SPL250-DGXX | DR-SPL500-DGXX | DR-SPL750-DGXX | DR-SPL1000-DGXX | DR-SPL1250-DGXX | DR-SPL1500-DGXX |
|
System Watts/W
|
250W | 500W | 750W | 1000W | 1250W |
1500W
|
|
System Efficiency/LPW
|
150~160LPW | |||||
|
Lumen Output (Max) /lm
|
40.000±5% | 80.000±5% | 120.000±5% | 160.000±5% | 200.000±5% | 240.000±5% |
|
Rated Input Voltage/V
|
AC100~277V, 50/60Hz | |||||
|
LEDs Light Source
|
SMD5050 | |||||
|
SDCM
|
<5 | |||||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||||
|
CRI/Ra
|
>70Ra (>80Ra for Option) | |||||
|
Power Factor
|
>0.95 | |||||
|
THD
|
<10% | |||||
|
Beam Angle(Optional)
|
20°/40°/60°/90°/140*60° Optional | |||||
|
UGR
|
<25 | |||||
|
Surge Protection
|
4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||||
|
LED Driver
|
Meanwell ELG/HLG | |||||
|
IP Rating
|
IP66 | |||||
|
Dimming(Optional)
|
1-10V, DALI,PWM,Zigbee | |||||
| Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | |||||
| Start Time | 0.5s | |||||
|
Protection Class
|
ClassⅠ | |||||
|
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | |||||
|
Material
|
Aluminum+PC | |||||
|
Lifespan/hrs
|
70.000 Hrs (Ta=30℃@L70) | |||||
|
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | |||||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | |||||
| Switching Cycles | 100,000 Times | |||||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | |||||
Packaging Information:
| Model No. | Power | Outer Carton Size(MM) | G.W(KG) | Quantity/CTN |
| DR-FL050-DGXP | 50W | 340*110*190 | 2.8 | 1PCS |
| DR-FL100-DGXP | 100W | 340*110*250 | 4.3 | 1PCS |
| DR-FL150-DGXP | 150W | 340*110*330 | 5.2 | 1PCS |
| DR-FL200-DGXP | 200W | 340*120*400 | 6.7 | 1PCS |
| DR-FL250-DGXP | 250W | 340*120*480 | 7.8 | 1PCS |
| DR-FL300-DGXP | 300W | 340*120*560 | 9.2 | 1PCS |
| DR-FL400-DGXP | 400W | 600*140*400 | 12.6 | 1PCS |
| DR-FL500-DGXP | 500W | 600*140*480 | 13.7 | 1PCS |
| DR-FL600-DGXP | 600W | 600*140*550 | 15.7 | 1PCS |
Shipment:
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.
RE: Yes, please contact us for details.
RE: Ra>80 for standard.
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
