| Place of Origin: | Shenzhen,China |
| Brand Name: | DUALRAYS |
| Certification: | CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available |
| Model Number: | DR-FL200-DGX |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Netural Package/OEM and ODM Package Available |
| Delivery Time: | 5-15 Bussiness Day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/Month |
| UGR: | <25 | THD: | <10% |
|---|---|---|---|
| SDCM: | <6 | Life Span: | 50,000 Hours |
| CCT: | 2700K - 6500K | Material: | Die-Cast Aluminum + PMMA |
| High Light: | outdoor led flood lights,waterproof led flood lights |
||

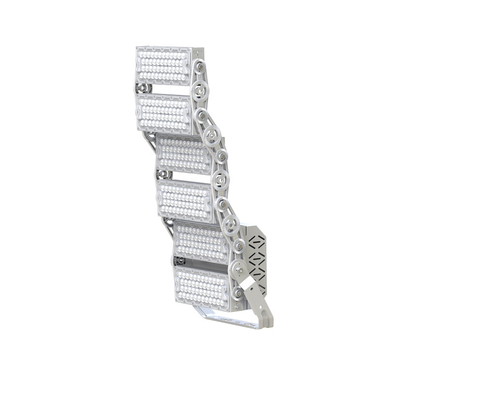

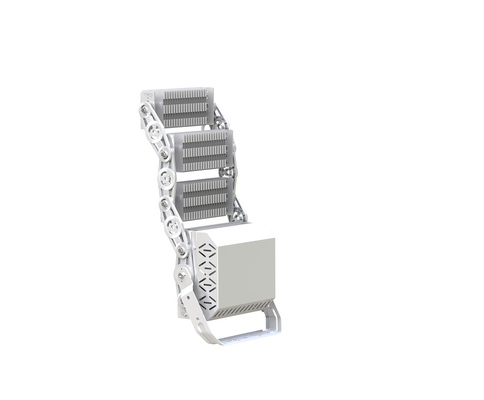

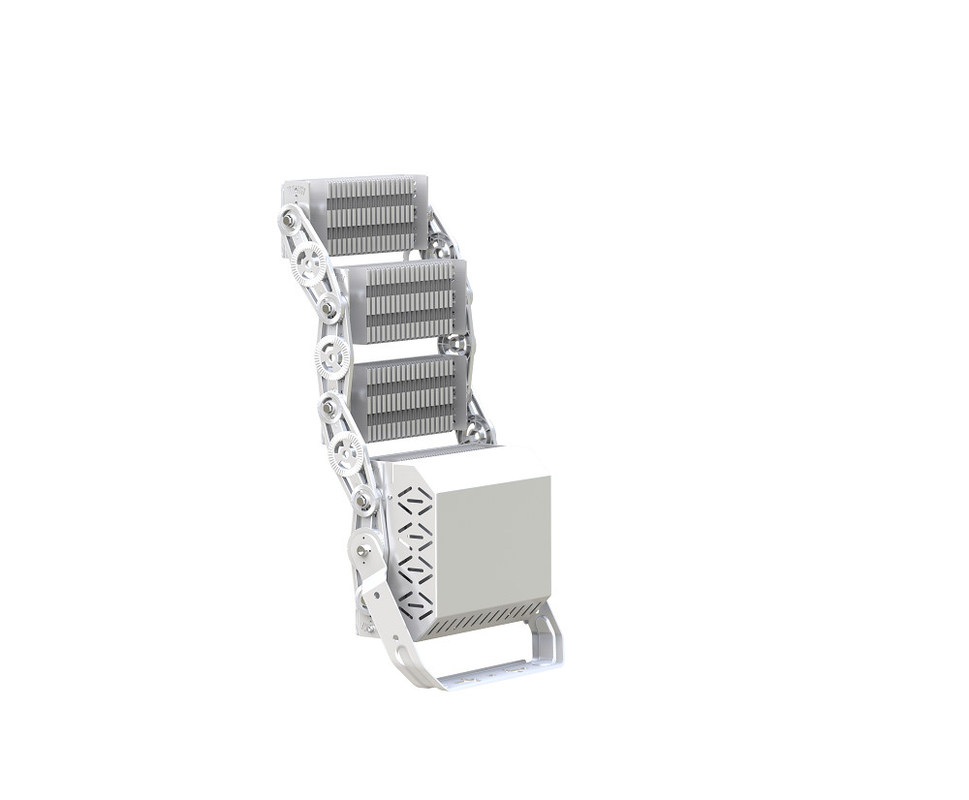

Dualrays F4 Series 200W Modular LED Flood Light 140lmw Efficiency 5 Years Warranty IP66 Multiple Beam Angle optional
Dualrays F4 Series 200W LED Flood Light-- Detailed Product Description
| Model No. | DR-FL200-DGXP | |||
| Rated Power/W | 200W | |||
| LEDs Light Source | SMD3030 | |||
| Luminous Flux/LM | 30,000±5% | |||
| Systen Efficiency/LPW | 150LPW | |||
| CCT/K | 3000/4000/5000/5700/6500K | |||
| Dimming Options | 0/1-10VDC /DALI /PWM /Zigbee | |||
| Surge Protections | 6~10KV SPD Built in Driver, Exterior SPD 10KV() or 20KV Meanwell Option | |||
| Protection Class | Class I | |||
| Certificate | CE(EMC+LVD), RoHS, D-Mark, SAA, RCM avaliable | |||
| Beam Angle Options | 15°/30°/45°/60°/90°/30*70°/80*140°/60*130° | |||
| IP Rating | IP66 | |||
| Rated Input Volage/V | AC100~277V 50/60Hz | |||
| Power Factor | PF>0.95 | |||
| Finishing Color (Optional) | Black RAL9017/White Ral9017 | |||
| LED Driver | Meanwell ELG/HLG, Sosen | |||
| Lumen Maintenance @ 6000 hrs | >95% | |||
| Installation Option | Ground Mounting, Wall Mounting, Ceiling Mounting, Pipe Mounting | |||
| Operation Temperature | -40 ~ +55℃ | |||
| Storage Temperature | -40 ~ +65℃ | |||
| CRI/Ra | <70Ra (<80Ra for option) | |||
Packaging Information:
| Model No. | Power | Outer Carton Size(MM) | G.W(KG) | Quantity/CTN |
| DR-FL050-DGXP | 50W | 340*110*190 | 2.8 | 1PCS |
| DR-FL100-DGXP | 100W | 340*110*250 | 4.3 | 1PCS |
| DR-FL150-DGXP | 150W | 340*110*330 | 5.2 | 1PCS |
| DR-FL200-DGXP | 200W | 340*120*400 | 6.7 | 1PCS |
| DR-FL250-DGXP | 250W | 340*120*480 | 7.8 | 1PCS |
| DR-FL300-DGXP | 300W | 340*120*560 | 9.2 | 1PCS |
| DR-FL400-DGXP | 400W | 600*140*400 | 12.6 | 1PCS |
| DR-FL500-DGXP | 500W | 600*140*480 | 13.7 | 1PCS |
| DR-FL600-DGXP | 600W | 600*140*550 | 15.7 | 1PCS |
Shipment:
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
Contact Person: Mr. David Lau
Tel: 86-18620309436
Fax: 86-755-61641072
