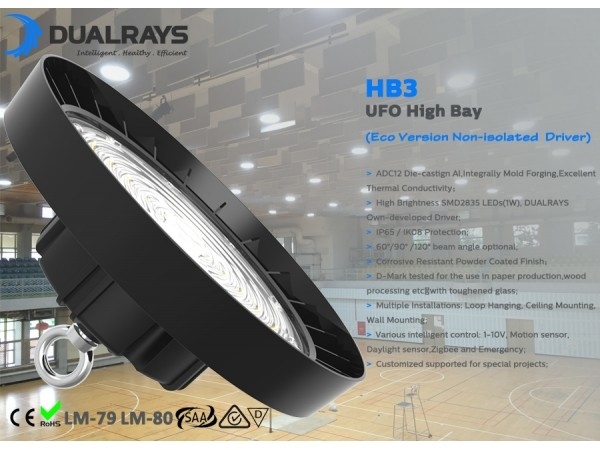

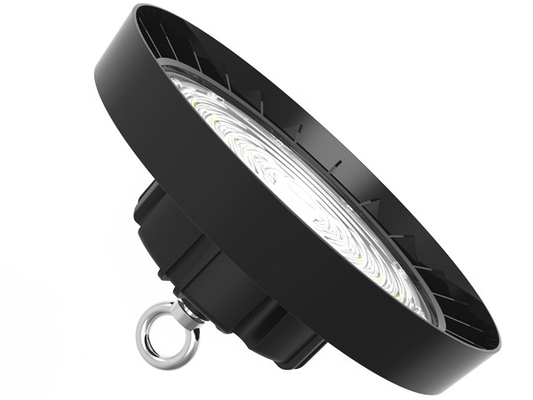

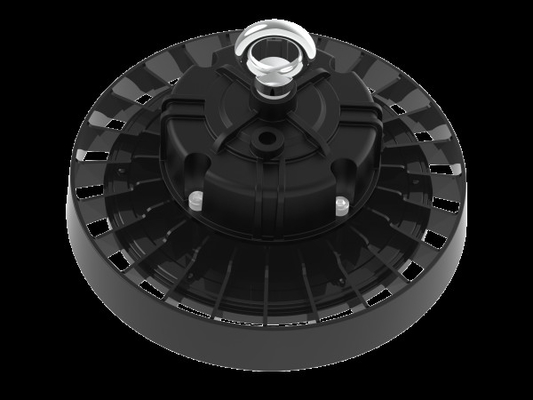

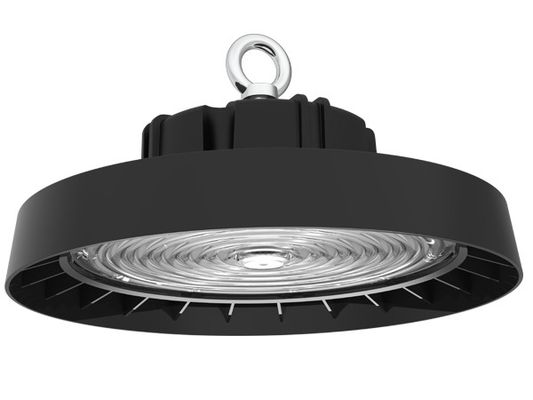

Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty

Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty

  • Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty
  • Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty
  • Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty
  • Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty
Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-HB150-CG2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiated
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
Rated Power: 150W Power Factor (PF): >0.95
Certificate: CE, RoHS Warranty: 5 Years
Input Voltage: AC100-277V 50/60HZ LED Driver: DUALRAYS Own-developed High PF Non-isolated Driver
High Light:

led flat panel light fixture

,

high bay led shop lights

Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty

Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty 0
Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty 1



Dualrays HB3 Series UFO LED High Bay Light-- Data Sheet

Item No.
DR-HB10-EG2
Driving Brand
DUALRAYS Own-developed built-in driver
Input Voltage
AC100-277V 50/60HZ
CRI
>80
Power
150W
IP Ranking
IP65
Working Temp
-40 to +50℃
Power Factor (PF)
>0.9
Lumen Output/Im
21,000
Light Source
SMD3030
Beam Angle
60°/90º/120º
LED Efficiency
150LPW

Dualrays HB3 Series UFO LED High Bay Light--Features:
> Highly brightness SAN‘AN SMD3030 LEDs,energy efficient - up to 140 lm/w;
> Die-casting Al for excellent heat dissipation;
> Superior PC reflector-optic for low glare applications;
> IP65 and IK08 for all industrial areas of application;
> DUALRAYS own-developed built-in driver,slim design,compact and durable;
> Adjustable ripple-lens optic with 60°/90°/120° beam angle;
> D-Mark tested for the use in paper production, wood processing etc;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> 5 years warranty;

Dualrays HB3 Series UFO LED High Bay Light--Options:
> Driver: DUALRAYS Own-developed built-in driver,slim design,durable and compact.
> Controls and Dimming
·Zigbee wireless control / 1-10V Dimming / Daylight sensor.
> Reflector : PC reflector with / without cover.pipe mounting.
> Installation: loop hanging, ceiling mounting, wall mounting,
> Customized supported for special projects.

Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty 2
> Factories / Warehouses /Workshops
> Exhibitions & showrooms
> Barns and riding halls
> High rooms and halls
> Traditional lamp replacement


Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty 3
Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty 4

Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty 5

Character/Power
100W
150W
200W
Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty 6
A
Ø322mm
Ø322mm
Ø322mm
B
128mm
128mm
128mm


Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty 7

Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty 8





Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty 9

Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty 10

Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty 11
Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty 12

Dualrays 150W HB3 Industrial UFO LED High Bay Light for Warehouse Application 5 Year Warranty 13
