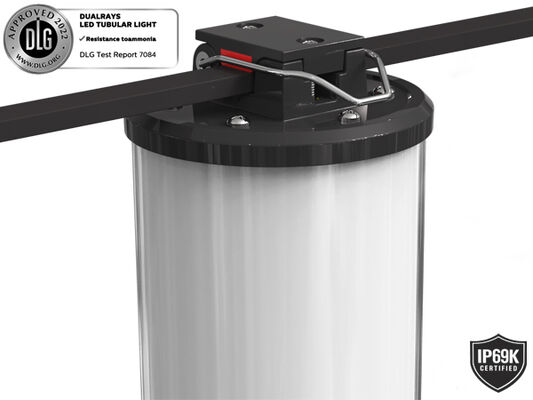

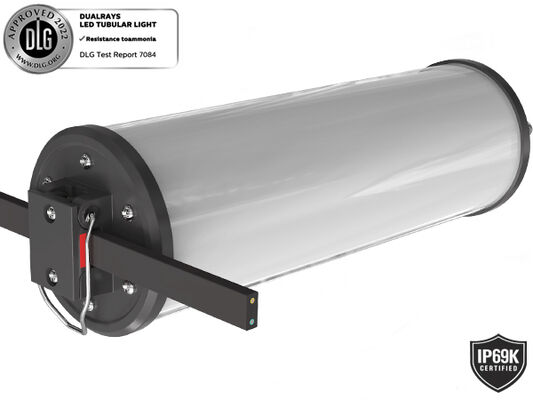

15W 140LPW LED Portable Temporary Work Light

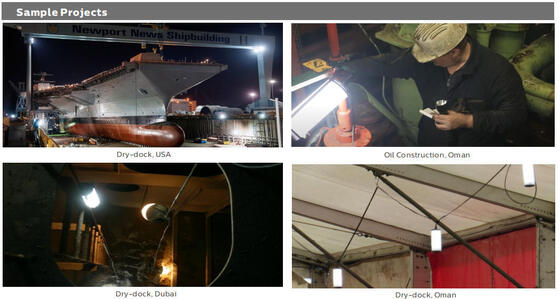

Designed for demanding applications in marine industry, shipbuilding, ship repair and maintenance, offshore, oil and gas, and construction industries. Features AC/DC24-42V operation input with 3-year guarantee.
Product Overview
The TW5 light represents a revolutionary advancement in portable, temporary work lighting solutions. Engineered for extreme environments, it operates at safe low voltages (AC/DC24~42VAC, AC/DC110V), ensuring reliable performance during critical work phases including steelwork, sandblasting, high-pressure washing, and anti-corrosion protection.
Constructed from high-quality, robust materials, this work light offers exceptional durability with minimal risk of damage or breakage. Rated at IP67 protection level and IK10 mechanical protection, it withstands the harshest industrial conditions.
Compared to traditional work lamps, the TW5 provides superior practicality and ease of use, delivering cost-effective, faster, and more competitive service processes while enhancing worker productivity and safety in compliance with CENELEC norm HD63751.
Key Features
- High Brightness SAN'AN SMD2835 LEDs with LIFUD/BOKE/AGT High PF Flicker-free Driver
- DIP Switch Power Adjustment for flexible power settings
- Water pressure resistance up to 100bar (1450psi) and temperature tolerance of 80°C

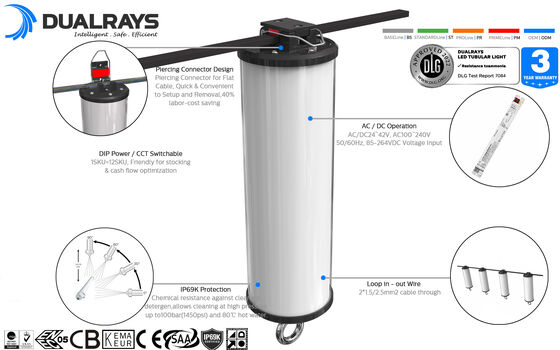

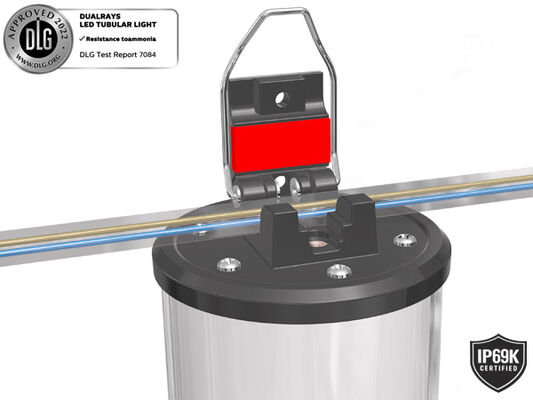

- Innovative knob design end-cap for quick and convenient access to wiring
- IP69K PMMA IK06 Anti-ammonia/UV or PC IK10 Anti-UV Protection
- Multiple beam angles: 120°/200°/280° optional

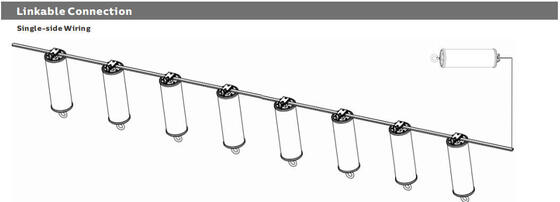

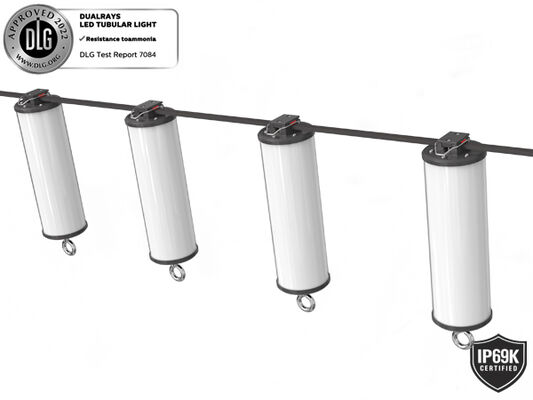

- Single or double wiring linkable configurations
- Versatile installation options: Suspension, Wall Mounting, Magnetic Holder
- Advanced control systems: 1-10V, DALI, Motion sensor, Daylight sensor, Zigbee, and Emergency functions
- Three CCT options available (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K)
- Single Phase (L/N/E) or Three Phase (L1/L2/L3/N/FG) wiring
- Environmentally friendly: No UV or IR emissions, completely mercury-free
- Long lifespan: L80/B10 @ 65,000 hours
- Customization support for special project requirements
Available Options
- Driver: TRIDONIC / BOKE Non-SELV driver with DIP technology
- Three CCT configurations (A: 3000-4000-5000K; B: 3000-4500-6000K; C: 4000-5000-6000K)
- DIP Switchable Power adjustment
- Control and Dimming: 1-10V, DALI, Motion sensor, Daylight sensor, Zigbee, and Emergency functions
- Beam angles: 120°/200°/280° optional

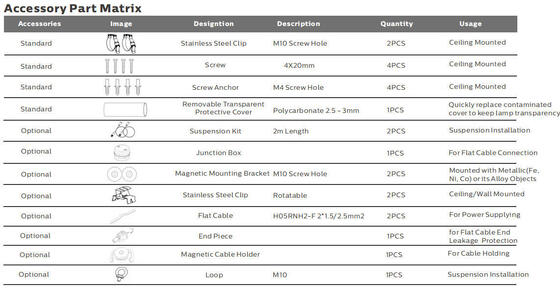

- Installation methods: Suspension, Wall Mounting, Magnetic Holder
- Material choices: PC or PMMA options
Application Areas
- Special military operations and training camps
- War and civil shelters
- Temporary settlements, campfires, and tents
- Storage facilities below or above ground
- Rescue operations and emergency response
- Outer and inner areas without existing lighting infrastructure
Technical Specifications
General System
| Parameter |
Specification |
| Housing Material |
Extruded PC/PMMA according to UNE-EN ISO 21305-1:2020 standard |
| Diffuser Material |
Extruded PC/PMMA according to UNE-EN ISO 21305-1:2020 standard |
| Housing Color |
White (RAL9016), other colors optional |
| Sealing Gaskets |
Silicone foam |
| LEDs Thermal Dissipation |
Through finless 6063 AL luminaire body with passive convection |
| Anti-condensation |
Pressure-balancing valve for moisture release and IP tightness |
| Finish |
Electrostatically sprayed and sublimated, corrosion resistant |
| Recommended Mounted Height |
2 - 8 meters |
| Maintenance |
Quick screw-top end-cap for easy installation |
| Driver |
Constant current with optional power adjustable via DIP switch |
| Dimming Control |
ON-OFF | 1-10V dimming | DALI-2 | Mesh | Zigbee | Casambi |
| IP Rating |
IP67 / IP69K |
| IK Rating |
IK10 |
| Protective Class |
Class I |
| Glow Wire |
850°C (Under 30s) |
| Cable Gland |
M20 cable gland (Nylon or SS304/316 Optional) |
| Installation |
Ceiling mounted | Suspension | Magnetic Mounted | Rotatable Wall Mounted |
| Smart Function |
PIR Sensor | Microwave Sensor | Emergency |
Electrical System
| Parameter |
Specification |
| Through-wiring |
3*1.5mm² | 5*1.5mm² | 3*2.5mm² | 5*2.5mm² wires through for option |
| Main Voltage |
AC/DC24-42V, AC100~240V,50/60Hz, 85-265VDC |
| Power Factor (PF) |
≥0.97 |
| Total Harmonic Distortion (THD) |
＜10% |
| Output Type |
Non-SELV (non-isolated) |
| Flicker Factor |
＜1% |
| Stroboscopic Visibility Measure (SVM) |
＜0.4 |
| Perceptibility of Stroboscopic Effects (Pst) |
＜1 |
| Terminal Connection |
Quick screw-top end-cap for easy wiring |

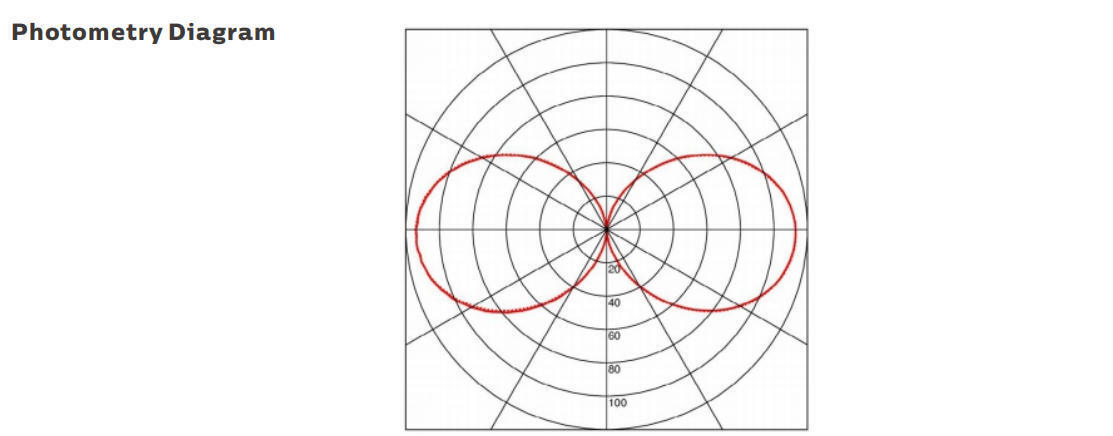

Photometry System
| Parameter |
Specification |
| LEDs |
SMD2835 (1W) |
| CCT (Correlated Color Temperature) |
Single CCT (3000K | 4000K | 5000K | 5700K | 6500K) |
| CRI (Color Rendering Index) |
>80Ra for standard (>90Ra for higher CRI available) |
| Photobiological Safety |
RG0 (exempt of risk) |
| EEC (Energy Efficiency Class) |
A++ |
| SDCM (Standard Deviation of Color Matching) |
＜5 (SDCM<3 Optional) |
| UGR (4H, 8H) |
24.9 (Cross) 23.4 (Longitudinal) |
| Beam Angle |
120° | 280° | 360° Optional |
| Average Luminaire Useful Lifetime |
63,000 hours (L80B10) |
| Lumen Maintenance at e.o.l. |
>70% |
| Luminous Efficacy |
130LPW (PROLine) | 160LPW (PRIMELine) Optional |
Operation Conditions
| Parameter |
Specification |
| Operation Temperature / Humidity |
-20~ +60℃ (-4°F ~ 140°F) / 5~85% RH, not condensed |
| Storage Temperature / Humidity |
-40~ +80℃ (-40°F ~ 176°F) / 5~85% RH, not condensed |
| Average LED Useful Time L90B10 |
≥0.96 |
| Rated Nominal Lifetime (Tp <70℃) |
Up to 100,000H |
| Driver MTBF |
500,000H, MIL-HDBK-217F(25℃) |
| Vibration Resistant |
10~500Hz, 5G 12min / 1cycle, period for 72min. Each along X,Y,Z axes |
| Acoustic Noise |
＜25dB (30cm distance, Normal operation) |
| Guarantee |
5 Years (Extensible up to 7 years) |
Certifications
Global Certificate: ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium
Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471
EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384
Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN 6272-2-1 | EN 61643-11
Important Installation Instructions
To avoid electric shock, please ensure that the power supply is turned off before installation.
The lamp should be installed and operated by a qualified electrician or technician in accordance with the National Electrical Code and corresponding local codes.
Unpack and examine the lamp carefully, report any damage and save all packing materials if any portion of the product was damaged during transportation.
If the lamp is damaged, do not use it!
Company Advantages
- Professional team: Over 15 years experience, own factory, more than 10 engineers team
- Powerful production capacity and QC management system
- Reliable brand with stable long-term cooperation with European customers
- Warehouse in Netherlands for better service and support
- DIALux simulation services available for custom applications
- All LED luminaries comply with CE, RoHS standards
- TUV, ENEC, VDE, SAA, C-Tick, LM79, LM80 listed for leading products
