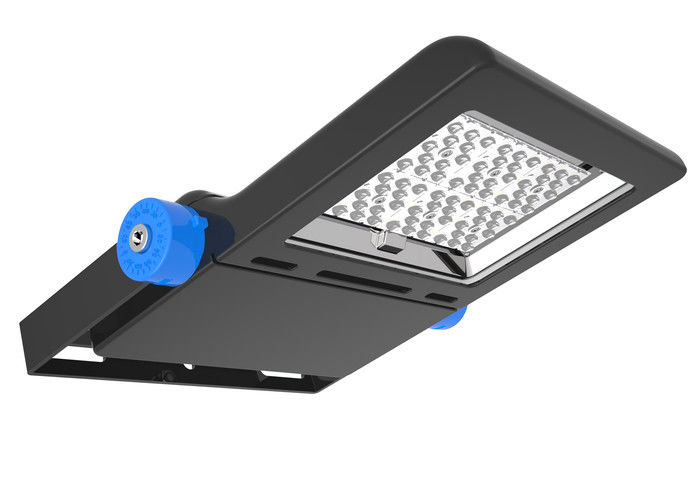

200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030

200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030

  • 200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030
  • 200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030
200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030
Product Details:
Place of Origin: Shenzhen,China
Brand Name: DUALRAYS
Certification: CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number: DR-FL200-CG1
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: Competitive Price in Our European Warehouse
Packaging Details: Netural Package/OEM and ODM Package Available
Delivery Time: 5-15 Bussiness Day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/Month
Contact Now
Detailed Product Description
CRI: >80 Power: 200
IP Ranking: IP66 Working Temp: -40 To +50℃
Installation: Suspended/Bracket Driver: Meanwell
High Light:

led flat panel light fixture

,

wireless led outdoor flood lights

200W LED FLood lighting 5 years warranty for Parking

200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030 0



200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030 1

> Precision Integrated Die-casting ADC12 AL,Excellent Thermal Conductivity;
> High Brightness LUMILEDS LUXEON SMD3030 2D LEDs, SOSEN/Meanwell ELG/HLG Driver;
> Built-in Plug and Play Motion Sensor with Compact Structure;
> IP65 / IK10 Protection;
> Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional;
> Surface Electrostatic Spraying Finish,Oxidation/Corrosion/Acid Resistant;
> D-Mark tested for the use in paper production,wood processing etc with toughened glass;
> 4mm Thickness Toughened Glass for Double Protection and Self-clean;
> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;
> Various intelligent control: 1-10V, DALI,PWM,Zigbee for Option;
> Adjustable Supporting Fixture;

200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030 2

Model No.
DR-FL050-CGXX DR-FL100-CGXX DR-FL150-CGXX DR-FL200-CGXX DR-FL300-CGXX
System Watts/W
50W 100W 150W 200W
300W
System Efficiency/LPW
120~125LPW
Lumen Output/lm
6.500±5% 12.500±5% 18.750±5% 25.000±5% 37.500±5%
Rated Input Voltage/V
AC200~240V, 50/60Hz /(AC100~277V, 50/60Hz Optional)
LEDs Light Source
SMD3030
SDCM
<5
CCT/K
5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra
>70Ra (>80Ra for Option)
Power Factor
>0.95
THD
<10%
Beam Angle(Optional)
Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR
<25
Surge Protection
6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver
Sosen,Meanwell ELG / HLG Optional
IP Rating
IP65
Dimming(Optional)
1-10V, DALI,PWM,Zigbee for Option
Safety Protection Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional) Motion Sensor
Protection Class
ClassⅠ
Finishing Color(Optional)
Black RAL9017(Standard) / White RAL9016 Optional
Material
Aluminum+Toughened Glass
Lifespan/hrs
62.000 Hrs (Ta=30℃@L70)
Operation Temp/℃
40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃
- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles 100,000 Times
Certificate
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available


200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030 3

Character/Power
100W
150W
200W
240W
300W
200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030 4
A / mm
389
389
437
493
582
B / mm
297
297
346
379
444
C / mm
57
57
57
57
60

200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030 5
200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030 6
200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030 7
200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030 8200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030 9
200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030 10

200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030 11

200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030 12

200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030 13

200W LED FLood Lighting 5 Years Warranty For Parking IP65 / IK10 Protection SMD3030 14
