Dualrays D2 Series 50W 5ft Slim LED Tri Proof Light 160LmW Full Plastic Batten IP65 for Parking Lot

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	DUALRAYS
Certification:	CE,RoHS,LM79,LM80,TUV/GS,SAA,RCM,CB and D-Mark Available
Model Number:	DR-TPL050-BG5XX

Payment & Shipping Terms:

Minimum Order Quantity:	8pcs
Price:	Negotiated
Packaging Details:	Netural Package/OEM and ODM Package Available
Delivery Time:	5-15 business days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	100000PCS/Month

Contact Now

Detailed Product Description

Rated Power:	50W	LEDs Typ/Qty:	SMD2835 312pcs
Lumen Maintenance @ 6000 Hrs:	>90%	Switching Cycle Before Failure:	100,000
Warranty:	5 Years	Power Supply:	DUALRAYS Own-developed Flicker-free Driver,BOKE DIP Switch Power Adjustable Driver
High Light:	explosion proof led lights , vapor proof led light

Dualrays D2 Series 50W 5ft Slim LED Tri Proof Light 160LmW Full Plastic Batten IP65 for Parking Lot

Dualrays D2 Series 50W 5ft Slim LED Tri Proof Light 160LmW Full Plastic Batten IP65 for Parking Lot 0

Dualrays D2 Series 50W LED Tri Proof Light-- Detailed Product Description

Efficiency:	150LPW	Protection:	IP65, IK10
Dimming Function:	DALI	Driver:	BOKE
Junction Temperature:	<80℃	CCT/K:	3000/4000/5000/5700K
LEDs Typ:	SMD2835	Warranty:	5 Years

Dualrays D2 Series 50W LED Tri Proof Light-- Features:
> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;

> 1-10V dimming flicker-free driver;

> Single or Double wiring;

> IP66 and IK10 for all industrial areas of application;

> Eco full plastic light design,save your cost and freight;

> Multiple Link with double wiring;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> No toxic heavy metals, VOC, or mercury were used in the design;

> 5 years warranty;

Dualrays D2 Series 50W LED Tri Proof Light-- Options:

> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.

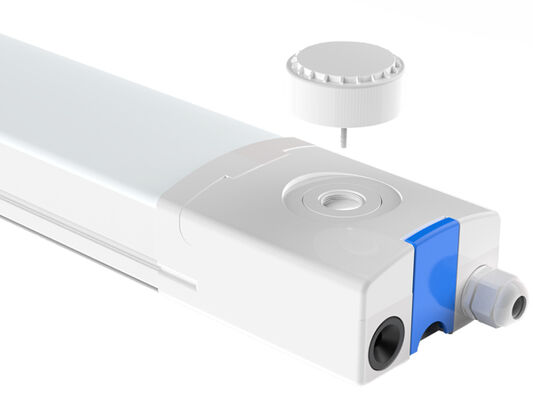

> Controls and Dimming: Zigbee wireless control / 1-10V Dimming / Daylight sensor,microwave sensor,CCTadjustable,emergency.

> Plug : European / Australia plug with 0.75mm2/1.5mm2/2.5mm2 3-pins or 5-pins (dimming) cable optional.

> Suspended/Surface mounted/Adjustable installation for option.
> Single or double wiring and connection.

> Customized supported for special projects.

* Replacement for fluorescent NCF

* Workshops and warehouse

* Garage and car parks

* Sport facility

* Corridor/Gallery/Corridor

* Outdoor & Indoor Locations

Dualrays D2 Series 50W 5ft Slim LED Tri Proof Light 160LmW Full Plastic Batten IP65 for Parking Lot 3

Dualrays D2 Series 50W 5ft Slim LED Tri Proof Light 160LmW Full Plastic Batten IP65 for Parking Lot 5

Character/Length	2ft	4ft	5ft
A	600mm	1200mm	1500mm
B	74mm	74mm	74mm
C	74m	74mm	74mm

Dualrays D2 Series 50W 5ft Slim LED Tri Proof Light 160LmW Full Plastic Batten IP65 for Parking Lot 7

Dualrays D2 Series 50W 5ft Slim LED Tri Proof Light 160LmW Full Plastic Batten IP65 for Parking Lot 9

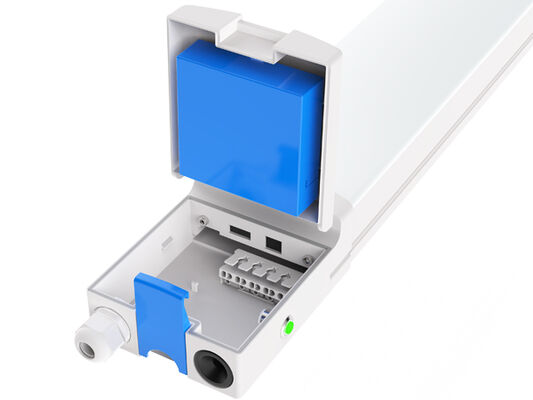

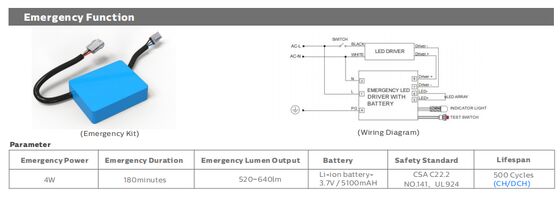

(I) Emergency Function

Model No.	Emergency Time (Hours)	Emergency Power (W)	Battery Parameters
DR-TPL020-BG21	3/2/1 hours for option	10W	7.4V/4400/3000/1500mAh Lithium Battery
DR-TPL040-BG41	3/2/1 hours for option	10W	11.1V/6000/4000/2000mAh Lithium Battery
DR-TPL050-BG51	3/2/1 hours for option	10W	11.1V/8800/6000/3000mAh Lithium Battery

DALI Device
Dualrays D2 Series 50W 5ft Slim LED Tri Proof Light 160LmW Full Plastic Batten IP65 for Parking Lot 16

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface

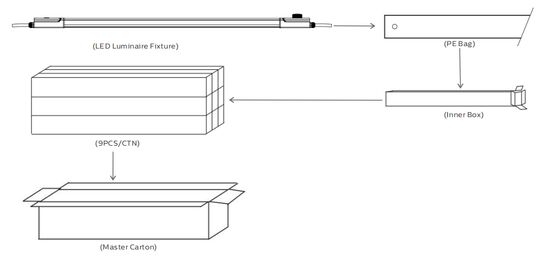

Packaging Information
